BL-33F0-0142

Obsolete

Lighting Science Group Corporation

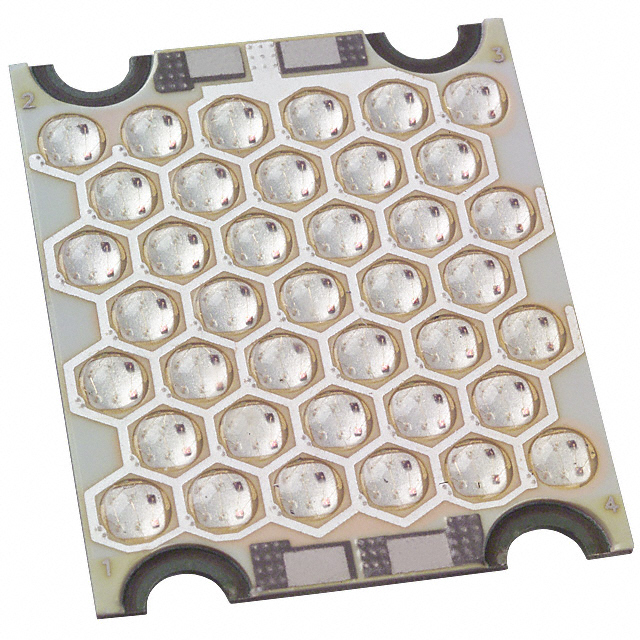

LED MOD BL-3000 RGB RECT SMD

Search across all available documentation for this part.

Obsolete

Lighting Science Group Corporation

LED MOD BL-3000 RGB RECT SMD

Technical Specifications

Parameters and characteristics for this part

Specification	BL-33F0-0142

Color	Red, Green, Blue
Configuration	Rectangle
Height [z]	2.29 mm
Lens Type	Domed
Luminous Flux @ Current/Temperature	145 lm
Luminous Flux @ Current/Temperature	114 lm
Luminous Flux @ Current/Temperature	47 lm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	26.67 mm
Type	LED Module
Voltage - Forward (Vf) (Typ)	7.2 V, 7.2 V, 4.8 V
Wavelength	624nm Red, 470nm Blue, 525nm Green

LED MOD BL-3000 RGB RECT SMD

Part	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Wavelength	Type	Height [z]	Configuration	Color	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature	Lens Type
Lighting Science Group Corporation BL-33F0-0142	4.8 V, 7.2 V, 7.2 V	26.67 mm	1.25 "	470nm Blue, 525nm Green, 624nm Red	LED Module	2.29 mm	Rectangle	Blue, Green, Red	145 lm	114 lm	47 lm	Domed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module BL-3000 Red, Green, Blue (RGB) Rectangle
