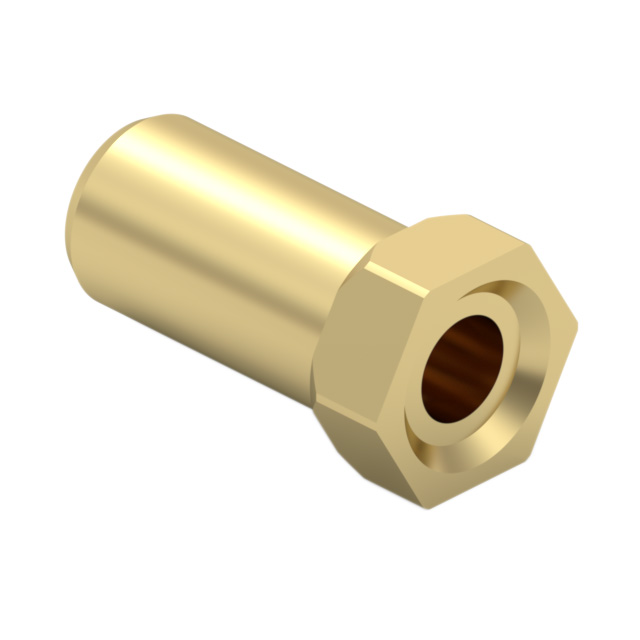

0627-0-15-15-21-27-10-0

Active

Mill-Max Manufacturing Corp.

ZERO PROFILE RECEPTACLE FOR LEAD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

ZERO PROFILE RECEPTACLE FOR LEAD

Technical Specifications

Parameters and characteristics for this part

Specification	0627-0-15-15-21-27-10-0

Accepts Pin Diameter [Max]	0.022 in
Accepts Pin Diameter [Max]	0.56 mm
Accepts Pin Diameter [Min]	0.38 mm
Accepts Pin Diameter [Min]	0.015 "
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.37 mm
Flange Diameter [diameter]	0.054 in
Length - Overall [x]	0.093 in
Length - Overall [x]	2.36 mm
Mounting Hole Diameter [diameter]	0.055 in
Mounting Hole Diameter [diameter]	1.4 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.79 mm
Pin Hole Diameter [diameter]	0.031 in
Socket Depth	2.01 mm
Socket Depth	0.079 in
Tail Type	No Tail
Termination	Press-Fit

Part	Length - Overall [x]	Length - Overall [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Tail Type	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Socket Depth	Socket Depth	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]
Mill-Max Manufacturing Corp. 0627-0-15-15-21-27-10-0	0.093 in	2.36 mm	-55 °C	125 °C	Gold	No Tail	0.38 mm	0.022 in	0.015 "	0.56 mm	Beryllium Copper	1.37 mm	0.054 in	Press-Fit	2.01 mm	0.079 in	0.79 mm	0.031 in	0.76 Ám	30 Áin	0.055 in	1.4 mm
Mill-Max Manufacturing Corp. 0627-0-15-15-11-27-10-0	0.093 in	2.36 mm	-55 °C	125 °C	Gold	No Tail					Beryllium Copper	1.37 mm	0.054 in	Press-Fit	2.01 mm	0.079 in	0.79 mm	0.031 in	0.76 Ám	30 Áin	0.055 in	1.4 mm	0.015 "	0.51 mm	0.02 "	0.38 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) No Tail Press-Fit
