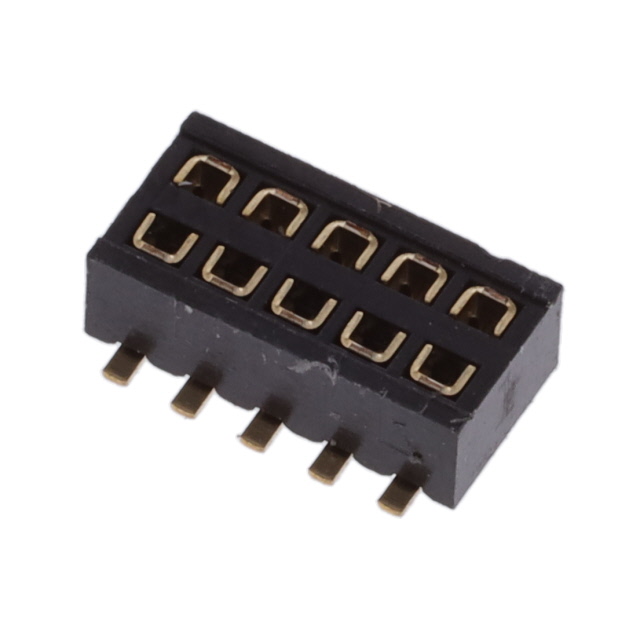

20021323-00010D1LF

Active

Amphenol ICC (FCI)

CONN RCPT 10POS 0.05 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

Documentsminitek127 productpresentation Other Related Document 10166143-00020C1LF +1

20021323-00010D1LF

Active

Amphenol ICC (FCI)

CONN RCPT 10POS 0.05 GOLD SMD

Deep-Dive with AI

Documentsminitek127 productpresentation Other Related Document 10166143-00020C1LF +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	20021323-00010D1LF

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Receptacle, Bottom Entry
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.087 "
Insulation Height	2.2 mm
Insulation Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder

20021323 Series

Part	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Features	Insulation Material	Connector Type	Contact Shape	Applications	Termination	Insulation Height	Insulation Height	Mounting Type	Number of Positions	Contact Material	Fastening Type	Contact Type	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish Thickness - Mating
Amphenol ICC (FCI) 20021323-00016C4LF	0.05 in	1.27 mm	All	Black	10 çin	0.25 çm	2	UL94 V-0	0.05 in	1.27 mm	Pick and Place	Plastic	Receptacle Bottom Entry	Square	General Purpose Industrial Telecommunications	Solder	0.087 "	2.2 mm	Surface Mount	16	Copper Alloy	Push-Pull	Female Socket	Gold	-40 °C	105 ░C
Amphenol ICC (FCI) 20021323-00036C8LF	0.05 in	1.27 mm	All	Black	30 Áin	0.76 Ám	2	UL94 V-0	0.05 in	1.27 mm	Pick and Place	Plastic	Receptacle Bottom Entry	Square	General Purpose Industrial Telecommunications	Solder	0.087 "	2.2 mm	Surface Mount		Copper Alloy	Push-Pull	Female Socket	Gold	-40 °C	105 ░C	36
Amphenol ICC (FCI) 20021323-00016D1LF	0.05 in	1.27 mm	All	Black			2	UL94 V-0	0.05 in	1.27 mm	Pick and Place	Plastic	Receptacle Bottom Entry	Square	General Purpose Industrial Telecommunications	Solder	0.087 "	2.2 mm	Surface Mount	16	Copper Alloy	Push-Pull	Female Socket	Gold	-40 °C	105 ░C		Flash
Amphenol ICC (FCI) 20021323-00010D1LF	0.05 in	1.27 mm	All	Black			2	UL94 V-0	0.05 in	1.27 mm	Pick and Place	Plastic	Receptacle Bottom Entry	Square	General Purpose Industrial Telecommunications	Solder	0.087 "	2.2 mm	Surface Mount		Copper Alloy	Push-Pull	Female Socket	Gold	-40 °C	105 ░C	10	Flash
Amphenol ICC (FCI) 20021323-00006C4LF	0.05 in	1.27 mm	All	Black	10 çin	0.25 çm	2	UL94 V-0	0.05 in	1.27 mm	Pick and Place	Plastic	Receptacle Bottom Entry	Square	General Purpose Industrial Telecommunications	Solder	0.087 "	2.2 mm	Surface Mount		Copper Alloy	Push-Pull	Female Socket	Gold	-40 °C	105 ░C	6
Amphenol ICC (FCI) 20021323-00020D4LF	0.05 in	1.27 mm	All	Black	10 çin	0.25 çm	2	UL94 V-0	0.05 in	1.27 mm	Pick and Place	Plastic	Receptacle Bottom Entry	Square	General Purpose Industrial Telecommunications	Solder	0.087 "	2.2 mm	Surface Mount		Copper Alloy	Push-Pull	Female Socket	Gold	-40 °C	105 ░C	20
Amphenol ICC (FCI) 20021323-10060D4LF	0.05 in	1.27 mm	All	Black	10 çin	0.25 çm	2	UL94 V-0	0.05 in	1.27 mm	Board Guide Pick and Place	Plastic	Receptacle Bottom Entry	Square	General Purpose Industrial Telecommunications	Solder	0.087 "	2.2 mm	Surface Mount		Copper Alloy	Push-Pull	Female Socket	Gold	-40 °C	105 ░C	60
Amphenol ICC (FCI) 20021323-00010T1LF	0.05 in	1.27 mm	All	Black			2	UL94 V-0	0.05 in	1.27 mm		Plastic	Receptacle Bottom Entry	Square	General Purpose Industrial Telecommunications	Solder	0.087 "	2.2 mm	Surface Mount		Copper Alloy	Push-Pull	Female Socket	Gold	-40 °C	105 ░C	10	Flash
Amphenol ICC (FCI) 20021323-10012D4LF	0.05 in	1.27 mm	All	Black	10 çin	0.25 çm	2	UL94 V-0	0.05 in	1.27 mm	Board Guide Pick and Place	Plastic	Receptacle Bottom Entry	Square	General Purpose Industrial Telecommunications	Solder	0.087 "	2.2 mm	Surface Mount		Copper Alloy	Push-Pull	Female Socket	Gold	-40 °C	105 ░C	12
Amphenol ICC (FCI) 20021323-10020C1LF	0.05 in	1.27 mm	All	Black			2	UL94 V-0	0.05 in	1.27 mm	Board Guide Pick and Place	Plastic	Receptacle Bottom Entry	Square	General Purpose Industrial Telecommunications	Solder	0.087 "	2.2 mm	Surface Mount		Copper Alloy	Push-Pull	Female Socket	Gold	-40 °C	105 ░C	20	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.49
		10	$ 1.14
		100	$ 0.87
		500	$ 0.73
		1000	$ 0.68
		5000	$ 0.58
		10000	$ 0.54

Description

General part information

20021323 Series

10 Position Receptacle, Bottom Entry Connector 0.050" (1.27mm) Surface Mount Gold
