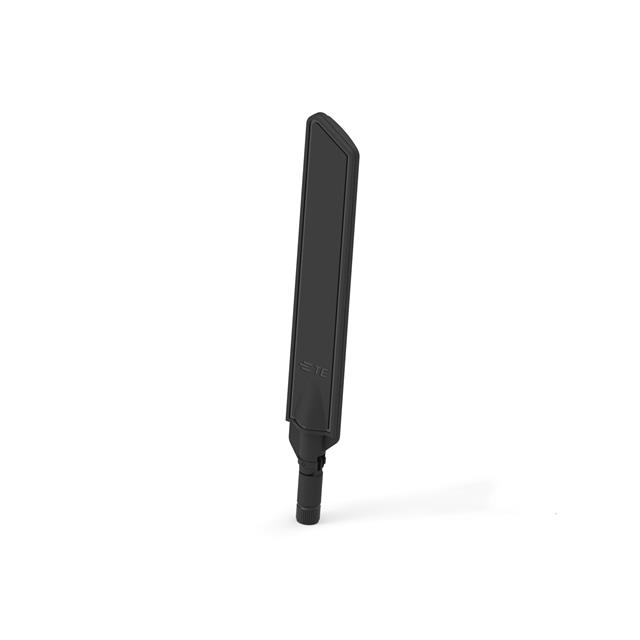

DBA6171C3-BSMAM
ActiveTE Connectivity Raychem Cable Protection
DIPOL,SMAM,SWIVEL,617-7125MHZ,OUTDOOR TE
Deep-Dive with AI
Search across all available documentation for this part.
DBA6171C3-BSMAM
ActiveTE Connectivity Raychem Cable Protection
DIPOL,SMAM,SWIVEL,617-7125MHZ,OUTDOOR TE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DBA6171C3-BSMAM |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | LTE, 5G, 4G |
| Frequency (Center/Band) | 657.5 MHz, 829 MHz, 5.575 GHz, 1.955 GHz, 1.516 GHz, 2.5 GHz, 3.75 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 1.606 GHz, 960 MHz, 6 GHz, 2.2 GHz, 698 MHz, 2.7 GHz, 4.2 GHz |
| Frequency Range [Min] | 1.427 GHz, 698 MHz, 3.3 GHz, 1.71 GHz, 5.15 GHz, 617 MHz, 2.3 GHz |
| Gain | 3.9 dBi, 2.1 dBi, 4.4 dBi, 1 dBi, 0 dBi |
| Height (Max) [Max] | 7.283 in |
| Height (Max) [Max] | 185 mm |
| Ingress Protection | IP67 |
| Mounting Type | Connector Mount |
| Number of Bands | 7 |
| Power - Max [Max] | 5 W |
| RF Family/Standard | Cellular |
| VSWR | 2, 2.5, 2.3, 3.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 20.02 | |
| 10 | $ 18.46 | |||
| 25 | $ 17.63 | |||
| 100 | $ 15.77 | |||
| 250 | $ 15.04 | |||
| 500 | $ 14.31 | |||
Description
General part information
DBA6171 Series
Terminal/Duck Antenna, Wide Band, Cat-M/NB-IoT / Cellular, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Single Port
