3005073

Active

Phoenix Contact

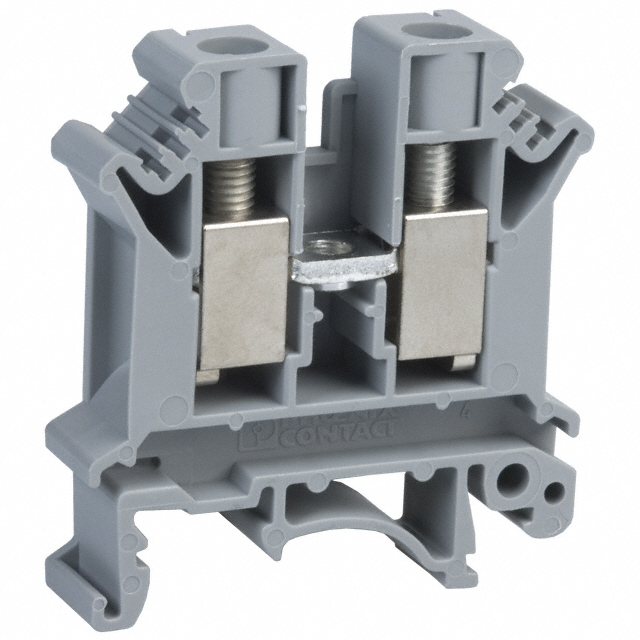

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 6 AWG, 16 MM², SCREW, 57 A

Search across all available documentation for this part.

Active

Phoenix Contact

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 6 AWG, 16 MM², SCREW, 57 A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3005073	UK Series

Color	Gray	Blue, Gray
Current - IEC	57 A	16 - 57 A
Current - UL	65 A	20 - 65 A
Disconnect Type	-	Switch, Knife
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0	UL94 V-2, UL94 V-0
Number of Levels	1	1
Number of Positions	2	2
Stripping Length	10 mm	7 - 10 mm
Terminal - Width [y]	10.2 mm	5.2 - 10.2 mm
Termination Style	Screw	Screw
Type	Feed Through	Feed Through, Disconnect
Voltage - IEC	800 V	400 - 800 V
Voltage - UL	600 V	600 V
Voltage - UL	-	150 - 300 V
Wire Gauge or Range - AWG [Max]	24 AWG	20 - 30 AWG
Wire Gauge or Range - AWG [Min]	6 AWG	6 - 12 AWG
Wire Gauge or Range - mm² [Max]	16 mm²	2.5 - 16 mm²
Wire Gauge or Range - mm² [Min]	0.5 mm²	0.2 - 0.5 mm²

DIN Rail Terminal Blocks UK 2 5 N OG

Part	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Current - UL	Termination Style	Type	Terminal - Width [y]	Stripping Length	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Material Flammability Rating	Current - IEC	Number of Positions	Number of Levels	Voltage - IEC	Material - Insulation	Voltage - UL [custom]	Color	Voltage - UL	Disconnect Type
Phoenix Contact 3026780	30 AWG	12 AWG	20 A	Screw	Feed Through	5.2 mm	7 mm	0.2 mm²	4 mm²	UL94 V-2	24 A	2	1	800 V	Nylon, Polyamide (PA)	300 V
Phoenix Contact 3002416	30 AWG	12 AWG	20 A	Screw	Feed Through	5.2 mm	8 mm	0.2 mm²	2.5 mm²	UL94 V-0	24 A		1	400 V	Nylon, Polyamide (PA)	150 V	Blue
Phoenix Contact 3005073	24 AWG	6 AWG	65 A	Screw	Feed Through	10.2 mm	10 mm	0.5 mm²	16 mm²	UL94 V-0	57 A	2	1	800 V	Nylon, Polyamide (PA)		Gray	600 V
Phoenix Contact 3003017	28 AWG	12 AWG	20 A	Screw	Feed Through	6.2 mm	8 mm	0.2 mm²	4 mm²	UL94 V-2	32 A	2	1	800 V	Nylon, Polyamide (PA)		Gray	600 V
Phoenix Contact 3000563	20 AWG	10 AWG		Screw	Disconnect	6.2 mm	8 mm	0.2 mm²	6 mm²	UL94 V-0	16 A	2	1	500 V	Nylon, Polyamide (PA)		Gray	600 V	Knife, Switch
