IO-XLR5-F-EH

Active

IO Audio Technologies

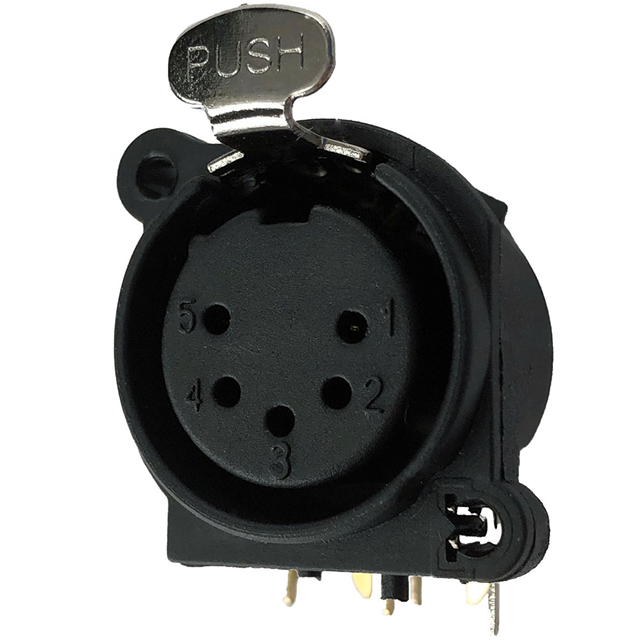

XLR CONNECTOR, R/A, 5 CONTACTS, JACK, PANEL PCB MOUNT, GOLD PLATED CONTACTS, NYLON (POLYAMIDE) BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

IO-XLR5-F-EH

Active

IO Audio Technologies

XLR CONNECTOR, R/A, 5 CONTACTS, JACK, PANEL PCB MOUNT, GOLD PLATED CONTACTS, NYLON (POLYAMIDE) BODY

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.60
		10	$ 3.52
		25	$ 3.17
		50	$ 2.94
		100	$ 2.72
		250	$ 2.47
		500	$ 2.30
		1000	$ 2.14
		2500	$ 1.96
Newark	Each	25	$ 2.64
		50	$ 2.48
		100	$ 2.22
		250	$ 2.19
		500	$ 2.06
		1000	$ 2.01

Description

General part information

IO-XLR5 Series

5 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Specification	IO-XLR5-F-EH	IO-XLR5 Series

Applications	Audio, Video, Lighting Control, Medical	Audio, Video, Lighting Control, Medical, Audio, Lighting Control
Backshell Material, Plating	-	Zinc Die Cast
Color	Black	Silver, Black
Connector Type	Receptacle, Female Sockets	Receptacle, Male Pins, Receptacle, Female Sockets, Female Sockets, Plug
Contact Finish - Mating	Gold	Silver, Gold
Contact Finish Thickness - Mating	-	1.97 Áin
Contact Finish Thickness - Mating	-	0.05 Ám
Contact Material	Brass	Phosphor Bronze, Brass
Current Rating (Amps)	-	3 - 7.5 A
Fastening Type	Latch Lock	Latch Lock
Features	Board Lock, Ground, Board Guide	Ground, Board Lock, Board Guide, Strain Relief, Backshell
Insert Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA), Plastic
Material Flammability Rating	-	UL94 HB
Mounting Feature	Flange	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount, Free Hanging (In-Line)
Operating Temperature	-	-40 °C
Operating Temperature	-	70 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Metal, Plastic
Shell Finish	-	Nickel, Black
Shell Material	-	Zinc Die Cast
Shell Size - Insert	XLR	XLR
Shielding	Unshielded	Shielded, Unshielded
Termination	Solder	Solder
Voltage Rating	-	50 - 1500 VAC

Part

Current Rating (Amps)

Shielding

Mounting Feature

Features

Voltage Rating

Shell Material

Orientation

Contact Finish - Mating

Applications

Connector Type

Primary Material

Color

Fastening Type

Insert Material

Shell Finish

Contact Material

Shell Size - Insert

Mounting Type

Operating Temperature [Min]

Operating Temperature [Max]

Termination

Contact Finish Thickness - Mating

Material Flammability Rating

Backshell Material, Plating

IO Audio Technologies

IO-XLR5-M-JLX

7.5 A

Shielded

Flange

Ground

125 VAC

Zinc Die Cast

Keyed

Silver

Audio, Lighting Control, Medical, Video

Male Pins, Receptacle

Metal

Silver

Latch Lock

Nylon, Polyamide (PA)

Nickel

Phosphor Bronze

XLR

IO Audio Technologies

IO-XLR5-F-JLX

7.5 A

Shielded

Flange

Ground

125 VAC

Zinc Die Cast

Keyed

Silver

Audio, Lighting Control, Medical, Video

Receptacle, Female Sockets

Metal

Silver

Latch Lock

Nylon, Polyamide (PA)

Nickel

Phosphor Bronze

XLR

IO Audio Technologies

IO-XLR5-M-BH

3 A

Unshielded

Flange

Board Guide, Board Lock, Ground

50 VAC

Keyed

Gold

Audio, Lighting Control

Male Pins, Receptacle

Plastic

Black, Silver

Latch Lock

Nylon, Polyamide (PA)

Brass

XLR

Panel Mount, Right Angle, Through Hole

-40 °C

70 °C

Solder

1.97 Áin

0.05 Ám

UL94 HB

IO Audio Technologies

IO-XLR5-M-EV

Unshielded

Flange

Board Guide, Ground

Keyed

Gold

Audio, Lighting Control, Medical, Video

Male Pins, Receptacle

Plastic

Black

Latch Lock

Nylon, Polyamide (PA)

Brass

XLR

Panel Mount, Through Hole

Solder

IO Audio Technologies

IO-XLR5-F-BKAU

7.5 A

Unshielded

Backshell, Strain Relief

125 VAC

Zinc Die Cast

Gold

Audio, Lighting Control

Female Sockets, Plug

Metal

Black

Latch Lock

Plastic

Phosphor Bronze

XLR

Free Hanging (In-Line)

1.97 Áin

0.05 Ám

Zinc Die Cast

IO Audio Technologies

IO-XLR5-M-BK

7.5 A

Unshielded

Backshell, Strain Relief

1500 VAC

Zinc Die Cast

Silver

Audio

Male Pins, Receptacle

Metal

Black

Latch Lock

Phosphor Bronze

XLR

Free Hanging (In-Line)

Zinc Die Cast

IO Audio Technologies

IO-XLR5-F-BH

3 A

Unshielded

Flange

Board Guide, Board Lock, Ground

50 VAC

Keyed

Gold

Audio, Lighting Control

Receptacle, Female Sockets

Plastic

Black, Silver

Latch Lock

Nylon, Polyamide (PA)

Brass

XLR

Panel Mount, Right Angle, Through Hole

-40 °C

70 °C

Solder

1.97 Áin

0.05 Ám

UL94 HB

IO Audio Technologies

IO-XLR5-M-JL

7.5 A

Shielded

Flange

Ground

125 VAC

Zinc Die Cast

Keyed

Silver

Audio, Lighting Control, Medical, Video

Male Pins, Receptacle

Metal

Silver

Latch Lock

Nylon, Polyamide (PA)

Nickel

Phosphor Bronze

XLR

IO Audio Technologies

IO-XLR5-F-EV

Unshielded

Flange

Board Guide, Ground

Keyed

Gold

Audio, Lighting Control, Medical, Video

Receptacle, Female Sockets

Plastic

Black

Latch Lock

Nylon, Polyamide (PA)

Brass

XLR

Panel Mount, Through Hole

Solder

IO Audio Technologies

IO-XLR5-M-EH

Unshielded

Flange

Board Guide, Ground

Keyed

Gold

Audio, Lighting Control, Medical, Video

Male Pins, Receptacle

Plastic

Black

Latch Lock

Nylon, Polyamide (PA)

Brass

XLR

Panel Mount, Right Angle, Through Hole

Solder

Part	Current Rating (Amps)	Shielding	Mounting Feature	Features	Voltage Rating	Shell Material	Orientation	Contact Finish - Mating	Applications	Connector Type	Primary Material	Color	Fastening Type	Insert Material	Shell Finish	Contact Material	Shell Size - Insert	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Backshell Material, Plating
IO Audio Technologies IO-XLR5-M-JLX	7.5 A	Shielded	Flange	Ground	125 VAC	Zinc Die Cast	Keyed	Silver	Audio, Lighting Control, Medical, Video	Male Pins, Receptacle	Metal	Silver	Latch Lock	Nylon, Polyamide (PA)	Nickel	Phosphor Bronze	XLR
IO Audio Technologies IO-XLR5-F-JLX	7.5 A	Shielded	Flange	Ground	125 VAC	Zinc Die Cast	Keyed	Silver	Audio, Lighting Control, Medical, Video	Receptacle, Female Sockets	Metal	Silver	Latch Lock	Nylon, Polyamide (PA)	Nickel	Phosphor Bronze	XLR
IO Audio Technologies IO-XLR5-M-BH	3 A	Unshielded	Flange	Board Guide, Board Lock, Ground	50 VAC		Keyed	Gold	Audio, Lighting Control	Male Pins, Receptacle	Plastic	Black, Silver	Latch Lock	Nylon, Polyamide (PA)		Brass	XLR	Panel Mount, Right Angle, Through Hole	-40 °C	70 °C	Solder	1.97 Áin	0.05 Ám	UL94 HB
IO Audio Technologies IO-XLR5-M-EV		Unshielded	Flange	Board Guide, Ground			Keyed	Gold	Audio, Lighting Control, Medical, Video	Male Pins, Receptacle	Plastic	Black	Latch Lock	Nylon, Polyamide (PA)		Brass	XLR	Panel Mount, Through Hole			Solder
IO Audio Technologies IO-XLR5-F-BKAU	7.5 A	Unshielded		Backshell, Strain Relief	125 VAC	Zinc Die Cast		Gold	Audio, Lighting Control	Female Sockets, Plug	Metal	Black	Latch Lock	Plastic		Phosphor Bronze	XLR	Free Hanging (In-Line)				1.97 Áin	0.05 Ám		Zinc Die Cast
IO Audio Technologies IO-XLR5-M-BK	7.5 A	Unshielded		Backshell, Strain Relief	1500 VAC	Zinc Die Cast		Silver	Audio	Male Pins, Receptacle	Metal	Black	Latch Lock			Phosphor Bronze	XLR	Free Hanging (In-Line)							Zinc Die Cast
IO Audio Technologies IO-XLR5-F-BH	3 A	Unshielded	Flange	Board Guide, Board Lock, Ground	50 VAC		Keyed	Gold	Audio, Lighting Control	Receptacle, Female Sockets	Plastic	Black, Silver	Latch Lock	Nylon, Polyamide (PA)		Brass	XLR	Panel Mount, Right Angle, Through Hole	-40 °C	70 °C	Solder	1.97 Áin	0.05 Ám	UL94 HB
IO Audio Technologies IO-XLR5-M-JL	7.5 A	Shielded	Flange	Ground	125 VAC	Zinc Die Cast	Keyed	Silver	Audio, Lighting Control, Medical, Video	Male Pins, Receptacle	Metal	Silver	Latch Lock	Nylon, Polyamide (PA)	Nickel	Phosphor Bronze	XLR
IO Audio Technologies IO-XLR5-F-EV		Unshielded	Flange	Board Guide, Ground			Keyed	Gold	Audio, Lighting Control, Medical, Video	Receptacle, Female Sockets	Plastic	Black	Latch Lock	Nylon, Polyamide (PA)		Brass	XLR	Panel Mount, Through Hole			Solder
IO Audio Technologies IO-XLR5-M-EH		Unshielded	Flange	Board Guide, Ground			Keyed	Gold	Audio, Lighting Control, Medical, Video	Male Pins, Receptacle	Plastic	Black	Latch Lock	Nylon, Polyamide (PA)		Brass	XLR	Panel Mount, Right Angle, Through Hole			Solder
