AB-FC024BL-19700-XA1

Active

American Bright Optoelectronics Corporation

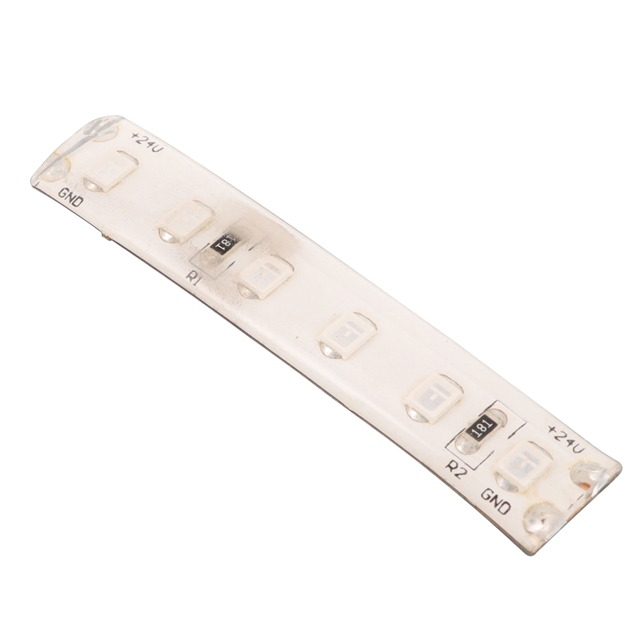

LED MOD AB-FC BLUE LNR STRIP

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED MOD AB-FC BLUE LNR STRIP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AB-FC024BL-19700-XA1	AB-FC024 Series

Color	Blue	UltraViolet, Blue
Configuration	Linear Light Strip, Flexible	Linear Light Strip, Flexible
Current - Max	-	4.16 A
Current - Test	660 mA	660 - 830 mA
Features	IP65	IP65
Height [z]	2.5 mm	2.5 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	90 lm/W	1.5 - 90 lm/W
Luminous Flux @ Current/Temperature	168 lm	15 - 168 lm
Size / Dimension	-	10 mm
Size / Dimension [x]	5000 mm	5000 mm
Type	LED Module	LED Module
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	24 V	24 V
Wavelength	470 nm	398 - 470 nm
Wavelength [Max]	475 nm	400 - 475 nm
Wavelength [Min]	465 nm	395 - 465 nm

LED MOD AB-FC UVA LNR STRP

Part	Color	Wavelength [Max]	Wavelength [Min]	Wavelength	Type	Configuration	Voltage - Forward (Vf) (Typ)	Features	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Current - Max [Max]	Lens Type	Luminous Flux @ Current/Temperature	Viewing Angle	Lumens/Watt @ Current - Test	Height [z]
American Bright Optoelectronics Corporation AB-FC024UA-19700-XA2	UltraViolet	400 nm	395 nm	398 nm	LED Module	Flexible, Linear Light Strip	24 V	IP65	5000 mm	10 mm	830 mA	4.16 A	Flat	15 lm	120 °	1.5 lm/W
American Bright Optoelectronics Corporation AB-FC024BL-19700-XA1	Blue	475 nm	465 nm	470 nm	LED Module	Flexible, Linear Light Strip	24 V	IP65	5000 mm		660 mA		Flat	168 lm	120 °	90 lm/W	2.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module AB-FC Blue Linear Light Strip, Flexible
