T2071064101-000

Active

TE Connectivity Raychem Cable Protection

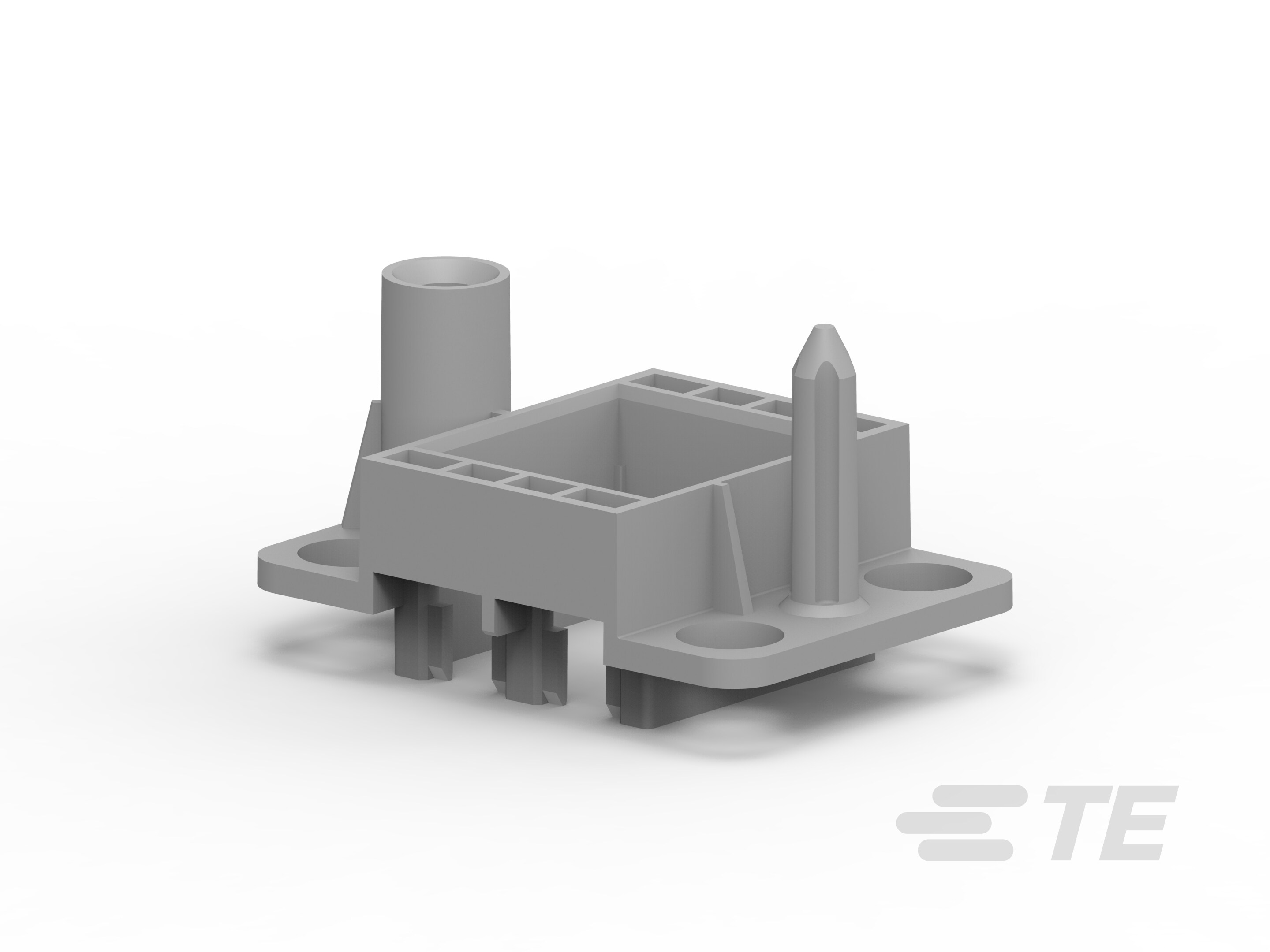

H6BP-T2-M DOCKING FRAME_FLOATING

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

H6BP-T2-M DOCKING FRAME_FLOATING

Technical Specifications

Parameters and characteristics for this part

Part	Frame Type	Material	Size	Gender	Includes	Number of Modules	Size	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket
TE Connectivity Raychem Cable Protection T2070164101-000	Carrier Shell Frame Docking	Zinc Alloy Die Cast	16 B	Male	1 Frame 4 Screws
TE Connectivity Raychem Cable Protection T2071064101-000	Carrier Shell Frame Docking	Polycarbonate (PC)		Male		2
TE Connectivity Raychem Cable Protection T2071164101-000	Carrier Shell Frame Docking	Polycarbonate (PC)	16 B	Non-Gendered
TE Connectivity Raychem Cable Protection T2070244001-000	Carrier Shell Frame Docking	Zinc Alloy Die Cast		Female Male	1 Frame 4 Screws	6	H24B
TE Connectivity Raychem Cable Protection T2071244201-000	Carrier Shell Frame Docking	Polycarbonate (PC)		Female		6
TE Connectivity Raychem Cable Protection T2070012033-000								Crimp	0.75 µm	29.5 µin	Gold	20 AWG	22 AWG	Socket
TE Connectivity Raychem Cable Protection T2070164201-000	Carrier Shell Frame Docking	Zinc Alloy Die Cast	16 B	Female	1 Frame 4 Screws
TE Connectivity Raychem Cable Protection T2070104201-000	Carrier Shell Frame Docking	Zinc Alloy Die Cast		Female	1 Frame 4 Screws		10B
TE Connectivity Raychem Cable Protection T2070011013-000								Crimp	0.75 µm	29.5 µin	Gold	22 AWG	26 AWG	Pin
TE Connectivity Raychem Cable Protection T2070064101-000	Carrier Shell Frame Docking	Zinc Alloy Die Cast		Male	1 Frame 4 Screws	2	6B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Module Male Heavy Duty Docking, Carrier Shell Frame Size
