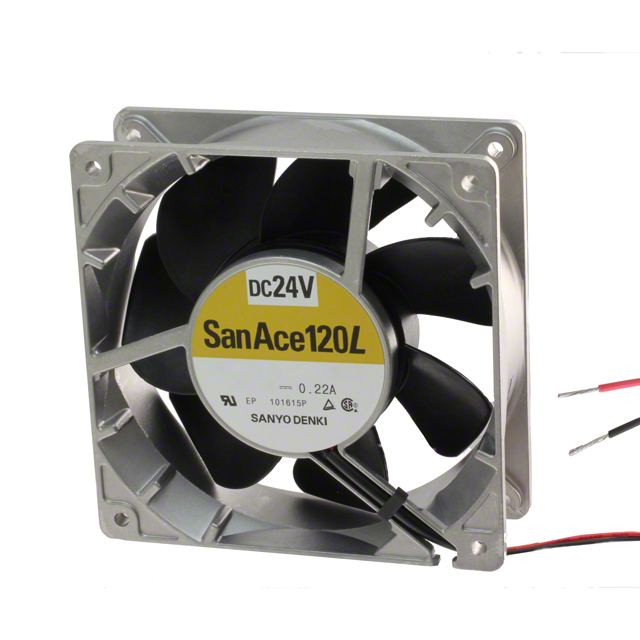

Specification	9GL1224H102

Air Flow	99 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating	0.22 A
Fan Type	Tubeaxial
Lifetime	100000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	39 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	-4 °F
Power (Watts)	5.28 W
RPM	2600 RPM
Size / Dimension Height	119 mm
Size / Dimension Length	119 mm
Size / Dimension Shape	Square
Static Pressure	0.283 in H2O
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Voltage Range (Max)	27.6 VDC
Voltage Range (Min)	14 VDC
Weight	0.816 lb
Width	38 mm

9GL1224 Series

Part	Approval Agency	Air Flow	Static Pressure	Operating Temperature (Min)	Operating Temperature (Max)	Noise	Power (Watts)	Width	Termination Leads Count	Termination Type	Termination	Voltage - Rated	Weight	RPM	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Fan Type	Features	Bearing Type	Lifetime	Current Rating	Voltage Range (Max)	Voltage Range (Min)	Material - Blade	Material - Frame
Sanyo Denki America Inc. 9GL1224F101	CSA TUV UL	87 CFM	0.218 in H2O	-4 °F	158 °F	36 dB	3.84 W	38 mm	3	Wire Leads	3 Wire Leads	24 VAC	0.816 lb	2280 RPM	119 mm	Square	119 mm	Tubeaxial	Speed Sensor (Tach)	Ball	100000 Hrs	160 mA	27.6 VDC	14 VDC	Plastic	Aluminum
Sanyo Denki America Inc. 9GL1224H102	CSA TUV UL	99 CFM	0.283 in H2O	-4 °F	158 °F	39 dB	5.28 W	38 mm	2 leads	Wire Leads	2 Wire Leads	24 VAC	0.816 lb	2600 RPM	119 mm	Square	119 mm	Tubeaxial		Ball	100000 Hrs	0.22 A	27.6 VDC	14 VDC	Plastic	Aluminum
Sanyo Denki America Inc. 9GL1224F102	CSA TUV UL	87 CFM	0.218 in H2O	-4 °F	158 °F	36 dB	3.84 W	38 mm	2 leads	Wire Leads	2 Wire Leads	24 VAC	0.816 lb	2280 RPM	119 mm	Square	119 mm	Tubeaxial		Ball	100000 Hrs	160 mA	27.6 VDC	14 VDC	Plastic	Aluminum
Sanyo Denki America Inc. 9GL1224F1D01	CSA TUV UL	87 CFM	0.218 in H2O	-4 °F	158 °F	36 dB	3.84 W	38 mm	3	Wire Leads	3 Wire Leads	24 VAC	0.816 lb	2280 RPM	119 mm	Square	119 mm	Tubeaxial	Locked Rotor Sensor	Ball	100000 Hrs	160 mA	27.6 VDC	14 VDC	Plastic	Aluminum
Sanyo Denki America Inc. 9GL1224E1D01	CSA TUV UL	118 CFM	0.401 in H2O	-4 °F	158 °F	46 dB	8.16 W	38 mm	3	Wire Leads	3 Wire Leads	24 VAC	0.816 lb	3100 RPM	119 mm	Square	119 mm	Tubeaxial	Locked Rotor Sensor	Ball	80000 Hrs	0.34 A	27.6 VDC	20.4 VDC	Plastic	Aluminum
Sanyo Denki America Inc. 9GL1224G1D01	CSA TUV UL	137 CFM	0.542 in H2O	-4 °F	158 °F	49 dB	12 W	38 mm	3	Wire Leads	3 Wire Leads	24 VAC	0.816 lb	3600 RPM	119 mm	Square	119 mm	Tubeaxial	Locked Rotor Sensor	Ball	80000 Hrs	0.5 A	27.6 VDC	20.4 VDC	Plastic	Aluminum
Sanyo Denki America Inc. 9GL1224M1D01	CSA TUV UL	74 CFM	0.159 in H2O	-4 °F	158 °F	32 dB	2.64 W	38 mm	3	Wire Leads	3 Wire Leads	24 VAC	0.816 lb	1950 RPM	120 mm	Square	120 mm	Tubeaxial	Locked Rotor Sensor	Ball	100000 Hrs	110 mA	27.6 VDC	14 VDC	Plastic	Aluminum
Sanyo Denki America Inc. 9GL1224M101	CSA TUV UL	74 CFM	0.159 in H2O	-4 °F	158 °F	32 dB	2.64 W	38 mm	3	Wire Leads	3 Wire Leads	24 VAC	0.816 lb	1950 RPM	119 mm	Square	119 mm	Tubeaxial	Speed Sensor (Tach)	Ball	100000 Hrs	110 mA	27.6 VDC	14 VDC	Plastic	Aluminum
Sanyo Denki America Inc. 9GL1224E102	CSA TUV UL	118 CFM	0.401 in H2O	-4 °F	158 °F	46 dB	8.16 W	38 mm	2 leads	Wire Leads	2 Wire Leads	24 VAC	0.816 lb	3100 RPM	119 mm	Square	119 mm	Tubeaxial		Ball	80000 Hrs	0.34 A	27.6 VDC	20.4 VDC	Plastic	Aluminum
Sanyo Denki America Inc. 9GL1224E101	CSA TUV UL	118 CFM	0.401 in H2O	-4 °F	158 °F	46 dB	8.16 W	38 mm	3	Wire Leads	3 Wire Leads	24 VAC	0.816 lb	3100 RPM	119 mm	Square	119 mm	Tubeaxial	Speed Sensor (Tach)	Ball	80000 Hrs	0.34 A	27.6 VDC	20.4 VDC	Plastic	Aluminum
