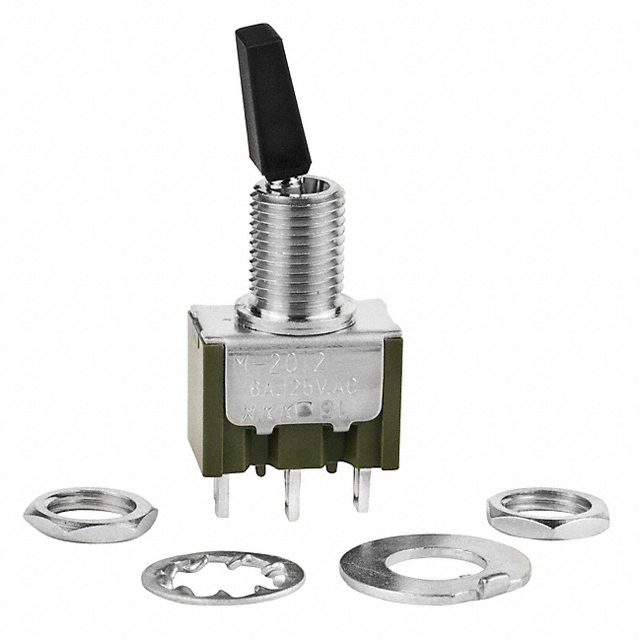

M2012K1S1W01-A

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2012K1S1W01-A

Actuator Length [x]	9.4 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Type	Snap On Paddle
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Features	Black Cap
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Termination Style	Voltage Rating - DC	Features	Bushing Thread	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Length [x]	Circuit	Electrical Life	Voltage Rating - AC	Actuator Type	Illumination	Actuator Material	Switch Function
NKK Switches M2012K1S1W01-A	4 A 6 A	6.5 mm	Solder Lug	30 V	Black Cap	1/4-40	-30 ░C	85 °C	9.4 mm	SPDT	25000 Steps	125 V	Snap On Paddle	Non-Illuminated	Nylon Polyamide (PA)	On-On
NKK Switches M2012K1S1W01-G	4 A 6 A	6.5 mm	Solder Lug	30 V	Blue Cap	1/4-40	-30 ░C	85 °C	9.4 mm	SPDT	25000 Steps	125 V	Snap On Paddle	Non-Illuminated	Nylon Polyamide (PA)	On-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount

Technical documentation and resources
