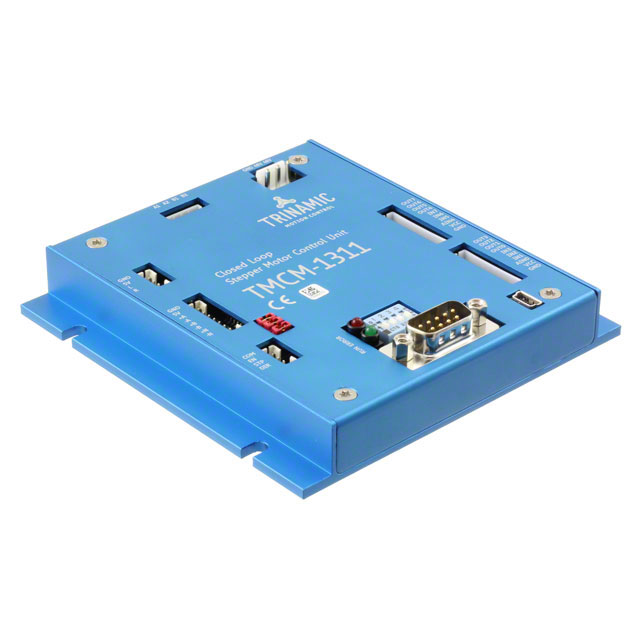

TMCM-1311
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 3A 10-52.5V LOAD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMCM-1311
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 3A 10-52.5V LOAD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCM-1311 | TMCM-1311 Series |
|---|---|---|
| Accessory Type | - | Cable Assembly |
| Control / Drive Type | Bipolar, Stepper | Bipolar, Stepper |
| Current - Output | 3 A | 3 A |
| For Use With/Related Products | - | TMCM-1311 Series |
| Interface | CAN, USB, RS-485 | CAN, USB, RS-485 |
| Motor Type | Stepper | Stepper |
| Mounting Type | Chassis Mount | Chassis Mount |
| Type | Board | Board |
| Usage | - | Motor |
| Voltage - Load [Max] | 52.5 V | 52.5 V |
| Voltage - Load [Min] | 10 V | 10 V |
| Voltage - Supply [Max] | 52.5 V | 52.5 V |
| Voltage - Supply [Min] | 10 VDC | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 288.44 | |
TMCM-1311 Series
STEPPER DRIVER 3A 10-52.5V LOAD
| Part | Current - Output | Type | Voltage - Load [Max] | Voltage - Load [Min] | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Motor Type | Control / Drive Type | Interface | Usage | For Use With/Related Products | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-1311 | 3 A | Board | 52.5 V | 10 V | Chassis Mount | 52.5 V | 10 VDC | Stepper | Bipolar, Stepper | CAN, RS-485, USB | |||
Analog Devices Inc./Maxim Integrated TMCM-1311-CABLE | Motor | TMCM-1311 Series | Cable Assembly |
Description
General part information
TMCM-1311 Series
Stepper, Bipolar 10 ~ 52.5VDC Supply 3A 10 ~ 52.5V Load
