3282-8SG-521

Active

Conxall/Switchcraft

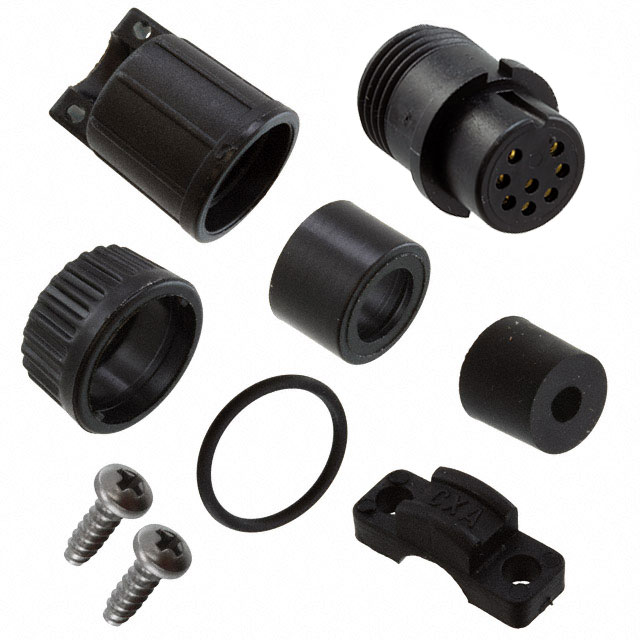

CONN PLUG FMALE 8P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMulti-Con-X Connectors Datasheet

3282-8SG-521

Active

Conxall/Switchcraft

CONN PLUG FMALE 8P GOLD SLDR CUP

Deep-Dive with AI

DocumentsMulti-Con-X Connectors Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3282-8SG-521	3282-8S Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	8.13 mm
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening [Max] [diameter]	5.84 mm	5.84 - 7.37 mm
Cable Opening [Max] [diameter]	0.23 in	0.23 - 0.32 in
Cable Opening [Min] [diameter]	5.33 mm	5.33 - 7.62 mm
Cable Opening [Min] [diameter]	0.21 in	0.21 - 0.3 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	5.6 A	5.6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	8	8
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

3282-8S Series

CONN PLUG FMALE 8P GOLD SLDR CUP

Part	Color	Contact Finish - Mating	Shielding	Current Rating (Amps)	Primary Material	Backshell Material, Plating	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Features	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Number of Positions	Fastening Type	Mounting Type	Connector Type	Voltage Rating	Contact Material	Orientation	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 3282-8SG-318	Black	Gold	Unshielded	5.6 A	Plastic	Nylon, Polyamide (PA)	Weathertight	-40 °C	115 °C	Backshell	4.57 mm	0.18 in	0.2 in	5.08 mm	8	Bayonet Lock	Free Hanging (In-Line)	Female Sockets, Plug	600 V	Brass	Keyed
Conxall/Switchcraft 3282-8SG-530	Black	Gold	Unshielded	5.6 A	Plastic	Nylon, Polyamide (PA)	Weathertight	-40 °C	115 °C	Backshell, Cable Clamp					8	Bayonet Lock	Free Hanging (In-Line)	Female Sockets, Plug	600 V	Brass	Keyed	7.62 mm	0.32 in	8.13 mm	0.3 in
Conxall/Switchcraft 3282-8SG-528	Black	Gold	Unshielded	5.6 A	Plastic	Nylon, Polyamide (PA)	Weathertight	-40 °C	115 °C	Backshell, Cable Clamp					8	Bayonet Lock	Free Hanging (In-Line)	Female Sockets, Plug	600 V	Brass	Keyed	7.11 mm	0.29 in		0.28 in	7.37 mm
Conxall/Switchcraft 3282-8SG-315	Black	Gold	Unshielded	5.6 A	Plastic	Nylon, Polyamide (PA)	Weathertight	-40 °C	115 °C	Backshell					8	Bayonet Lock	Free Hanging (In-Line)	Female Sockets, Plug	600 V	Brass	Keyed						0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3282-8SG-518	Black	Gold	Unshielded	5.6 A	Plastic	Nylon, Polyamide (PA)	Weathertight	-40 °C	115 °C	Backshell, Cable Clamp	4.57 mm	0.18 in	0.2 in	5.08 mm	8	Bayonet Lock	Free Hanging (In-Line)	Female Sockets, Plug	600 V	Brass	Keyed
Conxall/Switchcraft 3282-8SG-521	Black	Gold	Unshielded	5.6 A	Plastic	Nylon, Polyamide (PA)	Weathertight	-40 °C	115 °C	Backshell, Cable Clamp					8	Bayonet Lock	Free Hanging (In-Line)	Female Sockets, Plug	600 V	Brass	Keyed	5.33 mm	0.23 in		0.21 in	5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.72
		10	$ 19.83
		25	$ 17.96
		50	$ 16.70
		100	$ 15.55
		250	$ 14.20
		500	$ 13.29

Description

General part information

3282-8S Series

8 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Multi-Con-X Connectors

Datasheet
