T1230240121-000
ActiveTE Connectivity AMP Connectors
H24B-TSH-PG21
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T1230240121-000
ActiveTE Connectivity AMP Connectors
H24B-TSH-PG21
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T1230240121-000 | T123 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H24B | H10B, H24B, H16B |
| Size / Dimension [x] | 120 mm | 73 - 120 mm |
| Size / Dimension [x] | 4.724 " | 2.874 - 4.724 in |
| Size / Dimension [y] | 43 mm | 43 mm |
| Size / Dimension [y] | 1.693 in | 1.693 in |
| Size / Dimension [z] | 76 mm | 72 - 76 mm |
| Size / Dimension [z] | 2.992 in | 2.835 - 2.992 in |
| Style | Side Entry | Side Entry, Side and Top Entry, Side Entry, Dual |
| Thread Size | PG21 | PG29, PG21, M32, M25, M40, M16, M20, PG16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.74 | |
| 14 | $ 13.46 | |||
| 105 | $ 11.24 | |||
| 1001 | $ 9.66 | |||
T123 Series
H10B-TSH-M40
| Part | Housing Color | Housing Finish | Operating Temperature [Max] | Operating Temperature [Min] | Style | Connector Type | Ingress Protection | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size | Housing Material | Lock Location | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1230100140-000 | Gray | Powder Coated | 125 °C | -40 °C | Side Entry | Hood | IP65 - Dust Tight, Water Resistant | 2.874 in | 73 mm | 43 mm | 1.693 in | 2.835 in | 72 mm | H10B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | |
TE Connectivity AMP Connectors T1230240229-000 | Gray | Powder Coated | 125 °C | -40 °C | Side and Top Entry | Hood | IP65 - Dust Tight, Water Resistant | 4.724 " | 120 mm | 43 mm | 1.693 in | 2.992 in | 76 mm | H24B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | PG29 |
TE Connectivity AMP Connectors T1230240121-000 | Gray | Powder Coated | 125 °C | -40 °C | Side Entry | Hood | IP65 - Dust Tight, Water Resistant | 4.724 " | 120 mm | 43 mm | 1.693 in | 2.992 in | 76 mm | H24B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | PG21 |
TE Connectivity AMP Connectors T1230240232-000 | Gray | Powder Coated | 125 °C | -40 °C | Side Entry, Dual | Hood | IP65 - Dust Tight, Water Resistant | 4.724 " | 120 mm | 43 mm | 1.693 in | 2.992 in | 76 mm | H24B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | M32 |
TE Connectivity AMP Connectors T1230102525-000 | Gray | Powder Coated | 125 °C | -40 °C | Side and Top Entry | Hood | IP65 - Dust Tight, Water Resistant | 2.874 in | 73 mm | 43 mm | 1.693 in | 2.835 in | 72 mm | H10B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | M25 |
TE Connectivity AMP Connectors T1230164040-000 | Gray | Powder Coated | 125 °C | -40 °C | Side and Top Entry | Hood | IP65 - Dust Tight, Water Resistant | 3.681 " | 93.5 mm | 43 mm | 1.693 in | 2.992 in | 76 mm | H16B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | |
TE Connectivity AMP Connectors T1230242540-000 | Gray | Powder Coated | 125 °C | -40 °C | Side and Top Entry | Hood | IP65 - Dust Tight, Water Resistant | 4.724 " | 120 mm | 43 mm | 1.693 in | 2.992 in | 76 mm | H24B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | M25, M40 |
TE Connectivity AMP Connectors T1230243216-000 | Gray | Powder Coated | 125 °C | -40 °C | Side Entry, Dual | Hood | IP65 - Dust Tight, Water Resistant | 4.724 " | 120 mm | 43 mm | 1.693 in | 2.992 in | 76 mm | H24B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | M16, M32 |
TE Connectivity AMP Connectors T1230100125-000 | Gray | Powder Coated | 125 °C | -40 °C | Side Entry | Hood | IP65 - Dust Tight, Water Resistant | 2.874 in | 73 mm | 43 mm | 1.693 in | 2.835 in | 72 mm | H10B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | M25 |
TE Connectivity AMP Connectors T1230160232-000 | Gray | Powder Coated | 125 °C | -40 °C | Side Entry, Dual | Hood | IP65 - Dust Tight, Water Resistant | 3.681 " | 93.5 mm | 43 mm | 1.693 in | 2.992 in | 76 mm | H16B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | M32 |
TE Connectivity AMP Connectors T1230160121-000 | Gray | Powder Coated | 125 °C | -40 °C | Side Entry | Hood | IP65 - Dust Tight, Water Resistant | 3.681 " | 93.5 mm | 43 mm | 1.693 in | 2.992 in | 76 mm | H16B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | PG21 |
TE Connectivity AMP Connectors T1230100129-000 | Gray | Powder Coated | 125 °C | -40 °C | Side Entry | Hood | IP65 - Dust Tight, Water Resistant | 2.874 in | 73 mm | 43 mm | 1.693 in | 2.835 in | 72 mm | H10B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | PG29 |
TE Connectivity AMP Connectors T1230100120-000 | Gray | Powder Coated | 125 °C | -40 °C | Side Entry | Hood | IP65 - Dust Tight, Water Resistant | 2.874 in | 73 mm | 43 mm | 1.693 in | 2.835 in | 72 mm | H10B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | M20 |
TE Connectivity AMP Connectors T1230244025-000 | Gray | Powder Coated | 125 °C | -40 °C | Side and Top Entry | Hood | IP65 - Dust Tight, Water Resistant | 4.724 " | 120 mm | 43 mm | 1.693 in | 2.992 in | 76 mm | H24B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | M25, M40 |
TE Connectivity AMP Connectors T1230105116-000 | 125 °C | -40 °C | Side Entry | Hood | IP65 - Dust Tight, Water Resistant | 2.874 in | 73 mm | 43 mm | 1.693 in | 2.835 in | 72 mm | H10B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | PG16 | ||
TE Connectivity AMP Connectors T1230160132-000 | Gray | Powder Coated | 125 °C | -40 °C | Side Entry | Hood | IP65 - Dust Tight, Water Resistant | 3.681 " | 93.5 mm | 43 mm | 1.693 in | 2.992 in | 76 mm | H16B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | M32 |
TE Connectivity AMP Connectors T1230246132-000 | Gray | Powder Coated | 125 °C | -40 °C | Side Entry | Hood | IP65 - Dust Tight, Water Resistant | 4.724 " | 120 mm | 43 mm | 1.693 in | 2.992 in | 76 mm | H24B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | M32 |
TE Connectivity AMP Connectors T1230244020-000 | Gray | Powder Coated | 125 °C | -40 °C | Side and Top Entry | Hood | IP65 - Dust Tight, Water Resistant | 4.724 " | 120 mm | 43 mm | 1.693 in | 2.992 in | 76 mm | H24B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | M20, M40 |
TE Connectivity AMP Connectors T1230240221-000 | Gray | Powder Coated | 125 °C | -40 °C | Side Entry, Dual | Hood | IP65 - Dust Tight, Water Resistant | 4.724 " | 120 mm | 43 mm | 1.693 in | 2.992 in | 76 mm | H24B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | PG21 |
TE Connectivity AMP Connectors T1230160129-000 | Gray | Powder Coated | 125 °C | -40 °C | Side Entry | Hood | IP65 - Dust Tight, Water Resistant | 3.681 " | 93.5 mm | 43 mm | 1.693 in | 2.992 in | 76 mm | H16B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | PG29 |
TE Connectivity AMP Connectors T1230105132-000 | 125 °C | -40 °C | Side Entry | Hood | IP65 - Dust Tight, Water Resistant | 2.874 in | 73 mm | 43 mm | 1.693 in | 2.835 in | 72 mm | H10B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | M32 | ||
TE Connectivity AMP Connectors T1230105140-000 | 125 °C | -40 °C | Side Entry | Hood | IP65 - Dust Tight, Water Resistant | 2.874 in | 73 mm | 43 mm | 1.693 in | 2.835 in | 72 mm | H10B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | |||
TE Connectivity AMP Connectors T1230240132-000 | Gray | Powder Coated | 125 °C | -40 °C | Side Entry | Hood | IP65 - Dust Tight, Water Resistant | 4.724 " | 120 mm | 43 mm | 1.693 in | 2.992 in | 76 mm | H24B | Aluminum Alloy, Die Cast | Locking Clip (2) on Base Bottom | M32 |
Description
General part information
T123 Series

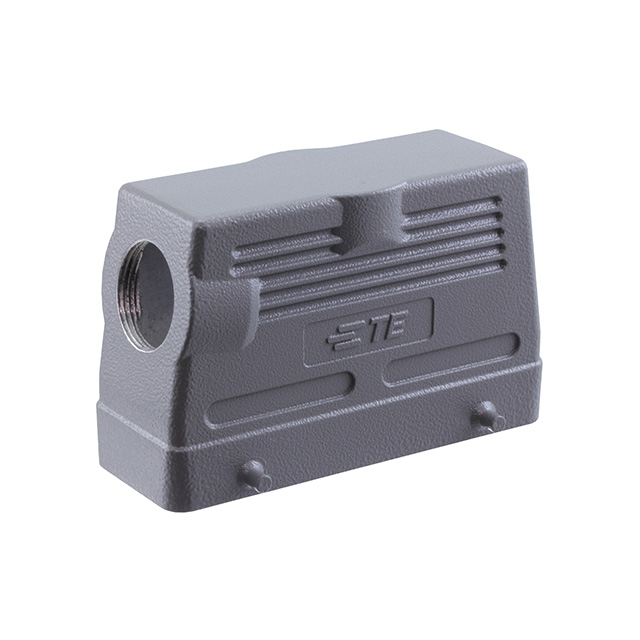

Hood Connector Side Entry PG21 H24B IP65 - Dust Tight, Water Resistant
