Technical Specifications
Parameters and characteristics for this part
| Specification | 14-476.036 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button (Not Included) |
| Circuit | SPST-NC |
| Current Rating (Amps) | 100 mA |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.3 mm |
| Switch Function | On-Off |
| Termination Style | PC Pin, Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 42 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.04 | |
| 2 | $ 36.12 | |||
14-476 Series
SWITCH PB DPST-NC 0.1A 42V
| Part | Current Rating (Amps) | Circuit | Actuator Type | Ingress Protection | Panel Cutout Dimensions [diameter] | Switch Function | Termination Style | Voltage Rating - AC | Mounting Type | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage Rating - DC | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 14-476.036 | 100 mA | SPST-NC | Round, Button (Not Included) | IP67 - Dust Tight, Waterproof | 22.3 mm | On-Off | PC Pin, Solder Lug | 42 V | Panel Mount, Front | No Marking | 55 °C | -25 °C | Standard | 42 V | 1000000 Cycles |
Description
General part information
14-476 Series

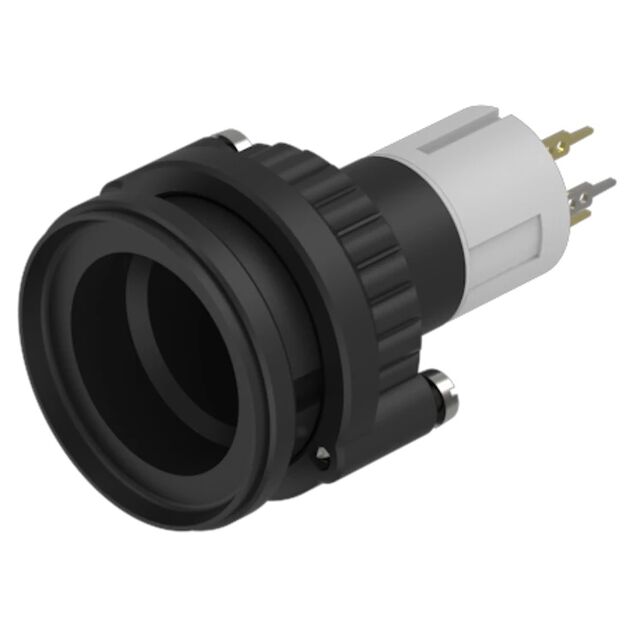

Pushbutton Switch SPST-NC Standard Panel Mount, Front
