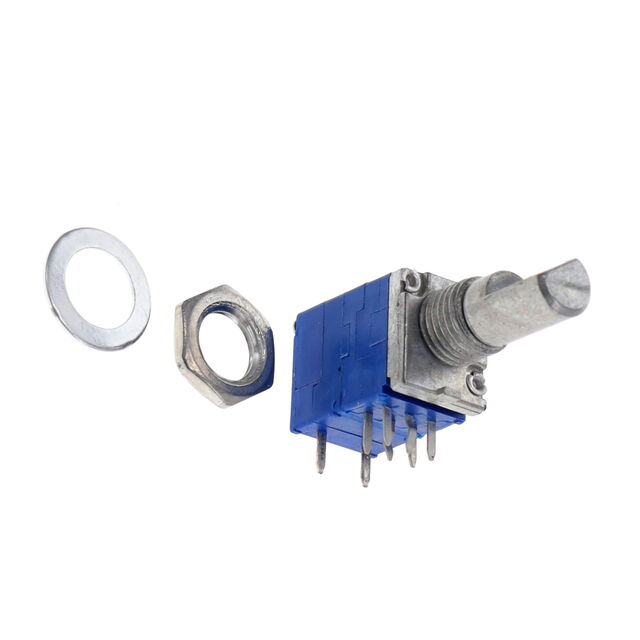

PTR902-2015F-C104

Active

Bourns Inc.

POT 100K OHM 1/40W CARBON R-LOG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTR902-2015F-C104

Active

Bourns Inc.

POT 100K OHM 1/40W CARBON R-LOG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTR902-2015F-C104

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length	15 mm
Actuator Length [z]	0.591 in
Actuator Type	Flatted
Adjustment Type	Side Adjustment
Built in Switch	Rotary, SPST
Bushing Thread	0.75
Bushing Thread	M7
Number of Gangs	2
Number of Turns	1
Power (Watts)	0.025 W
Power (Watts)	0.025 W
Resistance (Ohms)	100 kOhms
Resistive Material	Carbon
Rotation	300 ░
Size - Body [x]	0.445 "
Size - Body [x]	11.3 mm
Size - Body [y]	0.374 in
Size - Body [y]	9.5 mm
Taper	Reverse Logarithmic
Termination Style	Board Locks, PC Pins
Tolerance	20 %

PTR902 Series

Part	Termination Style	Built in Switch	Actuator Type	Actuator Length [z]	Actuator Length [z]	Power (Watts)	Power (Watts)	Bushing Thread	Bushing Thread	Tolerance	Resistive Material	Number of Turns	Size - Body [y]	Size - Body [y]	Size - Body [x]	Size - Body [x]	Adjustment Type	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Rotation	Taper	Number of Gangs	Resistance (Ohms)	Resistance (Ohms)	Power (Watts)	Actuator Length
Bourns Inc. PTR902-2020K-A504	Board Locks PC Pins	Rotary SPST	Knurled and Slotted	20 mm	0.787 in	0.025 W	0.025 W	0.75	M7	20 %	Carbon	1	0.374 in	9.5 mm	0.445 "	11.3 mm	Side Adjustment	0.236 in	6 mm	300 ░	Logarithmic	2	500 kOhms
Bourns Inc. PTR902-2020F-A503	Board Locks PC Pins	Rotary SPST	Flatted	20 mm	0.787 in	0.025 W	0.025 W	0.75	M7	20 %	Carbon	1	0.374 in	9.5 mm	0.445 "	11.3 mm	Side Adjustment	0.236 in	6 mm	300 ░	Logarithmic	2	50 kOhms
Bourns Inc. PTR902-1220F-B103	Board Locks PC Pins	Rotary SPST With Detent	Flatted	20 mm	0.787 in	0.05 W		0.75	M7	10 %	Carbon	1	0.374 in	9.5 mm	0.445 "	11.3 mm	Side Adjustment	0.236 in	6 mm	300 ░	Linear	2		10k	50 mW
Bourns Inc. PTR902-2015F-C104	Board Locks PC Pins	Rotary SPST	Flatted		0.591 in	0.025 W	0.025 W	0.75	M7	20 %	Carbon	1	0.374 in	9.5 mm	0.445 "	11.3 mm	Side Adjustment	0.236 in	6 mm	300 ░	Reverse Logarithmic	2	100 kOhms			15 mm
Bourns Inc. PTR902-2015F-B103	Board Locks PC Pins	Rotary SPST	Flatted		0.591 in	0.05 W		0.75	M7	20 %	Carbon	1	0.374 in	9.5 mm	0.445 "	11.3 mm	Side Adjustment	0.236 in	6 mm	300 ░	Linear	2		10k	50 mW	15 mm
Bourns Inc. PTR902-1020K-A502	Board Locks PC Pins	Rotary SPST	Knurled and Slotted	20 mm	0.787 in	0.025 W	0.025 W	0.75	M7	10 %	Carbon	1	0.374 in	9.5 mm	0.445 "	11.3 mm	Side Adjustment	0.236 in	6 mm	300 ░	Logarithmic	2	5 kOhms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.14
		10	$ 2.75
		25	$ 2.46
		40	$ 2.31
		108	$ 2.26
		324	$ 2.16
		540	$ 1.77
		972	$ 1.73

Description

General part information

PTR902 Series

100k Ohm 2 Gang Reverse Logarithmic Panel Mount Potentiometer 1.0 Turns Carbon 0.025W, 1/40W PC Pins, Board Locks
