8G26-0A-UB1-00-2.00

Active

3M (TC)

XP200020129 8G26-0A-UB1-00-2.00=ASSY/TWINAX/EXT/MINISAS/30AWG/2.0M

Search across all available documentation for this part.

Active

3M (TC)

XP200020129 8G26-0A-UB1-00-2.00=ASSY/TWINAX/EXT/MINISAS/30AWG/2.0M

Technical Specifications

Parameters and characteristics for this part

Part	Length [x]	Length [x]	Shielding	Color	Cable Connectors	Cable Type	Fastening Type	Connector Type	Number of Positions	Features	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Usage	Wire Gauge	Length	Length
3M (TC) 8G26-0A-UB1-00-1.00	1 m	3.28 ft	Shielded	Black	miniSAS 4x	Flat Twin Axial	Latch Lock Push-Pull	Plug to Plug	26	Key Slot 2-4-6 (miniSAS) Pull Tab	Male to Male	-20 C	80 C	6 Gbps	External	30 AWG
3M (TC) 8G26-0A-UB1-00-2.00	2 m	6.56 ft	Shielded	Black	miniSAS 4x	Flat Twin Axial	Latch Lock Push-Pull	Plug to Plug	26	Key Slot 2-4-6 (miniSAS) Pull Tab	Male to Male	-20 C	80 C	6 Gbps	External	30 AWG
3M (TC) 8G26-8A-CB1-00-4.00	4 m	13.12 ft	Shielded	Black	miniSAS 4x	Flat Twin Axial	Latch Lock Push-Pull	Plug to Plug	26	Key Slot 2-4 to Key Slot 4-6 Pull Tab	Male to Male	-20 C	80 C	6 Gbps	External	28 AWG
3M (TC) 8G26-8A-UB1-00-6.00			Shielded	Black	miniSAS 4x	Flat Twin Axial	Latch Lock Push-Pull	Plug to Plug	26	Key Slot 2-4-6 (miniSAS) Pull Tab	Male to Male	-20 C	80 C	6 Gbps	External	28 AWG	19.69 ft	6 m
3M (TC) 8G26-0A-UB1-00-3.00	3 m	9.84 ft	Shielded	Black	miniSAS 4x	Flat Twin Axial	Latch Lock Push-Pull	Plug to Plug	26	Key Slot 2-4-6 (miniSAS) Pull Tab	Male to Male	-20 C	80 C	6 Gbps	External	30 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	120	$ 68.07
Newark	Each	100	$ 87.96
		250	$ 84.98

General part information

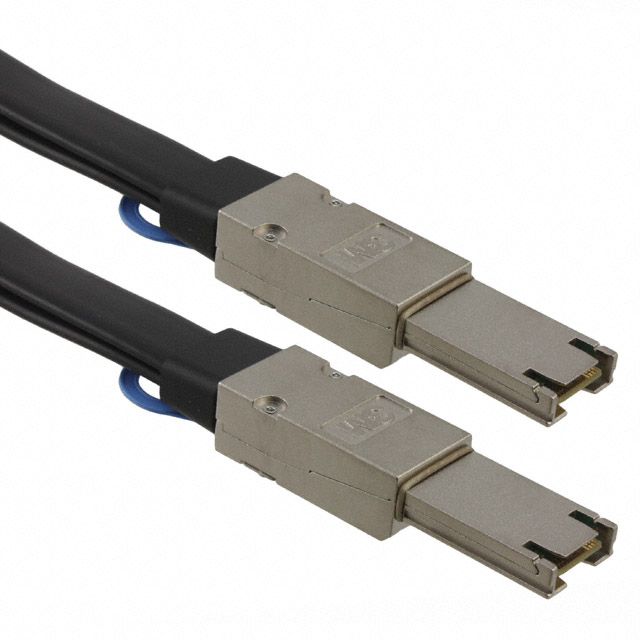

26 Position miniSAS 4x Plug to Plug 6.56' (2.00m) Black Shielded
