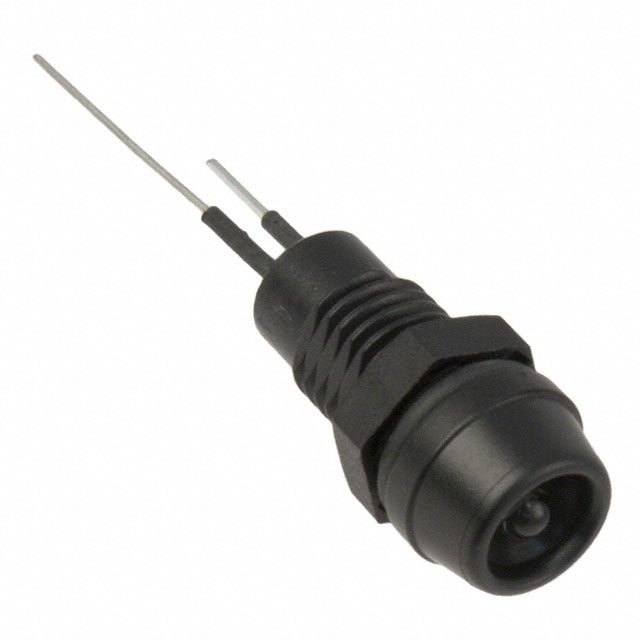

A-LED8-1BAAS-PR7-1
ActiveAssmann WSW Components
LED 3MM BLUE PNL MNT WATER PROOF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A-LED8-1BAAS-PR7-1
ActiveAssmann WSW Components
LED 3MM BLUE PNL MNT WATER PROOF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A-LED8-1BAAS-PR7-1 |
|---|---|
| Current | 30 mA |
| Ingress Protection | IP67 |
| Lamp Color | Blue |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Millicandela Rating | 2000 mcd |
| Panel Cutout Dimensions | 8.13 mm |
| Panel Cutout Dimensions | 0.32 in |
| Panel Cutout Shape | Round |
| Termination Style | PC Pin |
| Type | LED |
| Voltage | 3.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.81 | |
| 50 | $ 7.12 | |||
| 100 | $ 5.88 | |||
| 450 | $ 5.15 | |||
| 950 | $ 4.87 | |||
| 2000 | $ 4.76 | |||
Description
General part information
A-LED8 Series
LED Panel Indicator Blue 3.5V 30mA PC Pin
