74F156AP-RC

Obsolete

Bourns Inc.

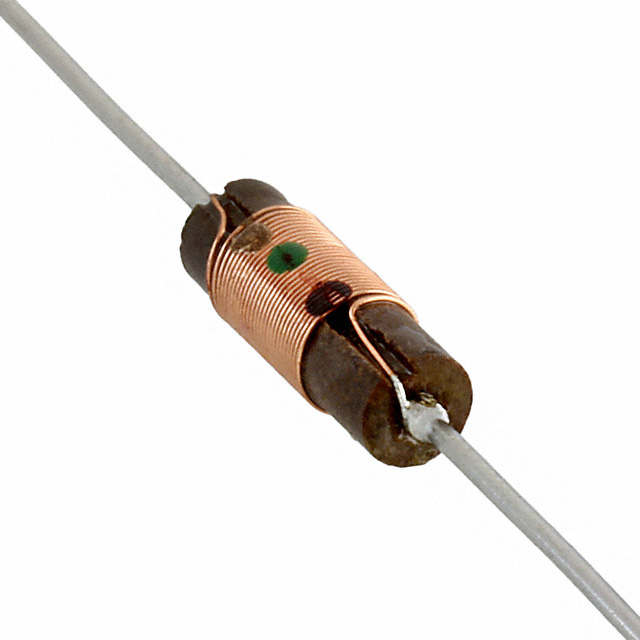

FIXED IND 1.5UH 900MA 250MOHM TH

Deep-Dive with AI

Search across all available documentation for this part.

Documents74F Series Datasheet

74F156AP-RC

Obsolete

Bourns Inc.

FIXED IND 1.5UH 900MA 250MOHM TH

Deep-Dive with AI

Documents74F Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	74F156AP-RC

Current Rating (Amps)	900 mA
DC Resistance (DCR) [Max]	250 mOhm
Frequency - Self Resonant	160 MHz
Inductance	1.5 µH
Inductance Frequency - Test	7.96 MHz
Material - Core	Phenolic
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Shielding	Unshielded
Size / Dimension [diameter]	5.08 mm
Size / Dimension [diameter]	0.2 "
Size / Dimension [x]	0.5 in
Size / Dimension [x]	12.7 mm
Tolerance	20 %
Type	Wirewound

74F Series

Part	Inductance	Type	Material - Core	Inductance Frequency - Test	Shielding	Package / Case	Tolerance	DC Resistance (DCR)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Current Rating (Amps)	Mounting Type	Frequency - Self Resonant	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) [Max]	Q @ Freq
Bourns Inc. 74F126AP-RC	1.2 µH	Wirewound	Phenolic	7.96 MHz	Unshielded	Axial	20 %	220 mOhm	0.5 in	12.7 mm	5.08 mm	0.2 "	950 mA	Through Hole	174 MHz	-55 °C	125 °C
Bourns Inc. 74F156AP-RC	1.5 µH	Wirewound	Phenolic	7.96 MHz	Unshielded	Axial	20 %		0.5 in	12.7 mm	5.08 mm	0.2 "	900 mA	Through Hole	160 MHz	-55 °C	125 °C	250 mOhm
Bourns Inc. 74F565AI-RC	56 µH	Drum Core Wirewound	Iron	2.52 MHz	Unshielded	Axial	10 %		0.5 in	12.7 mm	5.08 mm	0.2 "	300 mA	Through Hole	18 MHz	-55 °C	105 ░C	3.75 Ohm	2.52 MHz 90
Bourns Inc. 74F336AP	3.3 µH	Wirewound	Phenolic	7.96 MHz	Unshielded	Axial	20 %		0.5 in	12.7 mm	5.08 mm	0.2 "	600 mA	Through Hole	108 MHz	-55 °C	125 °C	700 mOhm
Bourns Inc. 74F566AP-RC	5.6 µH	Wirewound	Phenolic	7.96 MHz	Unshielded	Axial	10 %		0.5 in	12.7 mm	5.08 mm	0.2 "	350 mA	Through Hole		-55 °C	125 °C	1.8 Ohm	7.96 MHz 50
Bourns Inc. 74F686AP-3%-TR-RC
Bourns Inc. 74F275AI-RC	27 µH	Drum Core Wirewound	Iron	2.52 MHz	Unshielded	Axial	10 %	1.85 Ohm	0.5 in	12.7 mm	5.08 mm	0.2 "	450 mA	Through Hole	26 MHz	-55 °C	105 ░C		2.52 MHz 80
Bourns Inc. 74F475AI-RC	47 µH	Drum Core Wirewound	Iron	2.52 MHz	Unshielded	Axial	10 %		0.5 in	12.7 mm	5.08 mm	0.2 "	350 mA	Through Hole	19 MHz	-55 °C	105 ░C	3.5 Ohm	2.52 MHz 90
Bourns Inc. 74F225AI-RC	22 µH	Drum Core Wirewound	Iron	2.52 MHz	Unshielded	Axial	10 %		0.5 in	12.7 mm	5.08 mm	0.2 "	0.5 A	Through Hole	28 MHz	-55 °C	105 ░C	2 Ohm	2.52 MHz 85
Bourns Inc. 74F395AI-RC	39 µH	Drum Core Wirewound	Iron	2.52 MHz	Unshielded	Axial	10 %		0.5 in	12.7 mm	5.08 mm	0.2 "	400 mA	Through Hole	21 MHz	-55 °C	105 ░C	2.6 Ohm	2.52 MHz 90

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

74F Series

1.5 µH Unshielded Wirewound Inductor 900 mA 250mOhm Max Axial

Documents

Technical documentation and resources

74F Series

Datasheet
