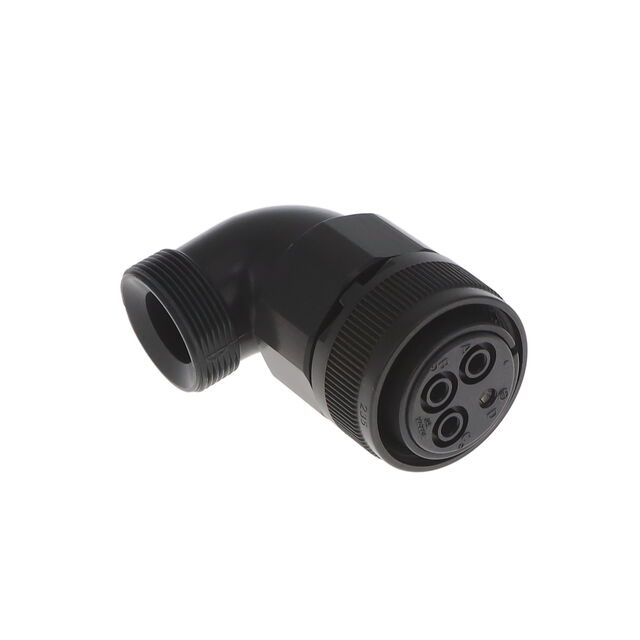

JL04V-8A22-22SE-EBH-R

Active

JAE Electronics

CONN PLUG FMALE 4P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JL04V-8A22-22SE-EBH-R

Active

JAE Electronics

CONN PLUG FMALE 4P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JL04V-8A22-22SE-EBH-R

Applications	Medical, Industrial, Test Equipment & Measurement, Telecommunications
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	46 A
Features	Coupling Nut, Backshell, Ground Lug
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Zinc
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	22
Shell Size - Insert [Min]	22

JL04V-8A Series

Part	Contact Finish - Mating	Connector Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Finish	Features	Contact Material	Shell Material	Color	Ingress Protection	Primary Material	Insert Material	Applications	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)	Mounting Type	Shell Size - Insert	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Cable Opening [diameter]	Cable Opening [diameter]	Shielding	Number of Positions [custom]
JAE Electronics JL04V-8A20-15SE-EB-R	Silver	Female Sockets Plug	15	20	Zinc	Backshell Coupling Nut Ground Lug	Copper Alloy	Aluminum Alloy	Black	IP67 - Dust Tight Waterproof	Metal	Synthetic Resin	Industrial Medical Telecommunications Test Equipment & Measurement	N	-55 °C	125 °C	1	6	23 A	Free Hanging (In-Line) Right Angle
JAE Electronics JL04V-8A10SL-3SE-EBH-R	Silver	Female Sockets Plug			Zinc	Backshell Coupling Nut Ground Lug	Copper Alloy	Aluminum Alloy	Black	IP67 - Dust Tight Waterproof	Metal	Synthetic Resin	Industrial Medical Telecommunications Test Equipment & Measurement	N	-55 °C	125 °C			13 A	Free Hanging (In-Line) Right Angle	10SL-3	2	3	1
JAE Electronics JL04V-8A20-4SE-EBH-R	Silver	Female Sockets Plug			Zinc	Backshell Coupling Nut Ground	Copper Alloy	Aluminum Alloy	Black	IP67 - Dust Tight Waterproof	Metal	Synthetic Resin	Industrial Medical Telecommunications Test Equipment & Measurement	N	-55 °C	125 °C			23 A	Free Hanging (In-Line) Right Angle	20-4				4
JAE Electronics JL04V-8A22-22SE-EBH-R	Silver	Female Sockets Plug	22	22	Zinc	Backshell Coupling Nut Ground Lug	Copper Alloy	Aluminum Alloy	Black	IP67 - Dust Tight Waterproof	Metal	Synthetic Resin	Industrial Medical Telecommunications Test Equipment & Measurement	N	-55 °C	125 °C			46 A	Free Hanging (In-Line) Right Angle					4
JAE Electronics JL04V-8A20-15SE-EBA
JAE Electronics JL04V-8A20-4SE-EBH-RK	Silver	Female Sockets Plug			Zinc	Backshell Coupling Nut Ground	Copper Alloy	Aluminum Alloy	Black	IP67 - Dust Tight Waterproof	Metal	Synthetic Resin	Industrial Medical Telecommunications Test Equipment & Measurement	N	-55 °C	125 °C			23 A	Free Hanging (In-Line) Right Angle	20-4				4
JAE Electronics JL04V-8A10SL-3S-EB-R	Silver	Female Sockets Plug				Backshell Coupling Nut Ground				IP67 - Dust Tight Waterproof			Industrial Medical Telecommunications Test Equipment & Measurement	N	-55 °C	125 °C			13 A	Free Hanging (In-Line) Right Angle	10SL-3	2	3	1
JAE Electronics JL04V-8A24-11SE-EBH-RK	Silver	Female Sockets Plug			Zinc	Backshell Coupling Nut Ground	Copper Alloy	Aluminum Alloy	Black	IP67 - Dust Tight Waterproof	Metal	Synthetic Resin	Industrial Medical Telecommunications Test Equipment & Measurement	N	-55 °C	125 °C			23 A 46 A	Free Hanging (In-Line) Right Angle	24-11				8 9	0.787 in	20 mm	Unshielded	PE
JAE Electronics JL04V-8A18-10PEX-EBH-R
JAE Electronics JL04V-8A18-10SE-EBA	Silver	Female Sockets Plug				Backshell Coupling Nut Ground				IP67 - Dust Tight Waterproof			Industrial Medical Telecommunications Test Equipment & Measurement	N	-55 °C	125 °C			23 A	Free Hanging (In-Line) Right Angle	18-10				4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 97.23
		10	$ 89.23
		25	$ 85.79
		50	$ 82.93
		100	$ 78.36

Description

General part information

JL04V-8A Series

4 (3 + PE) Position Circular Connector Plug, Female Sockets Solder Cup
