SN104M

Active

Comet America, LP

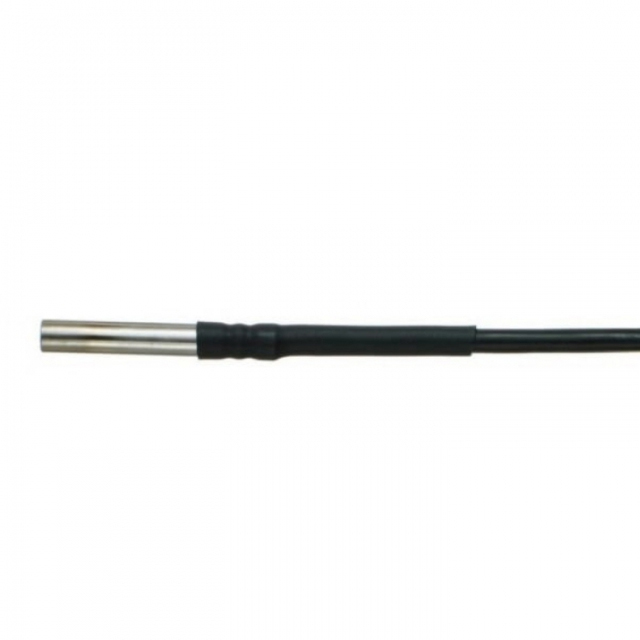

PT1000TG8/M, TEMPERATURE PROBE

Search across all available documentation for this part.

Active

Comet America, LP

PT1000TG8/M, TEMPERATURE PROBE

Technical Specifications

Parameters and characteristics for this part

Specification	SN104M

Conductor Type	Non-Grounded
Diameter - Protective Tube [diameter]	5.7 mm
Element Type	Pt1000
Length - Lead Wire	3.281 '
Length - Lead Wire	1 m
Length - Protective Tube [x]	60 mm
Temperature Range [Max]	200 °C
Temperature Range [Min]	-58 °F
Terminal Type	Exposed Lead Wires

Part	Temperature Range [Min]	Temperature Range [Max]	Length - Lead Wire	Length - Lead Wire	Length - Protective Tube [x]	Conductor Type	Diameter - Protective Tube [diameter]	Terminal Type	Element Type
Comet America, LP SN104C	-58 °F	200 °C	3.281 '	1 m	60 mm	Non-Grounded	5.7 mm	Exposed Lead Wires	Pt1000
Comet America, LP SN104M	-58 °F	200 °C	3.281 '	1 m	60 mm	Non-Grounded	5.7 mm	Exposed Lead Wires	Pt1000
Comet America, LP SN104E	-58 °F	200 °C	3.281 '	1 m	60 mm	Non-Grounded	5.7 mm	Exposed Lead Wires	Pt1000

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pt1000 Temperature Sensor -50°C ~ 200°C Non-Grounded Exposed Lead Wires
