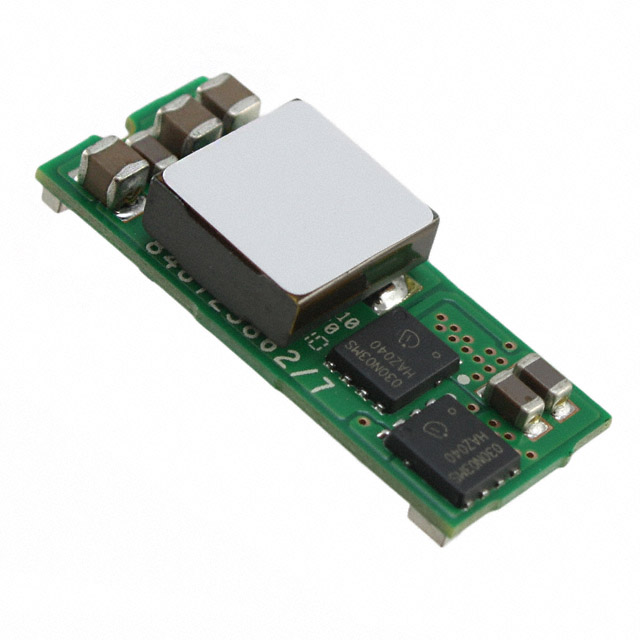

AXA016A0X3-SRZ
ActiveOmniOn Power™
DC DC CONVERTER 0.8-5.5V 88W
Deep-Dive with AI
Search across all available documentation for this part.
AXA016A0X3-SRZ
ActiveOmniOn Power™
DC DC CONVERTER 0.8-5.5V 88W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXA016A0X3-SRZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 16 A |
| Efficiency | 92 % |
| Features | Remote On/Off, UVLO, OCP, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SMD Module |
| Power (Watts) | 88 W |
| Size / Dimension [x] | 1.3 " |
| Size / Dimension [x] | 33 mm |
| Size / Dimension [y] | 13.5 mm |
| Size / Dimension [y] | 0.53 in |
| Size / Dimension [z] | 8.3 mm |
| Size / Dimension [z] | 0.33 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 10 VDC |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 19.40 | |
| 5 | $ 19.25 | |||
| 10 | $ 19.10 | |||
| 25 | $ 18.80 | |||
| 50 | $ 17.91 | |||
| 100 | $ 16.41 | |||
| Digi-Reel® | 1 | $ 19.40 | ||
| 5 | $ 19.25 | |||
| 10 | $ 19.10 | |||
| 25 | $ 18.80 | |||
| 50 | $ 17.91 | |||
| 100 | $ 16.41 | |||
| Tape & Reel (TR) | 250 | $ 16.12 | ||
| 500 | $ 15.88 | |||
Description
General part information
AXA016 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 5.5V 16A 10V - 14V Input
Documents
Technical documentation and resources
No documents available
