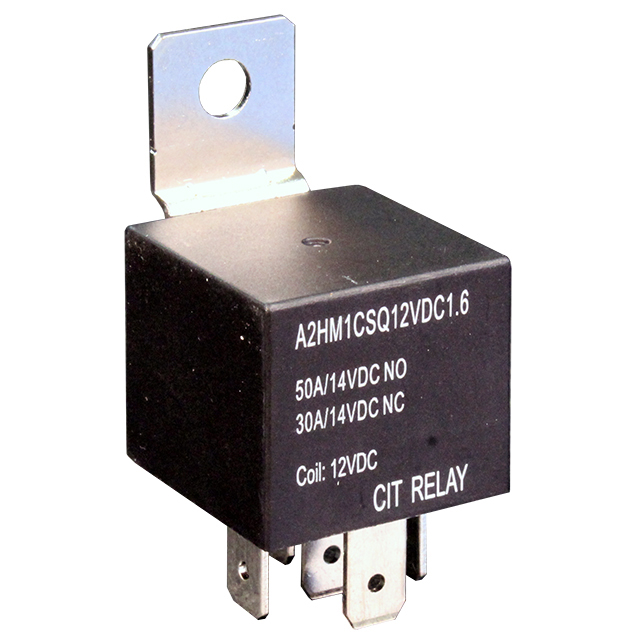

A2HM1CSQ12VDC1.6R

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 50A 12V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 50A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPDT 50A 12V

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RELAY AUTOMOTIVE SPDT 50A 12V

Part	Contact Material	Features	Coil Voltage	Coil Power	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Coil Resistance	Coil Current	Release Time	Coil Type	Termination Style	Operate Time	Switching Voltage	Contact Rating (Current)	Contact Form	Mounting Type	Must Release Voltage
CIT Relay and Switch A2HM1CSQ12VDC1.6R	Silver Tin Oxide (AgSnO)	Resistor, Sealed - Fully	12 VDC	1.6 W	125 °C	-40 °C	7.8 VDC	80 Ohms	150 mA	10 ms	Non Latching	Quick Connect - 0.250" (6.3mm)	10 ms	75 VDC	50 A	SPDT (1 Form C)	Chassis Mount	1.2 VDC
CIT Relay and Switch A2HM1CSQ24VDC1.6R	Silver Tin Oxide (AgSnO)	Resistor, Sealed - Fully	24 VDC	1.6 W	125 °C	-40 °C		320 Ohms	75 mA	10 ms	Non Latching	Quick Connect - 0.250" (6.3mm)	10 ms	75 VDC	50 A	SPDT (1 Form C)	Chassis Mount	2.4 VDC
CIT Relay and Switch A2HM1CSQ24VDC1.6D	Silver Tin Oxide (AgSnO)	Diode, Sealed - Fully	24 VDC	1.6 W	125 °C	-40 °C		360 Ohms	66.7 mA	10 ms	Non Latching	Quick Connect - 0.250" (6.3mm)	10 ms	75 VDC	50 A	SPDT (1 Form C)	Chassis Mount	2.4 VDC
