892-025-559-104

Active

EDAC Inc.

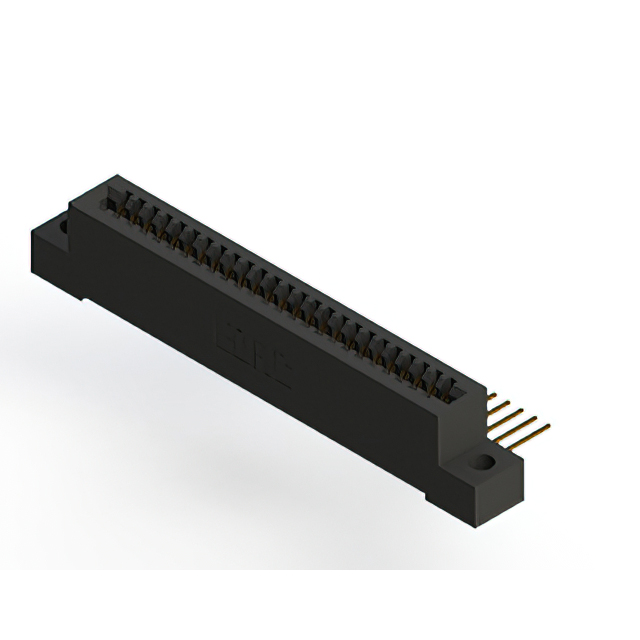

2.54MM 25P -40℃~+125℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-025-559-104

Active

EDAC Inc.

2.54MM 25P -40℃~+125℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-025-559-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions/Bay/Row [custom]	25
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

892-025 Series

Part	Number of Positions/Bay/Row [custom]	Color	Card Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Number of Rows	Flange Feature	Contact Type	Read Out	Gender	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 892-025-542-108	25	Black	Non Specified - Single Edge	Copper Alloy	10 Áin	0.25 Ám	1	1	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Single	Female	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Wire Wrap	125 °C	-40 °C	Gold	Through Hole
EDAC Inc. 892-025-524-103	25	Black	Non Specified - Single Edge	Copper Alloy	10 Áin	0.25 Ám	1	1	Floating Bobbin Flush Mount	Cantilever	Single	Female	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Solder	125 °C	-40 °C	Gold	Through Hole	0.116 in	2.95 mm
EDAC Inc. 892-025-524-107	25	Black	Non Specified - Single Edge	Copper Alloy	10 Áin	0.25 Ám	1	1	Flush Mount M3 Threaded Insert Top Opening	Cantilever	Single	Female	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Solder	125 °C	-40 °C	Gold	Through Hole
EDAC Inc. 892-025-558-104	25	Black	Non Specified - Single Edge	Copper Alloy	10 Áin	0.25 Ám	1	1	Flush Mount Top Opening Unthreaded	Cantilever	Single	Female	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Solder	125 °C	-40 °C	Gold	Through Hole Right Angle	0.156 in	3.96 mm
EDAC Inc. 892-025-559-102	25	Black	Non Specified - Single Edge	Copper Alloy	10 Áin	0.25 Ám	1	1	Flush Mount Top Opening Unthreaded	Cantilever	Single	Female	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Solder	125 °C	-40 °C	Gold	Through Hole Right Angle	0.128 "	3.25 mm
EDAC Inc. 892-025-559-104	25	Black	Non Specified - Single Edge	Copper Alloy	10 Áin	0.25 Ám	1	1	Flush Mount Top Opening Unthreaded	Cantilever	Single	Female	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Solder	125 °C	-40 °C	Gold	Through Hole Right Angle	0.156 in	3.96 mm
EDAC Inc. 892-025-523-108	25	Black	Non Specified - Single Edge	Copper Alloy	10 Áin	0.25 Ám	1	1	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Single	Female	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Solder	125 °C	-40 °C	Gold	Through Hole
EDAC Inc. 892-025-540-108	25	Black	Non Specified - Single Edge	Copper Alloy	10 Áin	0.25 Ám	1	1	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Single	Female	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Wire Wrap	125 °C	-40 °C	Gold	Through Hole
EDAC Inc. 892-025-524-104	25	Black	Non Specified - Single Edge	Copper Alloy	10 Áin	0.25 Ám	1	1	Flush Mount Top Opening Unthreaded	Cantilever	Single	Female	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Solder	125 °C	-40 °C	Gold	Through Hole	0.156 in	3.96 mm
EDAC Inc. 892-025-523-101	25	Black	Non Specified - Single Edge	Copper Alloy	10 Áin	0.25 Ám	1	1		Cantilever	Single	Female	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Solder	125 °C	-40 °C	Gold	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 102.94
LCSC	Piece	1	$ 71.46
		200	$ 27.65
		500	$ 26.68
		1000	$ 26.20
Newark	Each	1	$ 123.55
		100	$ 99.41
		250	$ 91.36
		500	$ 83.59
		1000	$ 69.75

Description

General part information

892-025 Series

25 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black

Documents

Technical documentation and resources
