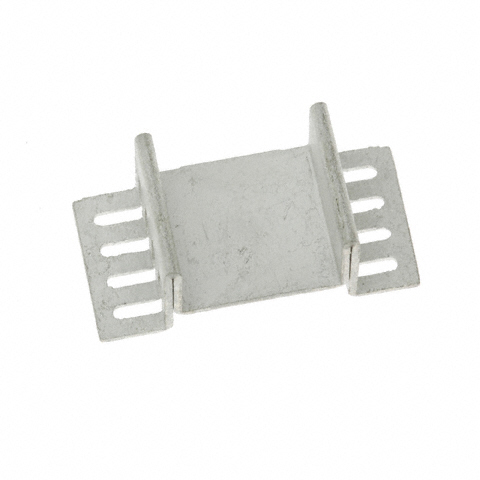

218-40CT5

Active

Wakefield-Vette

HEATSINK ALUM NATURAL SMD

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK ALUM NATURAL SMD

Technical Specifications

Parameters and characteristics for this part

Specification	218-40CT5

Attachment Method	SMD Pad
Fin Height	0.4 "
Fin Height	10.16 mm
Length	0.5 in
Length	12.7 mm
Material	Copper
Material Finish	Tin
Package Cooled	SMD
Power Dissipation @ Temperature Rise	2.3 W
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	5 °C/W, 600 LFM
Thermal Resistance @ Natural	31 °C/W
Type	Top Mount
Width	26.16 mm
Width [x]	1.03 in

Part	Material Finish	Package Cooled	Material	Power Dissipation @ Temperature Rise	Type	Thermal Resistance @ Natural	Length	Length	Thermal Resistance @ Forced Air Flow	Attachment Method	Width	Width [x]	Shape	Fin Height	Fin Height
Wakefield-Vette 218-40CT5	Tin	SMD	Copper	2.3 W	Top Mount	31 °C/W	0.5 in	12.7 mm	5 °C/W 600 LFM	SMD Pad	26.16 mm	1.03 in	Rectangular Fins	0.4 "	10.16 mm
Wakefield-Vette 218-40CTE5	Tin	SMD	Copper		Top Mount	31 °C/W	0.5 in	12.7 mm	21 °C/W	SMD Pad	26.16 mm	1.03 in	Rectangular Fins	0.4 "	10.16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Sink SMD Copper 2.3W @ 40°C Top Mount
