6342PC 8771000

Active

Belden Inc.

MULTI-PAIR 6COND 18AWG NAT

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 6COND 18AWG NAT

Technical Specifications

Parameters and characteristics for this part

Specification	6342PC 8771000

Cable Type	Multi-Pair
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	7.62 mm
Jacket (Insulation) Diameter [diameter]	0.3 in
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.0165 in
Jacket (Insulation) Thickness	0.42 mm
Jacket Color	Natural
Length	1000 ft
Length	304.8 m
Number of Conductors	6
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Sound, Security
Voltage	300 V
Wire Gauge	18 AWG

Part	Cable Type	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Conductor Material	Number of Conductors	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Features	Shield Type	Wire Gauge	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Usage	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation
Belden Inc. 6342PC 8771000	Multi-Pair	1000 ft	304.8 m	7.62 mm	0.3 in	Aluminum	Copper Bare	6	100 %	26 AWG	7	300 V	Drain Wire Rip Cord	Foil	18 AWG	UL Style CMP	75 ░C	0 °C	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	Security Sound	Natural	0.0165 in	0.42 mm	Fluorinated Ethylene-Propylene (FEP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.62

General part information

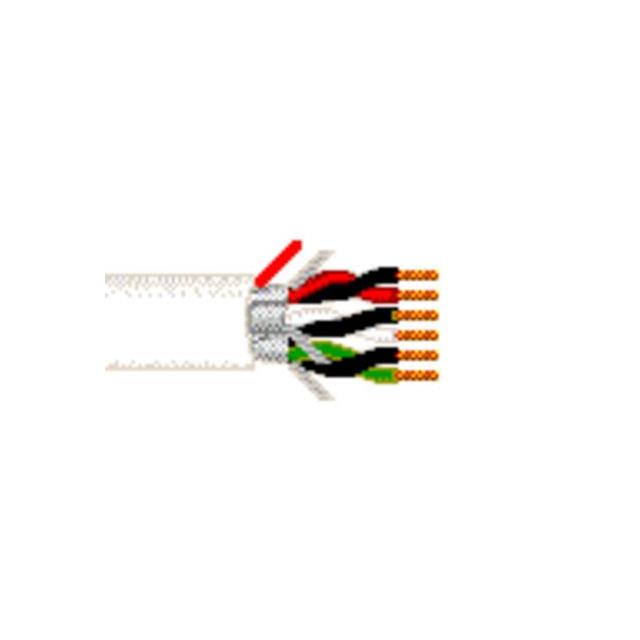

6 (3 Pair) Conductor Multi-Pair Cable Natural 18 AWG Foil 1000.0' (304.8m)
