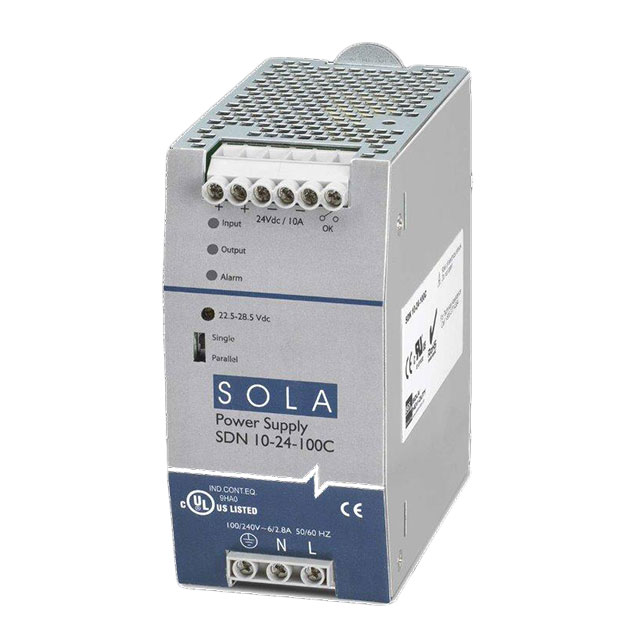

SDN10-24-100C

Active

SolaHD

AC/DC DIN RAIL SUPPLY 24V 240W

Search across all available documentation for this part.

Active

SolaHD

AC/DC DIN RAIL SUPPLY 24V 240W

Technical Specifications

Parameters and characteristics for this part

Specification	SDN10-24-100C

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	cURus, cULus, CE, EAC
Current - Output (Max) [Max]	10 A
DC Voltage - Input (Max) [Max]	375 V
DC Voltage - Input (Min) [Min]	90 V
Efficiency	90 %
Features	Adjustable Output, Universal Input, IP20
Input Type	AC or DC
Number of Outputs	1
Power (Watts)	240 W
Size / Dimension [x]	110.7 mm
Size / Dimension [x]	4.36 in
Size / Dimension [y]	2.36 "
Size / Dimension [y]	59.9 mm
Size / Dimension [z]	4.85 in
Size / Dimension [z]	123.2 mm
Voltage - Output 1	24 V

Part	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Approval Agency	DC Voltage - Input (Min) [Min]	Features	Input Type	Number of Outputs	DC Voltage - Input (Max) [Max]	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Applications	Voltage - Output 1	Current - Output (Max) [Max]	Efficiency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]
SolaHD SDN10-24-100C	85 VAC	264 VAC	CE cULus cURus EAC	90 V	Adjustable Output IP20 Universal Input	AC or DC	1	375 V	240 W	4.85 in	123.2 mm	110.7 mm	4.36 in	2.36 "	59.9 mm	Hazardous Locations Industrial ITE (Commercial)	24 V	10 A	90 %
SolaHD SDN10-24-100P			CE cULus cURus	210 V	Adjustable Output IP20	AC or DC	1	375 V	240 W	4.88 "	124 mm	115.6 mm	4.55 in	3.26 in	82.8 mm	Hazardous Locations Industrial ITE (Commercial)	24 V	10 A	88 %	176 VAC	264 VAC	85 VAC	132 VAC	-10 °C	70 °C
SolaHD SDN10-24-480C	320 VAC	540 VAC	CE cULus cURus EAC	550 V	Adjustable Output IP20	AC or DC	1		240 W	4.85 in	123.2 mm	110.7 mm	4.36 in	2.36 "	59.9 mm	Hazardous Locations Industrial ITE (Commercial)	24 V	10 A	91 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 240W
