FGS.1M.308.XLMTY
ActiveLEMO

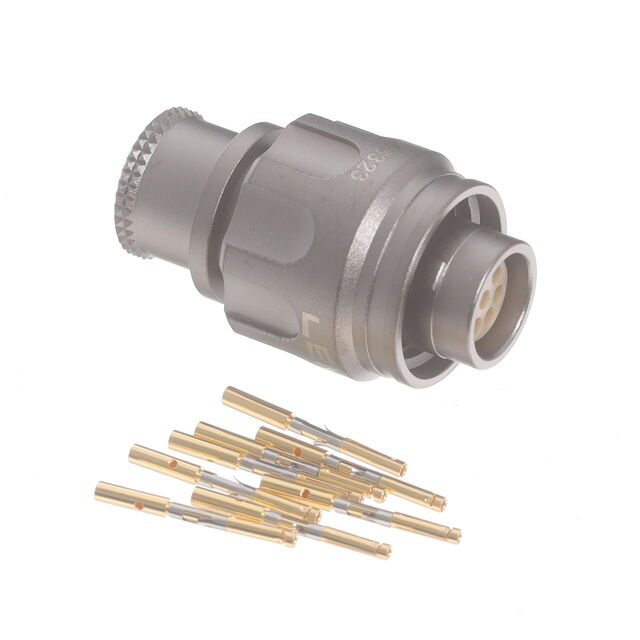

CONN PLUG FMALE 8POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
FGS.1M.308.XLMTY
ActiveLEMO
CONN PLUG FMALE 8POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FGS.1M.308.XLMTY | FGS.1M Series |
|---|---|---|
| Applications | Military, Aerospace, Automotive, Aviation | Military, Aerospace, Automotive, Aviation |
| Cable Opening | - | 9.7 mm |
| Cable Opening | - | 0.382 in |
| Cable Opening [Max] [custom] | 9.7 mm | 9.7 mm |
| Cable Opening [Max] [custom] | 0.382 in | 0.382 in |
| Cable Opening [Min] [custom] | 0.191 in | 0.191 in |
| Cable Opening [Min] [custom] | 4.85 mm | 4.85 mm |
| Color | Gray | Gray |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 5 A | 5 - 9 A |
| Features | Coupling Nut | Coupling Nut |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 8 | 7 - 8 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | S | S |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 308 | 305 - 308 |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Crimp |
FGS.1M Series
CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
| Part | Number of Positions | Orientation | Mounting Type | Features | Primary Material | Cable Opening [custom] | Cable Opening [custom] | Termination | Ingress Protection | Color | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Applications | Shell Material | Shell Size - Insert | Current Rating (Amps) | Connector Type | Insert Material | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Shielding | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO FGS.1M.307.XLMT | 7 | S | Free Hanging (In-Line) | Coupling Nut | Metal | 9.7 mm | 0.382 in | Crimp | IP68 - Dust Tight, Waterproof | Gray | -55 °C | 200 °C | Nickel | Aerospace, Automotive, Aviation, Military | Aluminum Alloy | 307 | 7 A | Female Sockets, Plug | Polyetheretherketone (PEEK) | Bronze | 59 Áin | 1.5 Ám | Gold | Shielded | ||||
LEMO FGS.1M.308.XLMM | 8 | S | Free Hanging (In-Line) | Coupling Nut | Metal | Crimp | IP68 - Dust Tight, Waterproof | Gray | -55 °C | 200 °C | Nickel | Aerospace, Automotive, Aviation, Military | Aluminum Alloy | 308 | 5 A | Female Sockets, Plug | Polyetheretherketone (PEEK) | Bronze | 59 Áin | 1.5 Ám | Gold | Shielded | ||||||
LEMO FGS.1M.305.XLMT | S | Free Hanging (In-Line) | Coupling Nut | Metal | 9.7 mm | 0.382 in | Crimp | IP68 - Dust Tight, Waterproof | Gray | -55 °C | 200 °C | Nickel | Aerospace, Automotive, Aviation, Military | Aluminum Alloy | 305 | 9 A | Female Sockets, Plug | Polyetheretherketone (PEEK) | Bronze | 59 Áin | 1.5 Ám | Gold | Shielded | |||||
LEMO FGS.1M.308.XLMT | 8 | S | Free Hanging (In-Line) | Coupling Nut | Metal | 9.7 mm | 0.382 in | Crimp | IP68 - Dust Tight, Waterproof | Gray | -55 °C | 200 °C | Nickel | Aerospace, Automotive, Aviation, Military | Aluminum Alloy | 308 | 5 A | Female Sockets, Plug | Polyetheretherketone (PEEK) | Bronze | 59 Áin | 1.5 Ám | Gold | Shielded | ||||
LEMO FGS.1M.308.XLMTY | 8 | S | Free Hanging (In-Line) | Coupling Nut | Metal | Crimp | IP68 - Dust Tight, Waterproof | Gray | -55 °C | 200 °C | Nickel | Aerospace, Automotive, Aviation, Military | Aluminum Alloy | 308 | 5 A | Female Sockets, Plug | Polyetheretherketone (PEEK) | Bronze | 59 Áin | 1.5 Ám | Gold | Shielded | 9.7 mm | 0.191 in | 0.382 in | 4.85 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 91.38 | |
| 10 | $ 83.85 | |||
| 25 | $ 80.63 | |||
| 50 | $ 77.94 | |||
| 100 | $ 73.64 | |||
Description
General part information
FGS.1M Series
8 Position Circular Connector Plug, Female Sockets Crimp
