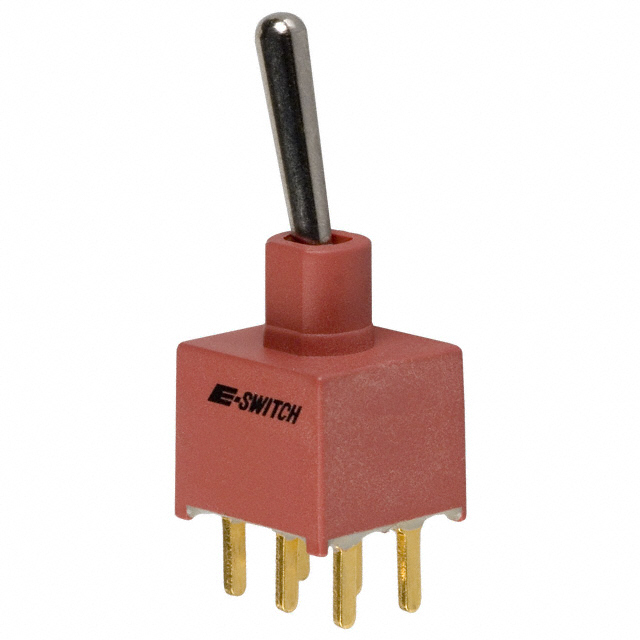

100AWDP1T1B4M2RE

Active

E-Switch

SWITCH TOGGLE DPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

100AWDP1T1B4M2RE

Active

E-Switch

SWITCH TOGGLE DPDT 0.4VA 20V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.57
		10	$ 4.08
		25	$ 3.86
		50	$ 3.72
		135	$ 3.54
		270	$ 3.39
		540	$ 3.09
		1080	$ 2.95

Description

General part information

100AWDP1 Series

Toggle Switch DPDT Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100AWDP1T1B4M2RE	100AWDP1 Series

Actuator Length	-	10.53 mm
Actuator Length [x]	0.5 in	0.5 - 10.55 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	Unthreaded	Unthreaded, 1/4-40
Circuit	DPDT	DPDT
Current Rating (Amps)	0.4 VA	0.4 - 5 VA
Electrical Life	30000 Cycles	30000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole	Through Hole, Vertical, Right Angle, Through Hole, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions	-	0.25 in
Switch Function	On-On	On-On
Termination Style	PC Pin	PC Pin, Solder Lug
Voltage Rating - AC	20 V	20 - 120 V
Voltage Rating - DC	20 V	20 - 28 V

100AWDP1 Series

SWITCH TOGGLE DPDT 0.4VA 20V

Part	Circuit	Actuator Material	Ingress Protection	Voltage Rating - DC	Illumination	Mounting Type	Termination Style	Current Rating (Amps)	Switch Function	Actuator Length [x]	Bushing Thread	Voltage Rating - AC	Electrical Life	Features	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Actuator Length [z]
E-Switch 100AWDP1T2B4M7RE	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	20 V	Non-Illuminated	Right Angle, Through Hole, Vertical	PC Pin	0.4 VA	On-On	7.62 mm	Unthreaded	20 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C
E-Switch 100AWDP1T1B4M6QE	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	28 V	Non-Illuminated	Through Hole, Right Angle	PC Pin	5 A	On-On	0.5 in	Unthreaded	120 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C
E-Switch 100AWDP1T2B4M2RE	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	20 V	Non-Illuminated	Through Hole	PC Pin	0.4 VA	On-On	7.62 mm	Unthreaded	20 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C
E-Switch 100AWDP1T1B4M1QE	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	28 V	Non-Illuminated		Solder Lug	5 A	On-On	0.5 in	Unthreaded	120 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C
E-Switch 100AWDP1T2B4M2QE	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	28 V	Non-Illuminated	Through Hole	PC Pin	5 A	On-On	7.62 mm	Unthreaded	120 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C
E-Switch 100AWDP1T2B4M6RE	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	20 V	Non-Illuminated	Through Hole, Right Angle	PC Pin	0.4 VA	On-On	7.62 mm	Unthreaded	20 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C
E-Switch 100AWDP1T1B1M2QEH	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	28 V	Non-Illuminated		PC Pin	5 A	On-On		1/4-40	120 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C	0.25 in	10.53 mm
E-Switch 100AWDP1T1B4VS21QE	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	28 V	Non-Illuminated	Through Hole	PC Pin	5 A	On-On	0.5 in	Unthreaded	120 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C
E-Switch 100AWDP1T1B1M2REH	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	20 V	Non-Illuminated		PC Pin	0.4 VA	On-On	10.41 mm	1/4-40	20 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C	0.25 in
E-Switch 100AWDP1T1B1M1QEH	DPDT	Brass, Chrome Plated	IP67 - Dust Tight, Waterproof	28 V	Non-Illuminated		Solder Lug	5 A	On-On	10.55 mm	1/4-40	120 V	30000 Cycles	Epoxy Sealed Terminals	Standard Round	-30 ░C	85 °C	0.25 in
