316-027-521-107
ActiveEDAC Inc.

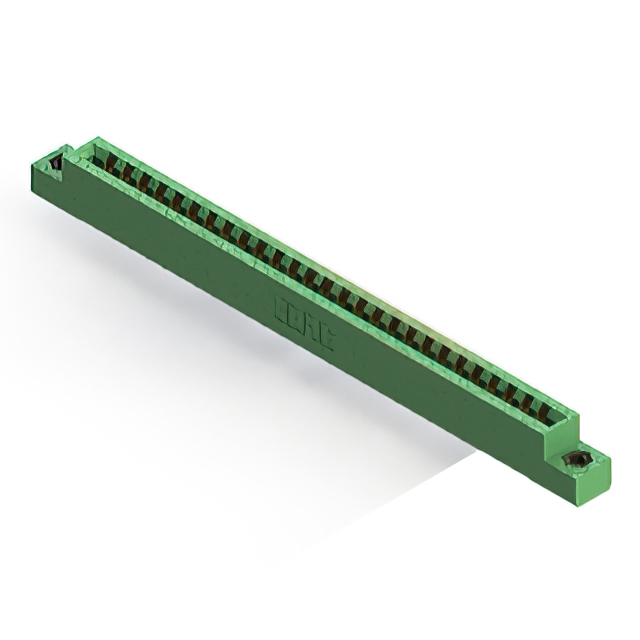

CONN EDGE DUAL FMALE 54POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
316-027-521-107
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 54POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 316-027-521-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 54 |
| Number of Positions/Bay/Row [custom] | 27 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
316-027 Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Number of Rows | Contact Finish | Termination Rows | Pitch [x] | Pitch [x] | Contact Material | Read Out | Color | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Termination | Mounting Type | Number of Positions | Material - Insulation | Number of Positions/Bay/Row [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Dual Edge | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2 | Gold | 1 | 0.156 in | 3.96 mm | Copper Alloy | Dual | Green | -40 °C | 105 ░C | Female | Solder | Through Hole | 54 | Polyester Thermoplastic | 27 | |
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | 2 | Gold | 1 | 0.156 in | 3.96 mm | Copper Alloy | Dual | Green | -40 °C | 105 ░C | Female | Solder | Through Hole | 54 | Polyester Thermoplastic | 27 | |||
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | 2 | Gold | 1 | 0.156 in | 3.96 mm | Copper Alloy | Dual | Green | -40 °C | 105 ░C | Female | Solder | Panel Mount Through Hole | 54 | Polyester Thermoplastic | 27 | |||
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 2 | Gold | 1 | 0.156 in | 3.96 mm | Copper Alloy | Dual | Green | -40 °C | 105 ░C | Female | Solder | Panel Mount Through Hole | 54 | Polyester Thermoplastic | 27 | |
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Dual Edge | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 2 | Gold | 1 | 0.156 in | 3.96 mm | Copper Alloy | Dual | Green | -40 °C | 105 ░C | Female | Solder | Through Hole | 54 | Polyester Thermoplastic | 27 | |
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Dual Edge | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 2 | Gold | 1 | 0.156 in | 3.96 mm | Copper Alloy | Dual | Green | -40 °C | 105 ░C | Female | Solder | Panel Mount Through Hole | 54 | Polyester Thermoplastic | 27 | |
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Dual Edge | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 2 | Gold | 1 | 0.156 in | 3.96 mm | Copper Alloy | Dual | Green | -40 °C | 105 ░C | Female | Solder Eyelet(s) | 54 | Polyester Thermoplastic | 27 | ||
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Dual Edge | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 2 | Gold | 1 | 0.156 in | 3.96 mm | Copper Alloy | Dual | Green | -40 °C | 105 ░C | Female | Solder | Through Hole | 54 | Polyester Thermoplastic | 27 | |
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Gold | 1 | 0.156 in | 3.96 mm | Copper Alloy | Dual | Green | -40 °C | 105 ░C | Female | Solder | Through Hole | 54 | Polyester Thermoplastic | 27 | Card Guides | ||
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Non Specified - Dual Edge | 2 | Gold | 1 | 0.156 in | 3.96 mm | Copper Alloy | Dual | Green | -40 °C | 105 ░C | Female | Solder | Through Hole | 54 | Polyester Thermoplastic | 27 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 17.51 | |
Description
General part information
316-027 Series
54 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
