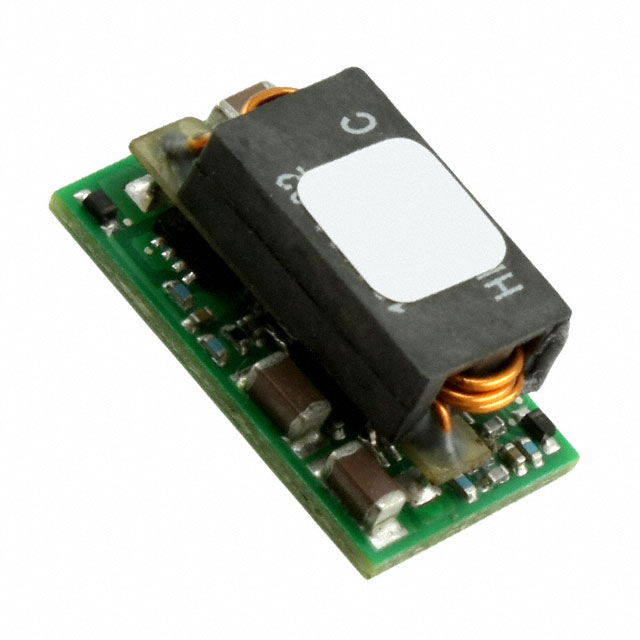

APXW005A0X3-SRDZ

Active

OmniOn Power™

DC DC CONVERTER 3-18V 45W

Search across all available documentation for this part.

Active

OmniOn Power™

DC DC CONVERTER 3-18V 45W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 3-18V 45W

Part	Efficiency	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Package / Case	Control Features	Type	Applications	Mounting Type	Voltage - Input (Max) [Max]	Features
OmniOn Power™ APXW005A0X3-SRDZ	95.9 %	9 V	1	18 V	3 V	-40 °C	105 ░C	5 A	45 W	0.8 "	11.4 mm	20.3 mm	0.45 in	8.5 mm	0.34 in	6-SMD Module	Active Low, Enable	Non-Isolated PoL Module	ITE (Commercial)	Surface Mount	36 V	OCP, OTP, Remote On/Off, UVLO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 15.45

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 3 ~ 18V 5A 9V - 36V Input
