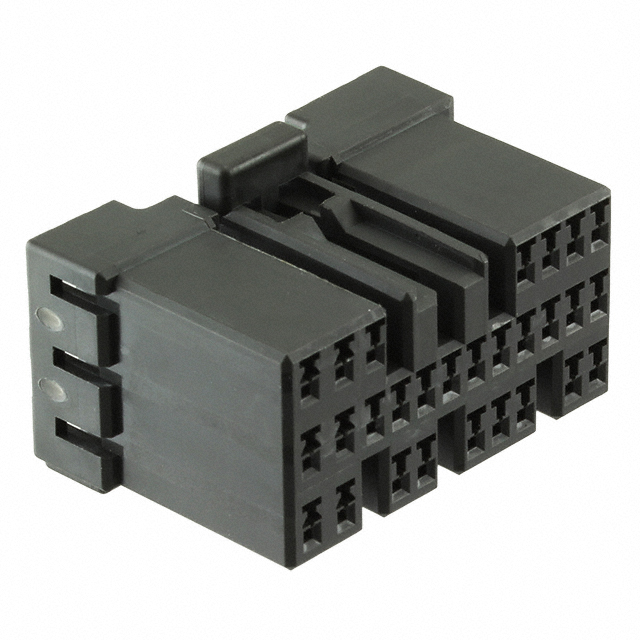

MX7-A-28SC
ObsoleteJAE Electronics
CONN RCPT HSG 28POS 3.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MX7-A-28SC
ObsoleteJAE Electronics
CONN RCPT HSG 28POS 3.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MX7-A-28SC |
|---|---|
| Color | Gray |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 28 |
| Number of Rows | 3 |
| Pitch [x] | 3 mm |
| Pitch [x] | 0.118 in |
| Row Spacing | 0.201 in |
| Row Spacing | 5.1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MX7-A-28 Series
28 Rectangular Connectors - Housings Receptacle Gray 0.118" (3.00mm)
