RTS714N3P03
ActiveAmphenol Sine Systems Corp

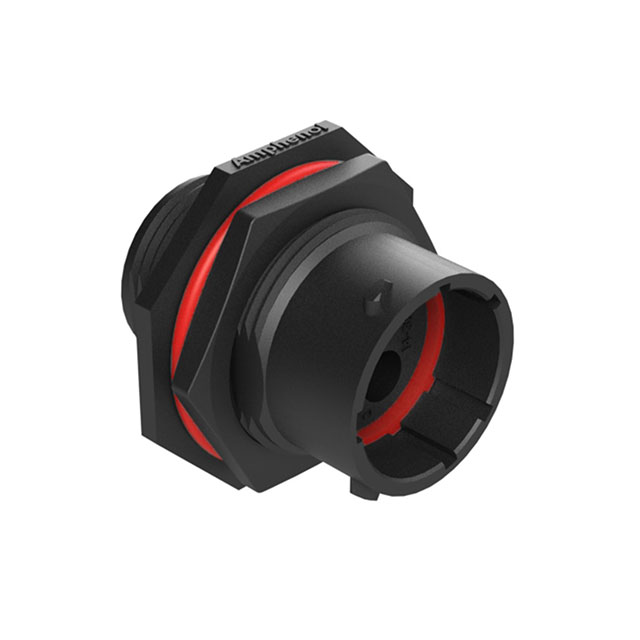

CONN RCPT HSG MALE 3POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
RTS714N3P03
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG MALE 3POS PNL MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTS714N3P03 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 8 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Black |
| Includes | 1 O-Ring, 1 Gasket, 1 Nut, 1 Connector |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Size - Insert | 14-3 |
| Shielding | Unshielded |
| Type | For Male Pins |
RTS714 Series
| Part | Contact Shape | Insert Material | Housing Color | Shell Size - Insert | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Number of Positions | Fastening Type | Contact Type | Material Flammability Rating | Connector Type | Note | Orientation | Ingress Protection | Includes | Type | Contact Size | Mounting Feature | Features | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] | Color | Contact Material | Primary Material | Current Rating (Amps) | Applications | Voltage Rating | Mounting Type | Termination | Contact Finish - Mating | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Circular | Thermoplastic | Black | 14-12 | 125 °C | -40 °C | Unshielded | 12 | Bayonet Lock | Crimp | UL94 V-0 | Receptacle Housing | Contacts Not Included | N | IP67 IP69K | 1 Connector 1 Gasket 1 Nut 1 O-Ring | For Male Pins | 16 | Bulkhead - Front Side Nut | ||||||||||||||||
Amphenol Sine Systems Corp | Circular | Thermoplastic | Black | 14-8 | 125 °C | -40 °C | Unshielded | 8 | Bayonet Lock | Crimp | UL94 V-0 | Receptacle Housing | Contacts Not Included | N | IP67 IP69K | 1 Connector 1 Gasket 1 Nut 1 O-Ring | For Female Sockets | 16 | Bulkhead - Front Side Nut | ||||||||||||||||
Amphenol Sine Systems Corp | Circular | Thermoplastic | Black | 14-12 | 125 °C | -40 °C | Unshielded | 12 | Bayonet Lock | Crimp | UL94 V-0 | Receptacle Housing | Contacts Not Included | N | IP67 IP69K | 1 Connector 1 Gasket 1 Nut 1 O-Ring | For Female Sockets | 16 | Bulkhead - Front Side Nut | ||||||||||||||||
Amphenol Sine Systems Corp | Circular | Thermoplastic | Black | 125 °C | -40 °C | Unshielded | 19 | Bayonet Lock | Crimp | UL94 V-0 | Receptacle Housing | Contacts Not Included | N | IP67 IP69K | 1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal | For Male Pins | 20 | Bulkhead - Front Side Nut | Backshell | 19 | 14 | ||||||||||||||
Amphenol Sine Systems Corp | Thermoplastic | 125 °C | -40 °C | Unshielded | 19 | Bayonet Lock | UL94 V-0 | Male Pins Receptacle | N | IP67 IP69K | Bulkhead - Front Side Nut | 19 | 14 | Black | Copper Alloy | Plastic | 7.5 A | Automation Industrial Instrumentation Marine Telecom Transportation | 250 VAC | Panel Mount Through Hole | Solder | Gold | |||||||||||||
Amphenol Sine Systems Corp | Circular | Thermoplastic | Black | 14-3 | 125 °C | -40 °C | Unshielded | Bayonet Lock | Crimp | UL94 V-0 | Receptacle Housing | Contacts Not Included | N | IP67 IP69K | 1 Connector 1 Gasket 1 Nut 1 O-Ring | For Male Pins | 8 | Bulkhead - Front Side Nut | |||||||||||||||||
Amphenol Sine Systems Corp | Circular | Thermoplastic | Black | 125 °C | -40 °C | Unshielded | Bayonet Lock | Crimp | UL94 V-0 | Receptacle Housing | Contacts Not Included | N | IP67 IP69K | 1 Connector 1 Gasket 1 Nut 1 O-Ring | For Male Pins | 16 | Bulkhead - Front Side Nut | 14 | 7 | 1 | 6 | ||||||||||||||
Amphenol Sine Systems Corp | Circular | Thermoplastic | Black | 125 °C | -40 °C | Unshielded | 4 | Bayonet Lock | Crimp | UL94 V-0 | Receptacle Housing | Contacts Not Included | N | IP67 IP69K | 1 Connector 1 Gasket 1 Nut 1 O-Ring | For Male Pins | 2.5 mm | Bulkhead - Front Side Nut | 14 | 4 | |||||||||||||||
Amphenol Sine Systems Corp | Thermoplastic | 14-12 | 125 °C | -40 °C | Unshielded | 12 | Bayonet Lock | UL94 V-0 | Receptacle Female Sockets | N | IP67 IP69K | Bulkhead - Front Side Nut | Black | Copper Alloy | Plastic | 13 A | Automation Industrial Instrumentation Marine Telecom Transportation | 500 VAC | Panel Mount Through Hole | Solder | Gold | ||||||||||||||
Amphenol Sine Systems Corp | Thermoplastic | 14-12 | 125 °C | -40 °C | Unshielded | 12 | Bayonet Lock | UL94 V-0 | Receptacle Female Sockets | N | IP67 IP69K | Bulkhead - Front Side Nut | Board Guide | Black | Copper Alloy | Plastic | 13 A | Automation Industrial Instrumentation Marine Telecom Transportation | 500 VAC | Panel Mount Through Hole | Solder | Gold |
