1-796497-1

Active

TE Connectivity AMP Connectors

CONN RCPT MALE 9POS GOLD SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT MALE 9POS GOLD SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	84	$ 52.39

General part information

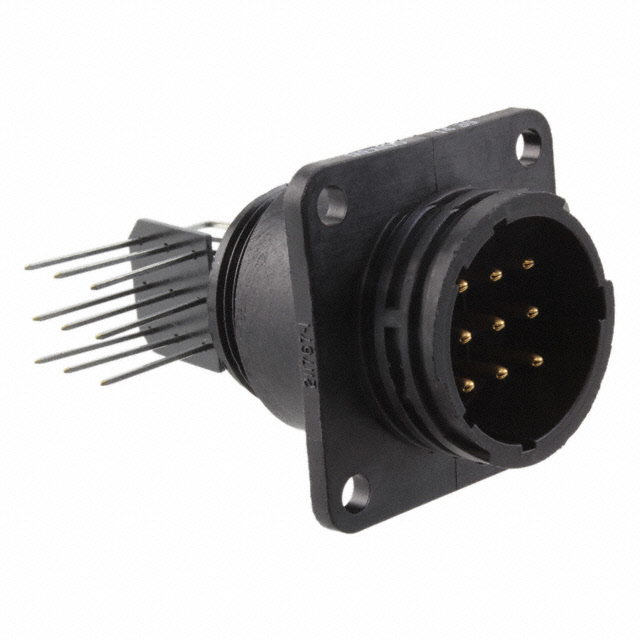

9 Position Circular Connector Receptacle, Male Pins Solder

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1-796497-1	796497 Series

Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Material	Brass	Brass
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	9	9
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	A	A
Primary Material	Plastic	Plastic
Shell Size - Insert	17-9	17-9
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

CONN RCPT MALE 9POS GOLD SOLDER

Part	Material Flammability Rating	Connector Type	Termination	Mounting Feature	Contact Finish - Mating	Voltage Rating	Shell Size - Insert	Mounting Type	Number of Positions	Orientation	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors 1-796497-1	UL94 V-0	Male Pins, Receptacle	Solder	Flange	Gold	250 VAC	17-9	Panel Mount, Right Angle, Through Hole	9	A	Plastic	105 ░C	-55 °C	Brass	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 796497-1	UL94 V-0	Male Pins, Receptacle	Solder	Flange	Gold	250 VAC	17-9	Panel Mount, Right Angle, Through Hole	9	A	Plastic	105 ░C	-55 °C	Brass	30 Áin	0.76 Ám
