PB605

Obsolete

Diodes Inc

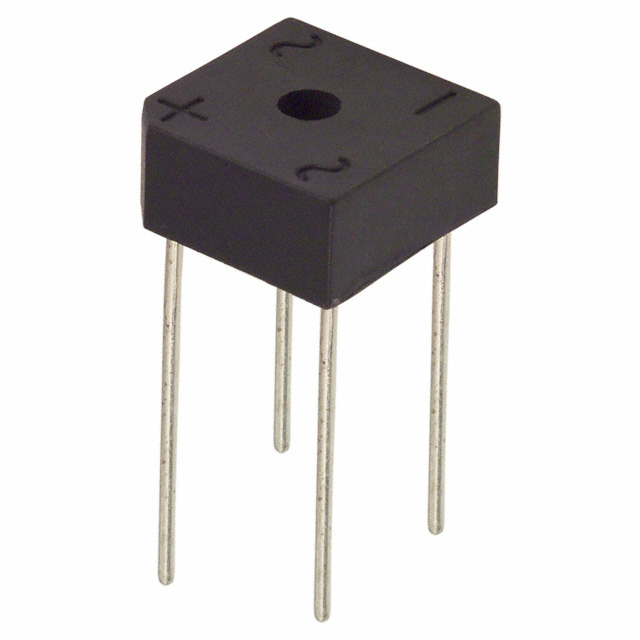

BRIDGE RECT 1PHASE 50V 6A PB-6

Search across all available documentation for this part.

Obsolete

Diodes Inc

BRIDGE RECT 1PHASE 50V 6A PB-6

Technical Specifications

Parameters and characteristics for this part

Specification	PB605

Current - Average Rectified (Io)	6 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	PB-6, 4-Square
Supplier Device Package	PB-6
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	50 V

Part	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Current - Average Rectified (Io)	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Current - Reverse Leakage @ Vr	Diode Type	Package / Case	Voltage - Peak Reverse (Max) [Max]
Diodes Inc PB605	1.1 V	Through Hole	6 A	PB-6	150 °C	-65 °C	Standard	10 µA	Single Phase	4-Square PB-6	50 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 50 V Through Hole PB-6
