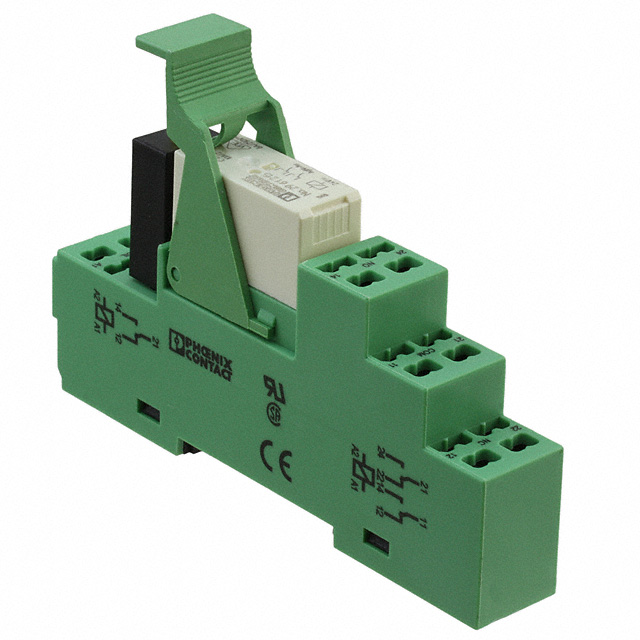

RELAY GEN PURPOSE DPDT 8A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2834601

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 8A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2834601	28346 Series

Coil Current	19 mA	4 - 38 mA
Coil Resistance	1263 Ohms	13.33 - 1263 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	24 - 230 VAC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)	Silver (Ag), Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	8 A	8 - 10 A
Features	Socket Included, Diode, Lighted Indicator	Lighted Indicator, Varistor, Socket Included, Diode
Load - Max Switching	-	1250 - 2500 VA
Load - Max Switching	-	2500 VA
Mounting Type	DIN Rail	DIN Rail
Operate Time	8 ms	8 - 13 ms
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-25 °C	-25 °C
Relay Type	General Purpose	General Purpose
Release Time	10 ms	5 - 16 ms
Switching Voltage	250 VAC, 250 VDC	125 - 250 VAC
Termination Style	Spring Terminal	Screw Terminal, Spring Terminal

28346 Series

RELAY GEN PURPOSE DPDT 10A 230V

Part	Contact Material	Contact Rating (Current)	Features	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Release Time	Relay Type	Mounting Type	Operate Time	Contact Form	Coil Type	Coil Current	Coil Resistance	Termination Style	Switching Voltage	Load - Max Switching	Load - Max Switching [Max]
Phoenix Contact 2834672	Silver (Ag)	10 A	Lighted Indicator, Socket Included, Varistor	230 VAC	-25 °C	60 °C	12 ms	General Purpose	DIN Rail	10 ms	DPDT (2 Form C)	Non Latching	4 mA	57.5 kOhms	Screw Terminal	250 VAC, 250 VDC
Phoenix Contact 2834669	Silver (Ag)	10 A	Lighted Indicator, Socket Included, Varistor	120 VAC	-25 °C	60 °C	12 ms	General Purpose	DIN Rail	10 ms	DPDT (2 Form C)	Non Latching	9 mA	13.33 kOhms	Screw Terminal	125 VDC, 250 VAC	1250 W, 2500 VA
Phoenix Contact 2834601	Gold (Au), Silver Nickel (AgNi)	8 A	Diode, Lighted Indicator, Socket Included	24 VDC	-25 °C	60 °C	10 ms	General Purpose	DIN Rail	8 ms	DPDT (2 Form C)	Non Latching	19 mA	1263 Ohms	Spring Terminal	250 VAC, 250 VDC
Phoenix Contact 2834643	Silver (Ag)	10 A	Diode, Lighted Indicator, Socket Included	24 VDC	-25 °C	60 °C	5 ms	General Purpose	DIN Rail	13 ms	DPDT (2 Form C)	Non Latching	38 mA	632 Ohms	Screw Terminal	125 VDC, 250 VAC	1250 W, 2500 VA
Phoenix Contact 2834627	Gold (Au), Silver Nickel (AgNi)	8 A	Lighted Indicator, Socket Included, Varistor	120 VAC	-25 °C	60 °C	16 ms	General Purpose	DIN Rail	12 ms	DPDT (2 Form C)	Non Latching	7 mA	17.1 kOhms	Spring Terminal	250 VAC, 250 VDC
Phoenix Contact 2834685	Silver (Ag)	10 A	Diode, Lighted Indicator, Socket Included	24 VDC	-25 °C	60 °C	5 ms	General Purpose	DIN Rail	13 ms	DPDT (2 Form C)	Non Latching	38 mA	632 Ohms	Spring Terminal	250 VAC		2500 VA
Phoenix Contact 2834614	Gold (Au), Silver Nickel (AgNi)	8 A	Lighted Indicator, Varistor	24 VAC	-25 °C	60 °C	14 ms	General Purpose	DIN Rail	12 ms	DPDT (2 Form C)	Non Latching	26 mA	923.08 Ohms	Spring Terminal	250 VAC, 250 VDC
