245101-01-18.00

Active

Amphenol RF

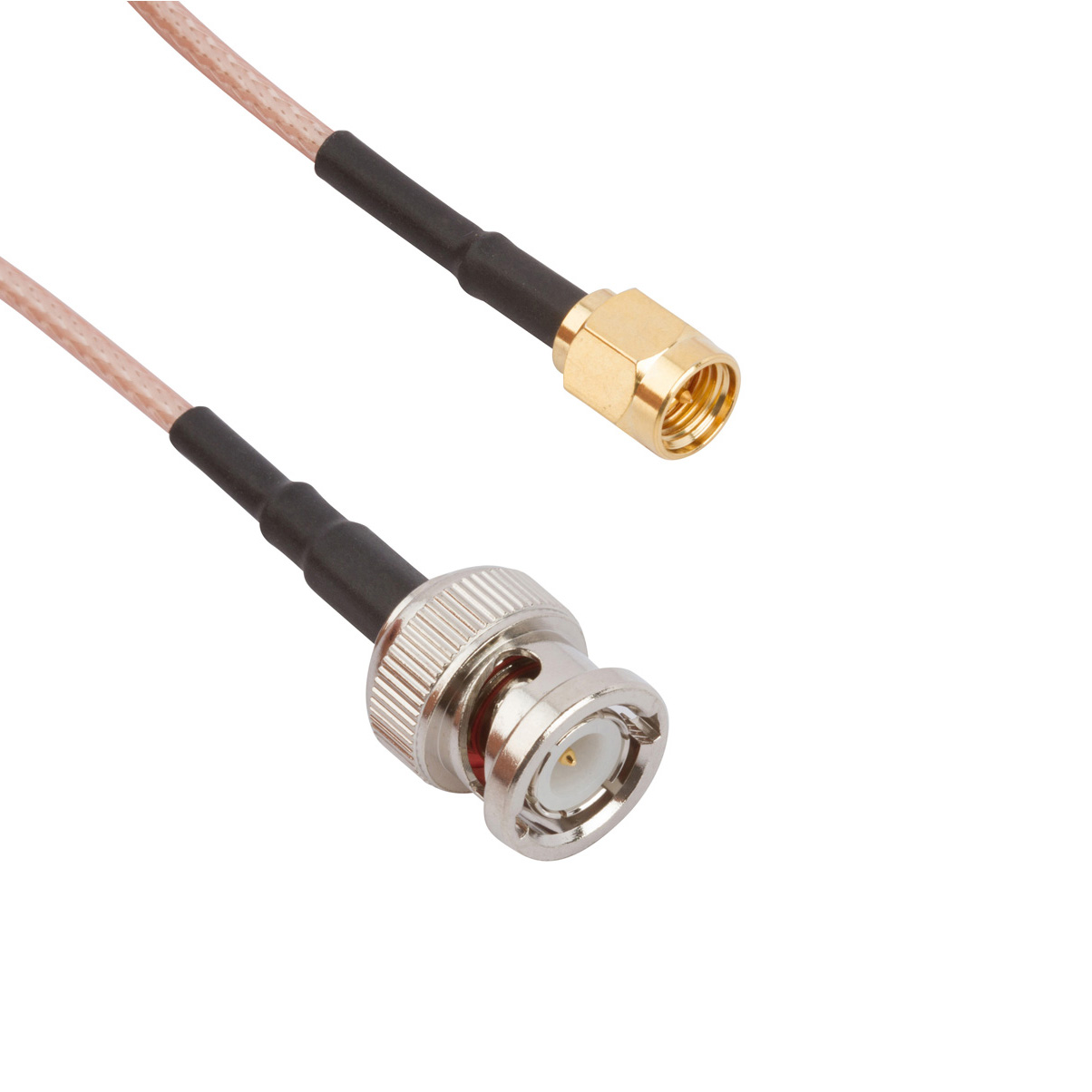

CBL ASSY BNC-SMA PLUG-PLUG 18"

Deep-Dive with AI

Search across all available documentation for this part.

245101-01-18.00

Active

Amphenol RF

CBL ASSY BNC-SMA PLUG-PLUG 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	245101-01-18.00

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Features	Shielded
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms
Style	BNC to SMA

245101 Series

Part	2nd Connector Mounting Type	2nd Contact Gender	1st Contact Gender	Cable Type	1st Connector Mounting Type	2nd Connector	Frequency - Max [Max]	Overall Impedance	Cable Impedance	Style	Color	Features	1st Connector	Length	Length	Length	Length [x]	Length [x]
Amphenol RF 245101-04-60.00	Free Hanging (In-Line)	Male	Male	RG-58	Free Hanging (In-Line)	SMA Plug	1 GHz	50 Ohms	50 Ohms	BNC to SMA	Black	Shielded	BNC Plug	5 ft	1.5 m	5 '
Amphenol RF 245101-07-36.00	Free Hanging (In-Line)	Male	Male	RG-142	Free Hanging (In-Line)	SMA Plug		50 Ohms	50 Ohms	BNC to SMA	Copper	Shielded	BNC Plug		91.44 cm	36 in
Amphenol RF 245101-01-48.00	Free Hanging (In-Line)	Male	Male	RG-316	Free Hanging (In-Line)	SMA Plug		50 Ohms	50 Ohms	BNC to SMA	Copper	Shielded	BNC Plug	4 ft	1200 mm	48 in
Amphenol RF 245101-01-18.00	Free Hanging (In-Line)	Male	Male	RG-316	Free Hanging (In-Line)	SMA Plug		50 Ohms	50 Ohms	BNC to SMA	Copper	Shielded	BNC Plug				457.2 mm	457.2 mm
Amphenol RF 245101-01-06.00	Free Hanging (In-Line)	Male	Male	RG-316	Free Hanging (In-Line)	SMA Plug		50 Ohms	50 Ohms	BNC to SMA	Copper	Shielded	BNC Plug		152.4 mm	6 in
Amphenol RF 245101-07-48.00	Free Hanging (In-Line)	Male	Male	RG-142	Free Hanging (In-Line)	SMA Plug		50 Ohms	50 Ohms	BNC to SMA	Copper	Shielded	BNC Plug	4 ft	1200 mm	48 in
Amphenol RF 245101-04-M2.00	Free Hanging (In-Line)	Male	Male	RG-58	Free Hanging (In-Line)	SMA Plug	1 GHz	50 Ohms	50 Ohms	BNC to SMA	Black	Shielded	BNC Plug	6.6 ft	2 m	78.7 in
Amphenol RF 245101-04-96.00	Free Hanging (In-Line)	Male	Male	RG-58	Free Hanging (In-Line)	SMA Plug	1 GHz	50 Ohms	50 Ohms	BNC to SMA	Black	Shielded	BNC Plug	8 '	2.4 m	96 "
Amphenol RF 245101-01-36.00	Free Hanging (In-Line)	Male	Male	RG-316	Free Hanging (In-Line)	SMA Plug		50 Ohms	50 Ohms	BNC to SMA	Copper	Shielded	BNC Plug		91.44 cm	36 in
Amphenol RF 245101-04-120	Free Hanging (In-Line)	Male	Male	RG-58	Free Hanging (In-Line)	SMA Plug	1 GHz	50 Ohms	50 Ohms	BNC to SMA	Black	Shielded	BNC Plug	10 '	3 m	10 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.02
		25	$ 17.61
		100	$ 16.48

Description

General part information

245101 Series

Cable Assembly Coaxial BNC to SMA RG-316 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
