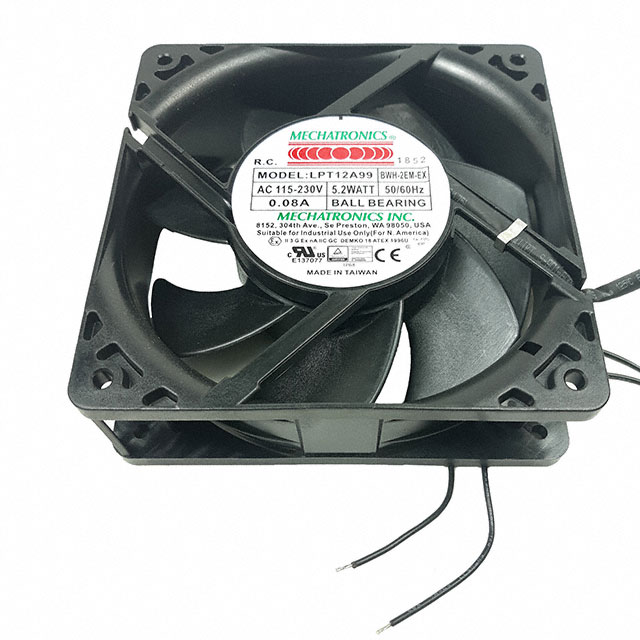

LPT12A99-BWHR-2EM-EX

Active

Mechatronics Fan Group

EC FAN AXIAL 120X120X38MM 100-24

Search across all available documentation for this part.

Active

Mechatronics Fan Group

EC FAN AXIAL 120X120X38MM 100-24

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 115 ~ 230VAC Square - 120mm L x 120mm H Ball 106.0 CFM (2.97m³/min) 2 Wire Leads

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	LPT12A99-BWHR-2EM-EX	LPT12 Series

Air Flow	106 CFM	106 CFM
Air Flow	2.97 mł/min	2.97 mł/min
Approval Agency	ATEX	ATEX
Bearing Type	Ball	Ball
Fan Type	Tubeaxial	Tubeaxial
Features	Auto Restart, Electronic Commutation (EC)	Auto Restart, Electronic Commutation (EC)
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	43 dB	43 dB
Power (Watts)	4.9 W	4.9 W
RPM	3200 RPM	3200 RPM
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [y]	120 mm	120 mm
Static Pressure	84.7 Pa	84.7 Pa
Static Pressure	0.34 in H2O	0.34 in H2O
Termination	2 Wire Leads	2 Wire Leads, 2 Terminals
Voltage - Rated [Max]	230 VAC	230 VAC
Voltage - Rated [Min]	115 VAC	115 VAC
Voltage Range [Max]	265 VAC	265 VAC
Voltage Range [Min]	90 VAC	90 VAC
Weight	0.644 lb	0.644 lb
Weight	292.11 g	292.11 g
Width [y]	38 mm	38 mm

EC FAN AXIAL 120X120X38MM 100-24

Part	Voltage - Rated [Max]	Voltage - Rated [Min]	Air Flow	Air Flow	Width [y]	Approval Agency	Material - Blade	Noise	RPM	Material - Frame	Bearing Type	Termination	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Features	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Static Pressure	Static Pressure	Power (Watts)	Ingress Protection
Mechatronics Fan Group LPT12A99-BWHR-2EM-EX	230 VAC	115 VAC	106 CFM	2.97 mł/min	38 mm	ATEX	Plastic	43 dB	3200 RPM	Plastic	Ball	2 Wire Leads	Tubeaxial	90 VAC	265 VAC	Auto Restart, Electronic Commutation (EC)	0.644 lb	292.11 g	120 mm	120 mm	84.7 Pa	0.34 in H2O	4.9 W	IP68 - Dust Tight, Waterproof
Mechatronics Fan Group LPT12A99-BTHR-2EM-EX	230 VAC	115 VAC	106 CFM	2.97 mł/min	38 mm	ATEX	Plastic	43 dB	3200 RPM	Plastic	Ball	2 Terminals	Tubeaxial	90 VAC	265 VAC	Auto Restart, Electronic Commutation (EC)	0.644 lb	292.11 g	120 mm	120 mm	84.7 Pa	0.34 in H2O	4.9 W	IP68 - Dust Tight, Waterproof
Mechatronics Fan Group LPT12A99-BWHR	230 VAC	115 VAC	106 CFM	2.97 mł/min	38 mm		Plastic	43 dB	3200 RPM	Plastic	Ball	2 Wire Leads	Tubeaxial	90 VAC	265 VAC	Auto Restart, Electronic Commutation (EC)	0.644 lb	292.11 g	120 mm	120 mm	84.7 Pa	0.34 in H2O	4.9 W
Mechatronics Fan Group LPT12A99-BTHR	230 VAC	115 VAC	106 CFM	2.97 mł/min	38 mm		Plastic	43 dB	3200 RPM	Plastic	Ball	2 Terminals	Tubeaxial	90 VAC	265 VAC	Auto Restart, Electronic Commutation (EC)	0.644 lb	292.11 g	120 mm	120 mm	84.7 Pa	0.34 in H2O	4.9 W
