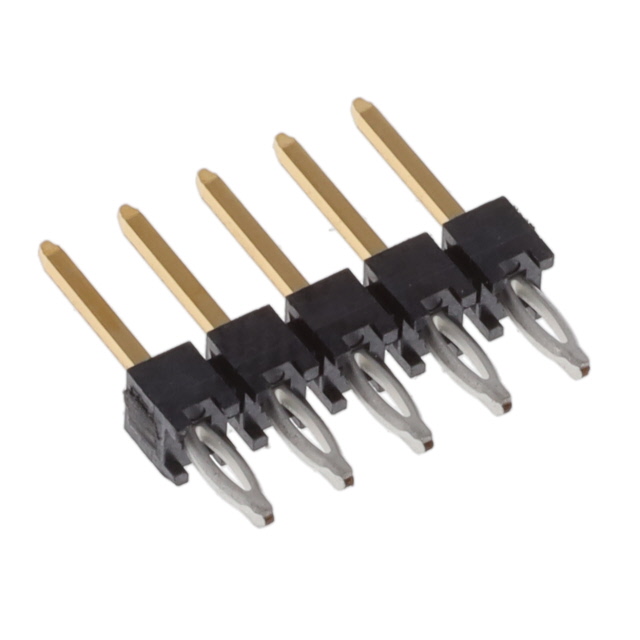

PHT-105-01-L-S
ActiveSamtec Inc.
CONN HDR .100" 5POS
Deep-Dive with AI
Search across all available documentation for this part.
PHT-105-01-L-S
ActiveSamtec Inc.
CONN HDR .100" 5POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PHT-105-01-L-S |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Mating | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in |
| Contact Length - Post | 0.122 " |
| Contact Length - Post | 3.1 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 4.8 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 0.452 " |
| Overall Contact Length | 11.48 mm |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Termination | Solder, Press-Fit |
PHT-105 Series
| Part | Insulation Color | Contact Shape | Contact Length - Mating [x] | Contact Length - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Contact Finish - Post | Shrouding | Insulation Height | Insulation Height | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Overall Contact Length | Overall Contact Length | Connector Type | Number of Positions Loaded | Contact Type | Fastening Type | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Mounting Type | Number of Rows | Contact Material | Current Rating (Amps) | Insulation Material | Pitch - Mating | Pitch - Mating | Number of Positions | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Black | Square | 0.23 in | 5.84 mm | -55 °C | 125 °C | Gold | Tin | Unshrouded | 0.1 in | 2.54 mm | Press-Fit Solder | 30 Áin | 0.76 Ám | 0.452 " | 11.48 mm | Header | All | Male Pin | Push-Pull | 0.122 " | 3.1 mm | UL94 V-0 | Through Hole | 1 | Phosphor Bronze | 4.8 A | Liquid Crystal Polymer (LCP) | 0.1 in | 2.54 mm | |||||
Samtec Inc. | Black | Square | 0.23 in | 5.84 mm | -55 °C | 125 °C | Gold | Tin | Unshrouded | 0.4 in | 10.16 mm | Press-Fit Solder | 30 Áin | 0.76 Ám | 0.752 in | 19.1 mm | Header | All | Male Pin | Push-Pull | 0.122 " | 3.1 mm | UL94 V-0 | Through Hole | 2 | Phosphor Bronze | 4.8 A | Liquid Crystal Polymer (LCP) | 0.1 in | 2.54 mm | 10 | 2.54 mm | 0.1 in | ||
Samtec Inc. | Black | Square | 0.23 in | 5.84 mm | -55 °C | 125 °C | Gold | Tin | Unshrouded | 0.1 in | 2.54 mm | Press-Fit Solder | 10 çin | 0.25 çm | 0.452 " | 11.48 mm | Header | All | Male Pin | Push-Pull | 0.122 " | 3.1 mm | UL94 V-0 | Through Hole | 1 | Phosphor Bronze | 4.8 A | Liquid Crystal Polymer (LCP) | 0.1 in | 2.54 mm | |||||
Samtec Inc. | Black | Square | 0.23 in | 5.84 mm | -55 °C | 125 °C | Gold | Tin | Unshrouded | Press-Fit Solder | 30 Áin | 0.76 Ám | 0.552 in | 14.02 mm | Header | All | Male Pin | Push-Pull | 0.122 " | 3.1 mm | UL94 V-0 | Through Hole | 1 | Phosphor Bronze | 4.8 A | Liquid Crystal Polymer (LCP) | 0.1 in | 2.54 mm | |||||||
Samtec Inc. | Black | Square | 0.23 in | 5.84 mm | -55 °C | 125 °C | Gold | Tin | Unshrouded | 0.1 in | 2.54 mm | Press-Fit Solder | 10 çin | 0.25 çm | 0.452 " | 11.48 mm | Header | All | Male Pin | Push-Pull | 0.122 " | 3.1 mm | UL94 V-0 | Through Hole | 2 | Phosphor Bronze | 4.8 A | Liquid Crystal Polymer (LCP) | 0.1 in | 2.54 mm | 10 | 2.54 mm | 0.1 in | ||
Samtec Inc. | Black | Square | 0.23 in | 5.84 mm | -55 °C | 125 °C | Gold | Tin | Unshrouded | Press-Fit Solder | 10 çin | 0.25 çm | 0.652 in | 16.56 mm | Header | All | Male Pin | Push-Pull | 0.122 " | 3.1 mm | UL94 V-0 | Through Hole | 2 | Phosphor Bronze | 4.8 A | Liquid Crystal Polymer (LCP) | 0.1 in | 2.54 mm | 10 | 2.54 mm | 0.1 in | 0.3 in | 7.62 mm | ||
Samtec Inc. | Black | Square | 0.23 in | 5.84 mm | -55 °C | 125 °C | Gold | Tin | Unshrouded | Press-Fit Solder | 10 çin | 0.25 çm | 0.552 in | 14.02 mm | Header | All | Male Pin | Push-Pull | 0.122 " | 3.1 mm | UL94 V-0 | Through Hole | 2 | Phosphor Bronze | 4.8 A | Liquid Crystal Polymer (LCP) | 0.1 in | 2.54 mm | 10 | 2.54 mm | 0.1 in | ||||
Samtec Inc. | Black | Square | 0.23 in | 5.84 mm | -55 °C | 125 °C | Gold | Tin | Unshrouded | Press-Fit Solder | 10 çin | 0.25 çm | 0.552 in | 14.02 mm | Header | All | Male Pin | Push-Pull | 0.122 " | 3.1 mm | UL94 V-0 | Through Hole | 1 | Phosphor Bronze | 4.8 A | Liquid Crystal Polymer (LCP) | 0.1 in | 2.54 mm | |||||||
Samtec Inc. | Black | Square | 0.23 in | 5.84 mm | -55 °C | 125 °C | Gold | Tin | Unshrouded | Press-Fit Solder | 10 çin | 0.25 çm | 0.652 in | 16.56 mm | Header | All | Male Pin | Push-Pull | 0.122 " | 3.1 mm | UL94 V-0 | Through Hole | 1 | Phosphor Bronze | 4.8 A | Liquid Crystal Polymer (LCP) | 0.1 in | 2.54 mm | 0.3 in | 7.62 mm | |||||
Samtec Inc. | Black | Square | 0.23 in | 5.84 mm | -55 °C | 125 °C | Gold | Tin | Unshrouded | 0.1 in | 2.54 mm | Press-Fit Solder | 30 Áin | 0.76 Ám | 0.452 " | 11.48 mm | Header | All | Male Pin | Push-Pull | 0.122 " | 3.1 mm | UL94 V-0 | Through Hole | 2 | Phosphor Bronze | 4.8 A | Liquid Crystal Polymer (LCP) | 0.1 in | 2.54 mm | 10 | 2.54 mm | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.61 | |
| 50 | $ 1.25 | |||
| 100 | $ 1.01 | |||
| 500 | $ 0.86 | |||
| 1000 | $ 0.80 | |||
Description
General part information
PHT-105 Series
Connector Header Through Hole 5 position 0.100" (2.54mm)
