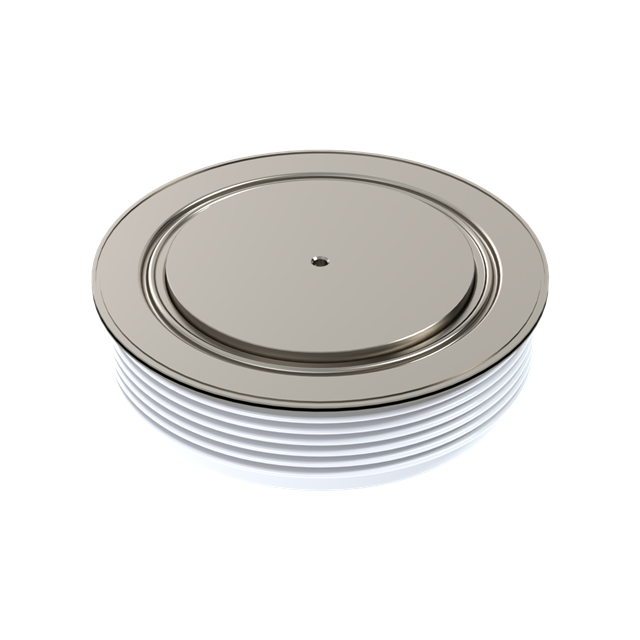

W6672TE320

Active

IXYS

DIODE STD 1750V 6672A TO200AF

Search across all available documentation for this part.

Active

IXYS

DIODE STD 1750V 6672A TO200AF

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	W6672TE320	W6672 Series

Current - Average Rectified (Io)	6672 A	6672 A
Current - Reverse Leakage @ Vr	100 mA	100 mA
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature - Junction [Max]	160 °C	160 °C
Operating Temperature - Junction [Min]	-40 °C	-40 °C
Package / Case	TO-200AF	TO-200AF
Reverse Recovery Time (trr)	52 µs	52 µs
Speed	Standard Recovery >500ns	Standard Recovery >500ns
Speed	200 mA	200 mA
Supplier Device Package	TO-200AF	TO-200AF
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1750 V	1750 - 1900 V
Voltage - Forward (Vf) (Max) @ If	1.37 V	1.37 V

DIODE STD 1900V 6672A TO200AF

Part	Package / Case	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Reverse Recovery Time (trr)	Technology	Speed	Speed	Current - Average Rectified (Io)	Supplier Device Package	Mounting Type	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Voltage - DC Reverse (Vr) (Max) [Max]
IXYS W6672TJ350	TO-200AF	100 mA	1.37 V	52 µs	Standard	Standard Recovery >500ns	200 mA	6672 A	TO-200AF	Chassis Mount	-40 °C	160 °C	1900 V
IXYS W6672TE350	TO-200AF	100 mA	1.37 V	52 µs	Standard	Standard Recovery >500ns	200 mA	6672 A	TO-200AF	Chassis Mount	-40 °C	160 °C	1900 V
IXYS W6672TE320	TO-200AF	100 mA	1.37 V	52 µs	Standard	Standard Recovery >500ns	200 mA	6672 A	TO-200AF	Chassis Mount	-40 °C	160 °C	1750 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 1750 V 6672A Chassis Mount TO-200AF
