PIC32MX470F512LT-I/TL

Obsolete

Microchip Technology

IC MCU 32BIT 512KB FLASH 124VTLA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPIC32 Microcontroller Brochure Datasheet

PIC32MX470F512LT-I/TL

Obsolete

Microchip Technology

IC MCU 32BIT 512KB FLASH 124VTLA

Deep-Dive with AI

DocumentsPIC32 Microcontroller Brochure Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PIC32MX470F512LT-I/TL	PIC32MX470 Series

Connectivity	PMP, LINbus, USB OTG, I2C, SPI, UART/USART, IrDA	PMP, LINbus, USB OTG, I2C, SPI, UART/USART, IrDA
Core Processor	MIPS32® M4K™	MIPS32® M4K™
Core Size	32-Bit Single-Core	32-Bit Single-Core
Data Converters [custom]	10 b	10 b
Data Converters [custom]	28	28
Mounting Type	Surface Mount	Surface Mount
Number of I/O	85	49 - 85
Operating Temperature [Max]	85 °C	70 - 105 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Oscillator Type	Internal	Internal

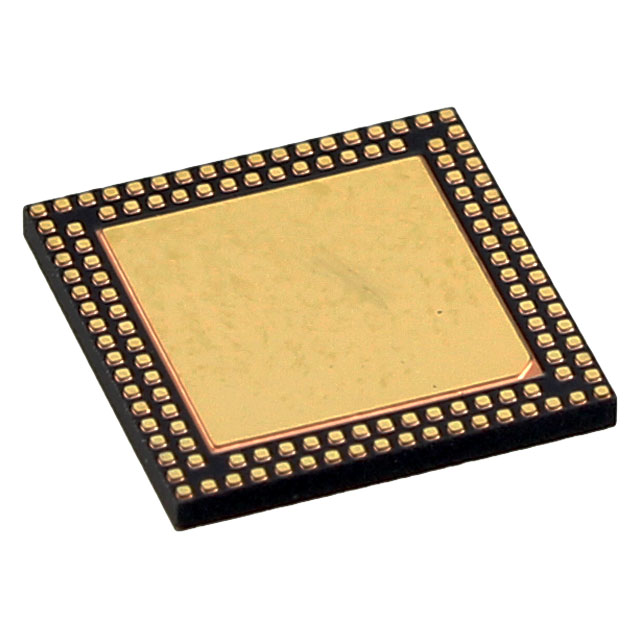

Package / Case	124-VFTLA Dual Rows, Exposed Pad	64-TQFP, 100-TQFP, 124-VFTLA Dual Rows, Exposed Pad, 64-VFQFN Exposed Pad
Peripherals	Brown-out Detect/Reset, DMA, POR, WDT, PWM	Brown-out Detect/Reset, DMA, POR, WDT, PWM
Program Memory Size	512 KB	512 KB
Program Memory Type	FLASH	FLASH
RAM Size	128 K	128 K
Speed	80 MHz	80 - 120 MHz
Supplier Device Package	124-VTLA (9x9)	64-TQFP (10x10), 100-TQFP (14x14), 124-VTLA (9x9), 64-QFN (9x9)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	2.3 V	2.3 V

PIC32MX470 Series

32 BIT MICROCONTROLLER, PIC32 FAMILY PIC32MX SERIES MICROCONTROLLERS, PIC32, 32 BIT, 80 MHZ

Part	RAM Size	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Speed	Program Memory Type	Core Processor	Connectivity	Supplier Device Package	Program Memory Size	Core Size	Oscillator Type	Peripherals	Mounting Type	Package / Case	Data Converters [custom]	Data Converters [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Number of I/O
Microchip Technology PIC32MX470F512HT-V/PT	128 K	2.3 V	3.6 V	80 MHz	FLASH	MIPS32® M4K™	I2C, IrDA, LINbus, PMP, SPI, UART/USART, USB OTG	64-TQFP (10x10)	512 KB	32-Bit Single-Core	Internal	Brown-out Detect/Reset, DMA, POR, PWM, WDT	Surface Mount	64-TQFP	10 b	28	105 °C	-40 °C	49
Microchip Technology PIC32MX470F512LT-V/PF	128 K	2.3 V	3.6 V	80 MHz	FLASH	MIPS32® M4K™	I2C, IrDA, LINbus, PMP, SPI, UART/USART, USB OTG	100-TQFP (14x14)	512 KB	32-Bit Single-Core	Internal	Brown-out Detect/Reset, DMA, POR, PWM, WDT	Surface Mount	100-TQFP	10 b	28	105 °C	-40 °C	81
Microchip Technology PIC32MX470F512L-V/PF	128 K	2.3 V	3.6 V	80 MHz	FLASH	MIPS32® M4K™	I2C, IrDA, LINbus, PMP, SPI, UART/USART, USB OTG	100-TQFP (14x14)	512 KB	32-Bit Single-Core	Internal	Brown-out Detect/Reset, DMA, POR, PWM, WDT	Surface Mount	100-TQFP	10 b	28	105 °C	-40 °C	81
Microchip Technology PIC32MX470F512LT-I/TL	128 K	2.3 V	3.6 V	80 MHz	FLASH	MIPS32® M4K™	I2C, IrDA, LINbus, PMP, SPI, UART/USART, USB OTG	124-VTLA (9x9)	512 KB	32-Bit Single-Core	Internal	Brown-out Detect/Reset, DMA, POR, PWM, WDT	Surface Mount	124-VFTLA Dual Rows, Exposed Pad	10 b	28	85 °C	-40 °C	85
Microchip Technology PIC32MX470F512LT-V/TL	128 K	2.3 V	3.6 V	80 MHz	FLASH	MIPS32® M4K™	I2C, IrDA, LINbus, PMP, SPI, UART/USART, USB OTG	124-VTLA (9x9)	512 KB	32-Bit Single-Core	Internal	Brown-out Detect/Reset, DMA, POR, PWM, WDT	Surface Mount	124-VFTLA Dual Rows, Exposed Pad	10 b	28	105 °C	-40 °C	85
Microchip Technology PIC32MX470F512HT-I/MR	128 K	2.3 V	3.6 V	80 MHz	FLASH	MIPS32® M4K™	I2C, IrDA, LINbus, PMP, SPI, UART/USART, USB OTG	64-QFN (9x9)	512 KB	32-Bit Single-Core	Internal	Brown-out Detect/Reset, DMA, POR, PWM, WDT	Surface Mount	64-VFQFN Exposed Pad	10 b	28	85 °C	-40 °C	49
Microchip Technology PIC32MX470F512LT-I/PT	128 K	2.3 V	3.6 V	80 MHz	FLASH	MIPS32® M4K™	I2C, IrDA, LINbus, PMP, SPI, UART/USART, USB OTG		512 KB	32-Bit Single-Core	Internal	Brown-out Detect/Reset, DMA, POR, PWM, WDT	Surface Mount	100-TQFP	10 b	28	85 °C	-40 °C	81
Microchip Technology PIC32MX470F512H-120/MR	128 K	2.3 V	3.6 V	120 MHz	FLASH	MIPS32® M4K™	I2C, IrDA, LINbus, PMP, SPI, UART/USART, USB OTG	64-QFN (9x9)	512 KB	32-Bit Single-Core	Internal	Brown-out Detect/Reset, DMA, POR, PWM, WDT	Surface Mount	64-VFQFN Exposed Pad	10 b	28	70 °C	0 °C	49
Microchip Technology PIC32MX470F512LT-120/PF	128 K	2.3 V	3.6 V	120 MHz	FLASH	MIPS32® M4K™	I2C, IrDA, LINbus, PMP, SPI, UART/USART, USB OTG	100-TQFP (14x14)	512 KB	32-Bit Single-Core	Internal	Brown-out Detect/Reset, DMA, POR, PWM, WDT	Surface Mount	100-TQFP	10 b	28	70 °C	0 °C	81
Microchip Technology PIC32MX470F512H-V/PT	128 K	2.3 V	3.6 V	80 MHz	FLASH	MIPS32® M4K™	I2C, IrDA, LINbus, PMP, SPI, UART/USART, USB OTG	64-TQFP (10x10)	512 KB	32-Bit Single-Core	Internal	Brown-out Detect/Reset, DMA, POR, PWM, WDT	Surface Mount	64-TQFP	10 b	28	105 °C	-40 °C	49

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PIC32MX470 Series

PIC32MX3/4 MCUs offer the perfect combination of 32-bit performance, memory, and integrated peripherals at a low cost. These devices run up to 120 MHz/150 DMIPS. The PIC32MX3/4 family boasts a rich set of integrated peripherals including two SPI/I2S interfaces for audio codecs, an 8-bit PMP for graphics or external memory, and on-board 10-bit 1 Msps ADC.

Documents

Technical documentation and resources

PIC32 Microcontroller Brochure

Datasheet
