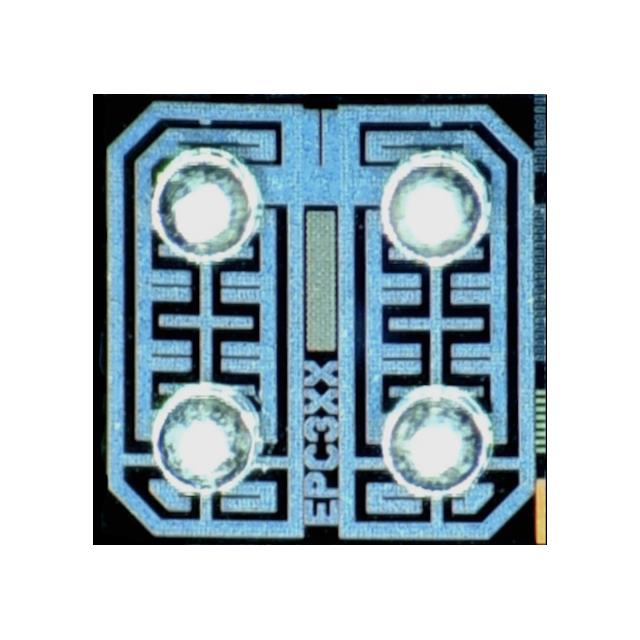

EPC300-CSP4-001

Obsolete

ESPROS Photonics AG

SENSOR PHOTODIODE 850NM 4XFBGA

Search across all available documentation for this part.

Obsolete

ESPROS Photonics AG

SENSOR PHOTODIODE 850NM 4XFBGA

Technical Specifications

Parameters and characteristics for this part

SENSOR PHOTODIODE 850NM 4XFBGA

Part	Mounting Type	Response Time	Wavelength	Package / Case	Active Area	Responsivity @ nm	Spectral Range [Max]	Spectral Range [Min]	Color - Enhanced	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Dark (Typ)	Viewing Angle
ESPROS Photonics AG EPC300-CSP4-001	Surface Mount	300 ns	850 nm	4-XFBGA, CSPBGA	0.86 mm²	0.6 A/W	1030 nm	400 nm	Infrared (NIR), Red	85 °C	-40 °C	20 V	80 pA	150 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Photodiode 850nm 300ns 150° 4-XFBGA, CSPBGA
