1376391-1

Active

TE Connectivity AMP Connectors

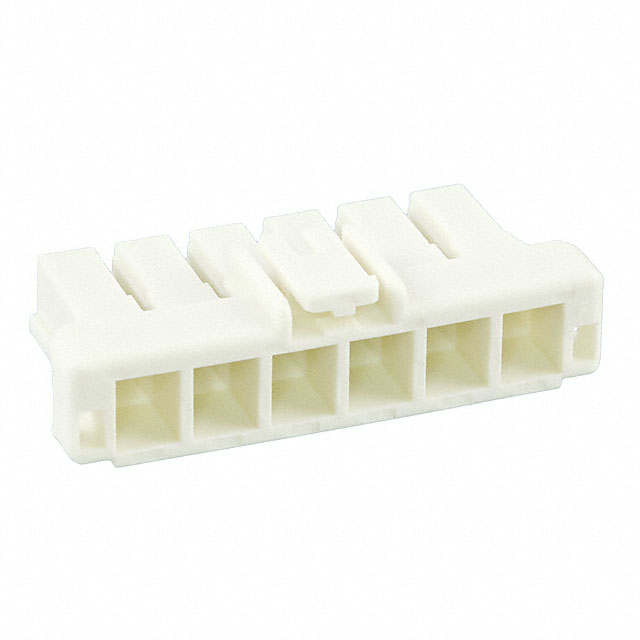

CONN PLUG HSG 6POS 5.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 6POS 5.00MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1376391-1	1376391 Series

Color	Natural	Red, Natural
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	6	6
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in

CONN PLUG HSG 6POS 5.00MM

Part	Note	Number of Positions	Fastening Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Pitch [x]	Pitch [x]	Color	Contact Termination	Mounting Type	Insulation Material	Connector Type
TE Connectivity AMP Connectors 1-1376391-2	Contacts Not Included	6	Latch Lock	Female Socket	-30 ░C	105 ░C	1	5 mm	0.197 in	Red	Crimp	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6, Glass Filled	Plug
TE Connectivity AMP Connectors 1376391-1	Contacts Not Included	6	Latch Lock	Female Socket	-30 ░C	105 ░C	1	5 mm	0.197 in	Natural	Crimp	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6, Glass Filled	Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Rectangular Connectors - Housings Plug Natural 0.197" (5.00mm)
