Q-3604W0008001M
ActiveAmphenol Custom Cable

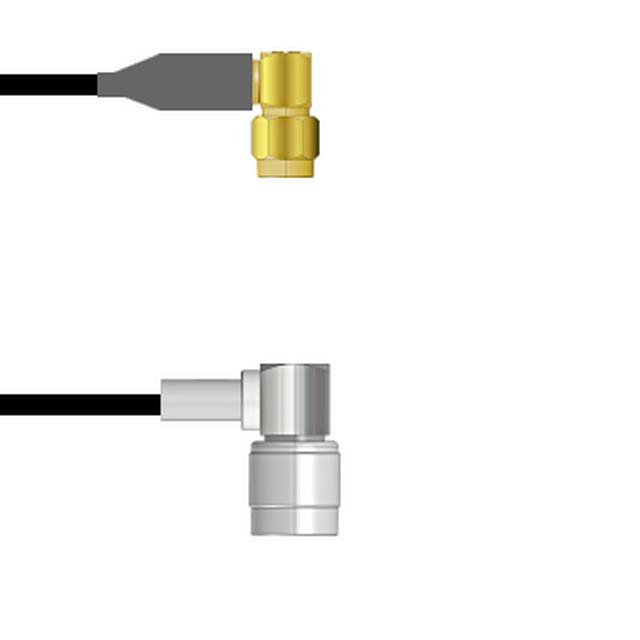

CBL ASSY SMA-TNC PLUG-PLUG 3.3'
Deep-Dive with AI
Search across all available documentation for this part.
Q-3604W0008001M
ActiveAmphenol Custom Cable
CBL ASSY SMA-TNC PLUG-PLUG 3.3'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-3604W0008001M |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-58 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 1 GHz |
| Length | 1 m |
| Length | 3.3 ft |
| Length | 39.4 in |
| Overall Impedance | 50 Ohms |
| Style | SMA to TNC |
Q-3604W0 Series
| Part | Frequency - Max [Max] | Connector Impedance | Color | Length [x] | Length [x] | 2nd Contact Gender | Overall Impedance | Cable Type | 1st Connector | 1st Contact Gender | Features | 1st Connector Mounting Type | Style | 2nd Connector | 2nd Connector Mounting Type | Cable Impedance | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | 1 GHz | 50 Ohms | Black | 9.843 " | 250 mm | Male | 50 Ohms | RG-58 | Right Angle SMA Plug | Male | Shielded | Free Hanging (In-Line) | SMA to TNC | TNC Plug Right Angle | Free Hanging (In-Line) | 50 Ohms | |||
Amphenol Custom Cable | 1 GHz | 50 Ohms | Black | Male | 50 Ohms | RG-58 | Right Angle SMA Plug | Male | Shielded | Free Hanging (In-Line) | SMA to TNC | TNC Plug Right Angle | Free Hanging (In-Line) | 50 Ohms | 5 ft | 1.5 m | 5 ' | ||
Amphenol Custom Cable | 1 GHz | 50 Ohms | Black | Male | 50 Ohms | RG-58 | Right Angle SMA Plug | Male | Shielded | Free Hanging (In-Line) | SMA to TNC | TNC Plug Right Angle | Free Hanging (In-Line) | 50 Ohms | 750 mm | 29.53 " | |||
Amphenol Custom Cable | 1 GHz | 50 Ohms | Black | Male | 50 Ohms | RG-58 | Right Angle SMA Plug | Male | Shielded | Free Hanging (In-Line) | SMA to TNC | TNC Plug Right Angle | Free Hanging (In-Line) | 50 Ohms | 4 ft | 1200 mm | 48 in | ||
Amphenol Custom Cable | 1 GHz | 50 Ohms | Black | Male | 50 Ohms | RG-58 | Right Angle SMA Plug | Male | Shielded | Free Hanging (In-Line) | SMA to TNC | TNC Plug Right Angle | Free Hanging (In-Line) | 50 Ohms | 3.3 ft | 1 m | 39.4 in | ||
Amphenol Custom Cable | 1 GHz | 50 Ohms | Black | Male | 50 Ohms | RG-58 | Right Angle SMA Plug | Male | Shielded | Free Hanging (In-Line) | SMA to TNC | TNC Plug Right Angle | Free Hanging (In-Line) | 50 Ohms | 91.44 cm | 36 in | |||
Amphenol Custom Cable | 1 GHz | 50 Ohms | Black | Male | 50 Ohms | RG-58 | Right Angle SMA Plug | Male | Shielded | Free Hanging (In-Line) | SMA to TNC | TNC Plug Right Angle | Free Hanging (In-Line) | 50 Ohms | 9.8 ' | 3 m | 118.1 in | ||
Amphenol Custom Cable | 1 GHz | 50 Ohms | Black | Male | 50 Ohms | RG-58 | Right Angle SMA Plug | Male | Shielded | Free Hanging (In-Line) | SMA to TNC | TNC Plug Right Angle | Free Hanging (In-Line) | 50 Ohms | 304.8 mm | 12 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 84.79 | |
| 25 | $ 83.14 | |||
| 50 | $ 81.48 | |||
| 100 | $ 79.82 | |||
| 250 | $ 78.16 | |||
Description
General part information
Q-3604W0 Series
Cable Assembly Coaxial SMA to TNC RG-58 39.4" (1.0m) 3.3'
Documents
Technical documentation and resources
No documents available
