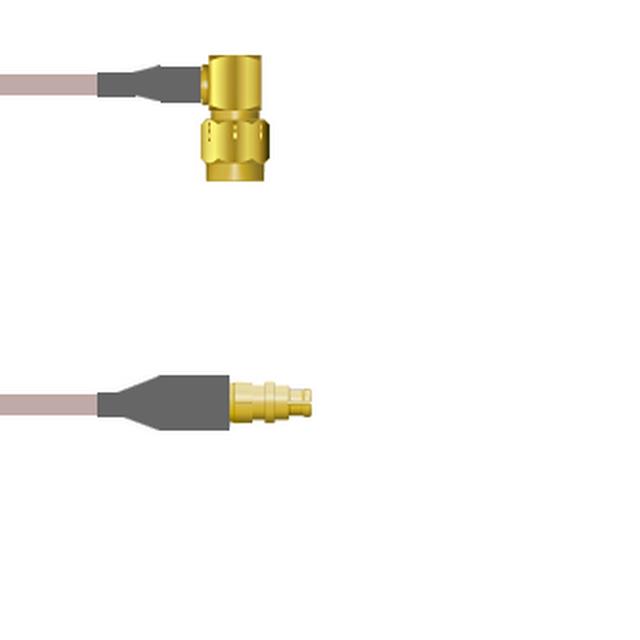

Q-330470001060I
ActiveAmphenol Custom Cable
COAX CBL SMA TO SMPM 5'
Deep-Dive with AI
Search across all available documentation for this part.
Q-330470001060I
ActiveAmphenol Custom Cable
COAX CBL SMA TO SMPM 5'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-330470001060I |
|---|---|
| 1st Connector | SMPM Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-178 |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 5 ft |
| Length | 1.5 m |
| Length | 5 ' |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMPM |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 133.43 | |
| 25 | $ 130.83 | |||
| 50 | $ 128.22 | |||
| 100 | $ 125.61 | |||
| 250 | $ 123.00 | |||
Description
General part information
Q-330470 Series
Cable Assembly Coaxial SMA to SMPM RG-178 60.0" (1.5m) 5.0'
Documents
Technical documentation and resources
No documents available
