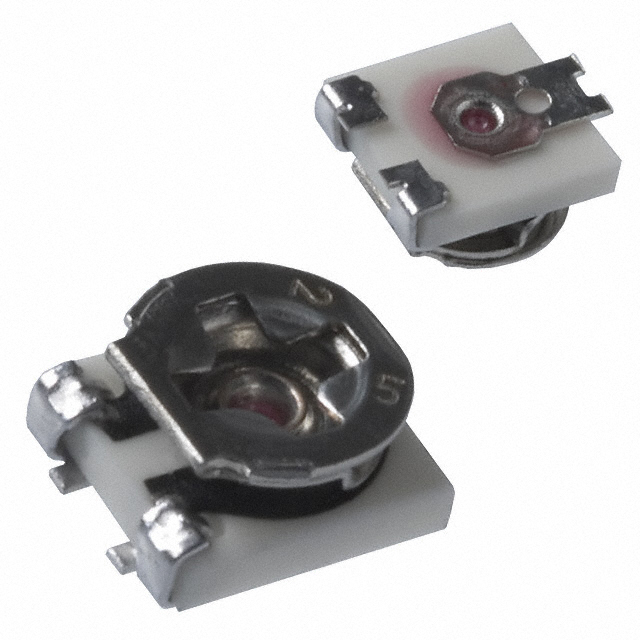

3303W-3-201E

Obsolete

TRIMMER 200 OHM 0.15W J LEAD TOP

Obsolete

TRIMMER 200 OHM 0.15W J LEAD TOP

Description

General part information

200 Ohms 0.15W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment

Parameters and characteristics for this part

Specification	3303W-3-201E

Adjustment Type	Top Adjustment
Mounting Type	Surface Mount
Number of Turns	1 turns
Power (Watts)	150 mW
Resistance	200 Ohm
Resistive Material	Cermet
Size / Dimension Length	0.148 in
Size / Dimension Shape	Rectangular
Size / Dimension Width	0.118 in
Temperature Coefficient	250 ppm/°C
Temperature Coefficient (Highest)	250 ppm/°C
Temperature Coefficient (Lowest)	-250 ppm/°C
Termination Style	J Lead
Tolerance	25 %

Part	Resistance	Termination Style	Temperature Coefficient	Temperature Coefficient (Highest)	Temperature Coefficient (Lowest)	Size / Dimension Length	Size / Dimension Width	Size / Dimension Shape	Mounting Type	Resistive Material	Adjustment Type	Tolerance	Power (Watts)	Number of Turns
Bourns Inc. 3303W-3-102E	1 kOhm	J Lead	250 ppm/°C	250 ppm/°C	-250 ppm/°C	0.148 in	0.118 in	Rectangular	Surface Mount	Cermet	Top Adjustment	25 %	150 mW	1 turns
Bourns Inc. 3303W-3-504E	500 kOhm	J Lead	250 ppm/°C	250 ppm/°C	-250 ppm/°C	0.148 in	0.118 in	Rectangular	Surface Mount	Cermet	Top Adjustment	25 %	150 mW	1 turns
Bourns Inc. 3303W-3-201E	200 Ohm	J Lead	250 ppm/°C	250 ppm/°C	-250 ppm/°C	0.148 in	0.118 in	Rectangular	Surface Mount	Cermet	Top Adjustment	25 %	150 mW	1 turns
Bourns Inc. 3303W-3-104E	100 kOhm	J Lead	250 ppm/°C	250 ppm/°C	-250 ppm/°C	0.148 in	0.118 in	Rectangular	Surface Mount	Cermet	Top Adjustment	25 %	150 mW	1 turns
