XPEBTT-01-R250-00U80

Active

Cree LED

XPE GEN 2 TORCH SPEC LIGHT EMITTING DIODE

Search across all available documentation for this part.

Active

Cree LED

XPE GEN 2 TORCH SPEC LIGHT EMITTING DIODE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

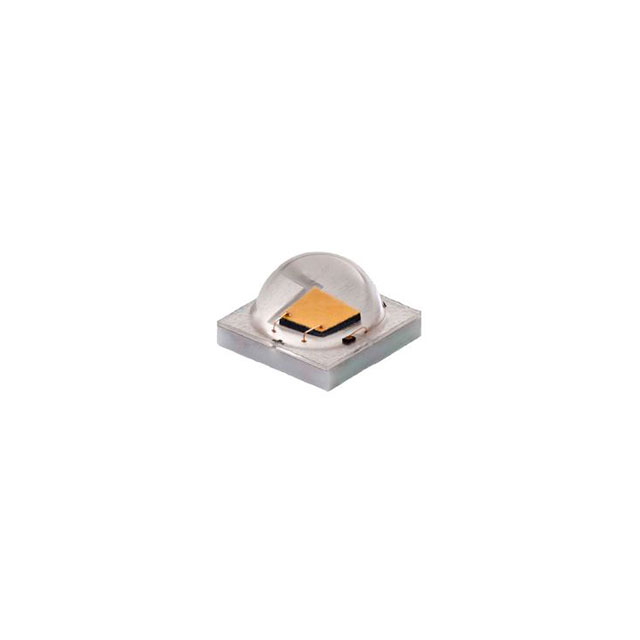

LED Lighting Xlamp® XP-E Torch White, Cool 6000K ~ 10500K 3.25V 1.05A 125° 1414 (3535 Metric)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	XPEBTT-01-R250-00U80	XPEBTT Series

CCT (K) [Max]	10500 K	10500 K
CCT (K) [Min]	6000 K	6000 K
Color	Cool, White	Cool, White
Current - Max [Max]	1.5 A	1.5 A
Current - Test	1.05 A	1.05 A
Flux @ 25°C, Current - Test	310 lm	290 - 350 lm
Flux @ 25°C, Current - Test [Max]	320 lm	300 - 320 lm
Flux @ 25°C, Current - Test [Min]	300 lm	280 - 300 lm
Height - Seated (Max) [Max] [z]	2.39 mm	2.39 mm
Height - Seated (Max) [Max] [z]	0.094 "	0.094 "
Lumens/Watt @ Current - Test	84 lm/W	79 - 95 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension [x]	3.45 mm	3.45 mm
Size / Dimension [x]	0.136 in	0.136 in
Size / Dimension [y]	0.136 in	0.136 in
Size / Dimension [y]	3.45 mm	3.45 mm
Thermal Resistance of Package [diameter]	10 °C/W	10 °C/W
Viewing Angle	125 °	125 °
Voltage - Forward (Vf) (Typ)	3.25 V	3.25 V

LED XLAMP XP-E TORCH WHT SMD

Part	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	CCT (K) [Max]	CCT (K) [Min]	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Flux @ 25°C, Current - Test	Thermal Resistance of Package [diameter]	Current - Test	Viewing Angle	Mounting Type	Color	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]
Cree LED XPEBTT-01-0000-00W80	1.5 A	3.45 mm	0.136 in	0.136 in	3.45 mm	10500 K	6000 K	3.25 V	3535 Metric	1414	350 lm	10 °C/W	1.05 A	125 °	Surface Mount	Cool, White	95 lm/W	2.39 mm	0.094 "
Cree LED XPEBTT-01-R250-00W80	1.5 A	3.45 mm	0.136 in	0.136 in	3.45 mm	10500 K	6000 K	3.25 V	3535 Metric	1414	350 lm	10 °C/W	1.05 A	125 °	Surface Mount	Cool, White	95 lm/W	2.39 mm	0.094 "
Cree LED XPEBTT-01-0000-00V80	1.5 A	3.45 mm	0.136 in	0.136 in	3.45 mm	10500 K	6000 K	3.25 V	3535 Metric	1414	330 lm	10 °C/W	1.05 A	125 °	Surface Mount	Cool, White	90 lm/W	2.39 mm	0.094 "
Cree LED XPEBTT-01-R250-00U80	1.5 A	3.45 mm	0.136 in	0.136 in	3.45 mm	10500 K	6000 K	3.25 V	3535 Metric	1414	310 lm	10 °C/W	1.05 A	125 °	Surface Mount	Cool, White	84 lm/W	2.39 mm	0.094 "	300 lm	320 lm
Cree LED XPEBTT-01-R250-00T80	1.5 A	3.45 mm	0.136 in	0.136 in	3.45 mm	10500 K	6000 K	3.25 V	3535 Metric	1414	290 lm	10 °C/W	1.05 A	125 °	Surface Mount	Cool, White	79 lm/W	2.39 mm	0.094 "	280 lm	300 lm
