FPG.1B.307.CLAD62

Active

LEMO

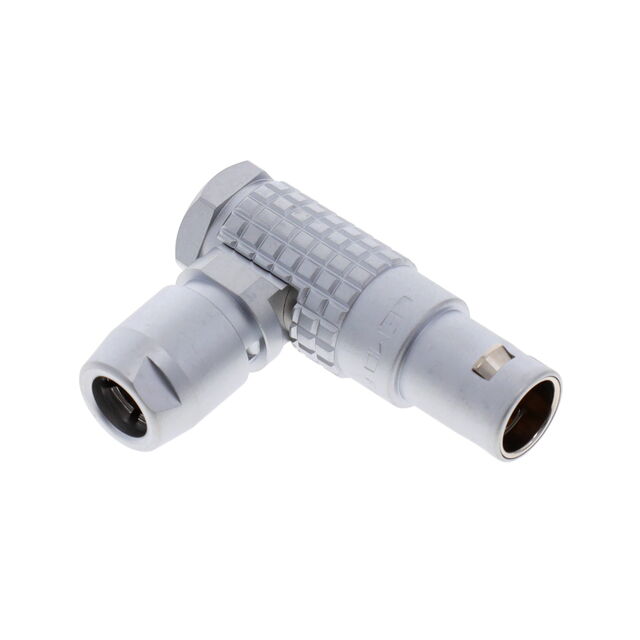

CONN PLUG MALE 7P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FPG.1B.307.CLAD62

Active

LEMO

CONN PLUG MALE 7P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 75.48
		10	$ 69.26
		25	$ 66.60
		50	$ 64.38
		100	$ 60.83

Description

General part information

FPG.1B Series

7 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FPG.1B.307.CLAD62	FPG.1B Series

	-	-
Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	0.244 - 0.283 in
Cable Opening	-	6.2 - 7.2 mm
Cable Opening	-	0.299 in
Cable Opening	-	7.6 mm
Cable Opening	-	0.283 in
Cable Opening	-	7.2 mm
Cable Opening [diameter]	0.205 in, 0.165 in	0.165 - 0.205 in
Cable Opening [diameter]	4.2 mm	4.2 mm
Cable Opening [diameter]	5.2 mm	5.2 mm
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	7 A	1.5 - 15 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Positions	7	2 - 14
Number of Positions	-	16
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	307	302 - 316
Shielding	Shielded	Shielded
Termination	-	Crimp

FPG.1B Series

CONN PLUG MALE 2P GOLD SLDR CUP

Part	Shell Size - Insert	Orientation	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Color	Number of Positions	Backshell Material, Plating	Primary Material	Shell Finish	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Fastening Type	Mounting Type	Features	Insert Material	Current Rating (Amps)	Connector Type	Shielding	Contact Finish - Mating	Contact Material	Termination	Cable Opening [custom]	Cable Opening [custom]	Number of Positions
LEMO FPG.1B.302.CLAD42	302	G	IP50	1 µm	39.4 µin	UL94 V-0	Silver	2	Brass, Chrome	Metal	Chrome	0.165 in, 0.205 in	4.2 mm	5.2 mm	-55 °C	250 °C	Brass	Push-Pull	Free Hanging (In-Line), Right Angle	Backshell	Polyetheretherketone (PEEK)	15 A	Male Pins, Plug	Shielded	Gold	Brass
LEMO FPG.1B.307.CLAD52Z	307	G	IP50	1 µm	39.4 µin	UL94 V-0	Silver	7	Brass, Chrome	Metal	Chrome	0.165 in, 0.205 in	4.2 mm	5.2 mm	-55 °C	250 °C	Brass	Push-Pull	Free Hanging (In-Line), Right Angle	Backshell	Polyetheretherketone (PEEK)	7 A	Male Pins, Plug	Shielded	Gold	Brass
LEMO FPG.1B.302.CLAD52	302	G	IP50	1 µm	39.4 µin	UL94 V-0	Silver	2	Brass, Chrome	Metal	Chrome	0.165 in, 0.205 in	4.2 mm	5.2 mm	-55 °C	250 °C	Brass	Push-Pull	Free Hanging (In-Line), Right Angle	Backshell	Polyetheretherketone (PEEK)	15 A	Male Pins, Plug	Shielded	Gold	Brass
LEMO FPG.1B.307.CLAD76Z
LEMO FPG.1B.305.CYCD72Z	305	G	IP50	1 µm	39.4 µin	UL94 V-0	Silver		Brass, Chrome	Metal	Chrome	0.165 in, 0.205 in	4.2 mm	5.2 mm	-55 °C	250 °C	Brass	Push-Pull	Free Hanging (In-Line), Right Angle	Backshell	Polyetheretherketone (PEEK)	9 A	Male Pins, Plug	Shielded	Gold	Brass	Crimp
LEMO FPG.1B.307.CLAD62	307	G	IP50	1 µm	39.4 µin	UL94 V-0	Silver	7	Brass, Chrome	Metal	Chrome	0.165 in, 0.205 in	4.2 mm	5.2 mm	-55 °C	250 °C	Brass	Push-Pull	Free Hanging (In-Line), Right Angle	Backshell	Polyetheretherketone (PEEK)	7 A	Male Pins, Plug	Shielded	Gold	Brass
LEMO FPG.1B.304.CYCD72	304	G	IP50	1 µm	39.4 µin	UL94 V-0	Silver	4	Brass, Chrome	Metal	Chrome				-55 °C	250 °C	Brass	Push-Pull	Free Hanging (In-Line), Right Angle	Backshell	Polyetheretherketone (PEEK)	10 A	Male Pins, Plug	Shielded	Gold	Brass	Crimp	0.244 in, 0.283 in	6.2 mm, 7.2 mm
LEMO FPG.1B.306.CYCD42Z	306	G	IP50	1 µm	39.4 µin	UL94 V-0	Silver	6	Brass, Chrome	Metal	Chrome	0.165 in, 0.205 in	4.2 mm	5.2 mm	-55 °C	250 °C	Brass	Push-Pull	Free Hanging (In-Line), Right Angle	Backshell	Polyetheretherketone (PEEK)	7 A	Male Pins, Plug	Shielded	Gold	Brass	Crimp
LEMO FPG.1B.316.CYCD42Z	316	G	IP50	1 µm	39.4 µin	UL94 V-0	Silver		Brass, Chrome	Metal	Chrome	0.165 in, 0.205 in	4.2 mm	5.2 mm	-55 °C	250 °C	Brass	Push-Pull	Free Hanging (In-Line), Right Angle	Backshell	Polyetheretherketone (PEEK)	1.5 A	Male Pins, Plug	Shielded	Gold	Brass	Crimp			16
LEMO FPG.1B.307.CLAD62Z	307	G	IP50	1 µm	39.4 µin	UL94 V-0	Silver	7	Brass, Chrome	Metal	Chrome	0.165 in, 0.205 in	4.2 mm	5.2 mm	-55 °C	250 °C	Brass	Push-Pull	Free Hanging (In-Line), Right Angle	Backshell	Polyetheretherketone (PEEK)	7 A	Male Pins, Plug	Shielded	Gold	Brass
