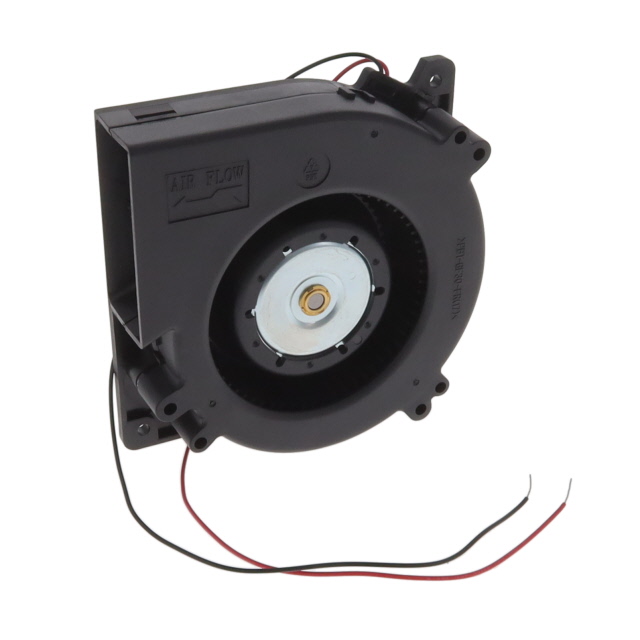

BFB1248VH-A

Active

Delta Electronics

FAN BLOWER 120X32MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BFB1248VH-A

Active

Delta Electronics

FAN BLOWER 120X32MM 48VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BFB1248VH-A

Air Flow	42.5 CFM
Air Flow	1.19 mł/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	370 mA
Fan Type	Blower
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	57 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	17.76 W
RPM	3100 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	120 mm
Size / Dimension [z]	120 mm
Static Pressure	460.3 Pa
Static Pressure	1.848 in H2O
Termination	2 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	56 VDC
Voltage Range [Min]	24 VDC
Width [y]	32 mm

BFB1248 Series

Part	Current Rating (Amps)	Noise	Static Pressure	Static Pressure	Bearing Type	Weight	Weight	Termination	Material - Blade	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Lifetime @ Temp.	Material - Frame	RPM	Fan Type	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Width [y]	Voltage Range [Max]	Voltage Range [Min]	Approval Agency	Air Flow	Air Flow	Power (Watts)	Voltage - Rated [custom]	Features	Air Flow
Delta Electronics BFB1248HH-TP21	0.25 A	54 dB	245.1 Pa	0.984 in H2O	Ball	0.508 lb	230.42 g	4 Wire Leads	Plastic	-10 °C	-10 °C	60 °C	60 °C	70000 Hrs	Plastic	2800 RPM	Blower	Square/Rounded	120 mm	120 mm	32 mm	60 V	36 VDC	CE CSA UL VDE	35.3 CFM	0.988 mł/min	12 W	48 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Delta Electronics BFB1248HH-F00	0.22 A	54 dB	245.1 Pa	0.984 in H2O	Ball	0.508 lb	230.42 g	3 Wire Leads	Plastic	-10 °C	-10 °C	60 °C	60 °C	50000 Hrs	Plastic	2800 RPM	Blower	Square/Rounded	120 mm	120 mm	32 mm	56 VDC	28 V	CE CSA UL VDE	35.3 CFM	0.988 mł/min	10.56 W	48 VDC	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics BFB1248VH-A	370 mA	57 dB	460.3 Pa	1.848 in H2O	Ball			2 Wire Leads	Plastic	-10 °C	-10 °C	60 °C	60 °C	50000 Hrs	Plastic	3100 RPM	Blower	Square/Rounded	120 mm	120 mm	32 mm	56 VDC	24 VDC	CE CSA UL VDE		1.19 mł/min	17.76 W	48 VDC		42.5 CFM
Delta Electronics BFB1248H-F00	150 mA	51 dB(A)	186.3 Pa	0.748 in H2O	Ball	0.508 lb	230.42 g	3 Wire Leads	Plastic	-10 °C	-10 °C	60 °C	60 °C	50000 Hrs	Plastic	2500 RPM	Blower	Square/Rounded	120 mm	120 mm	32 mm	56 VDC	28 V	CE CSA UL VDE	31.4 CFM	0.879 m³/min	7.2 W	48 VDC	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics BFB1248GH-AF00	800 mA	65 dB	1019.8 Pa	4.094 in H2O	Ball			3 Wire Leads	Plastic	-10 °C	-10 °C	60 °C	60 °C	50000 Hrs	Plastic	4400 RPM	Blower	Square/Rounded	120 mm	120 mm	32 mm	53 VDC	24 VDC	CE CSA UL VDE	60.4 CFM	1.69 m³/min	38.4 W	48 VDC	Locked Rotor Protection Speed Sensor (Tach)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 43.39
		10	$ 40.36
		42	$ 36.32
		84	$ 33.30
		126	$ 31.28
		252	$ 27.24

Description

General part information

BFB1248 Series

Fan Blower 48VDC Square/Rounded - 120mm L x 120mm H Ball 42.5 CFM (1.19m³/min) 2 Wire Leads
