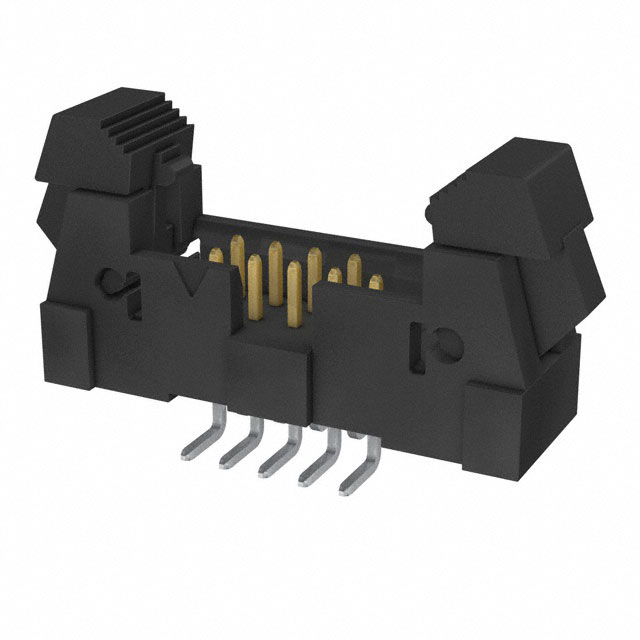

EHT-105-01-S-D-SM-10-K

Active

Samtec Inc.

CONN HEADER SMD 10POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

EHT-105-01-S-D-SM-10-K

Active

Samtec Inc.

CONN HEADER SMD 10POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHT-105-01-S-D-SM-10-K

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks
Features	Pick and Place, Keying Slot
Insulation Color	Black
Insulation Height	0.37 in
Insulation Height	9.4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EHT-105 Series

Part	Insulation Material	Insulation Height [z]	Insulation Height [z]	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Contact Finish - Mating	Material Flammability Rating	Current Rating (Amps)	Contact Shape	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Color	Features	Number of Positions	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Contact Material	Termination	Mounting Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Number of Positions Loaded
Samtec Inc. EHT-105-01-F-D-RA	Liquid Crystal Polymer (LCP)	0.3 in	7.62 mm	0.079 in	2 mm	3.05 mm	0.12 in	Latch Lock/Eject Hooks	3 µin	0.076 µm	Board to Cable/Wire	Gold	UL94 V-0	3 A	Square	Tin	0.12 in	3.05 mm	Shrouded - 4 Wall	Header	-55 °C	125 °C	All	Black	Keying Slot	10	Male Pin	0.079 in	2 mm	2	Phosphor Bronze	Solder	Through Hole Right Angle
Samtec Inc. EHT-105-01-L-D	Liquid Crystal Polymer (LCP)			0.079 in	2 mm	3.05 mm	0.12 in	Latch Lock/Eject Hooks	15 µin	0.38 µm	Board to Cable/Wire	Gold	UL94 V-0	3 A	Square	Tin			Shrouded - 4 Wall	Header	-55 °C	125 °C	All	Black	Keying Slot	10	Male Pin	0.079 in	2 mm	2	Phosphor Bronze	Solder	Through Hole	0.37 in	9.4 mm	0.114 in	2.9 mm
Samtec Inc. EHT-105-01-S-D-SM-LC-02	Liquid Crystal Polymer (LCP)			0.079 in	2 mm	3.05 mm	0.12 in	Latch Lock/Eject Hooks	30 Áin	0.76 Ám	Board to Cable/Wire	Gold	UL94 V-0	3 A	Square	Tin			Shrouded - 4 Wall	Header	-55 °C	125 °C		Black	Board Lock Keying Slot	10	Male Pin	0.079 in	2 mm	2	Phosphor Bronze	Solder	Surface Mount	0.37 in	9.4 mm			9
Samtec Inc. EHT-105-01-L-D-SM-K-TR	Liquid Crystal Polymer (LCP)			0.079 in	2 mm	3.05 mm	0.12 in	Latch Lock/Eject Hooks	15 µin	0.38 µm	Board to Cable/Wire	Gold	UL94 V-0	3 A	Square	Tin			Shrouded - 4 Wall	Header	-55 °C	125 °C	All	Black	Keying Slot Pick and Place	10	Male Pin	0.079 in	2 mm	2	Phosphor Bronze	Solder	Surface Mount	0.37 in	9.4 mm
Samtec Inc. EHT-105-01-L-D-SM	Liquid Crystal Polymer (LCP)			0.079 in	2 mm	3.05 mm	0.12 in	Latch Lock/Eject Hooks	15 µin	0.38 µm	Board to Cable/Wire	Gold	UL94 V-0	3 A	Square	Tin			Shrouded - 4 Wall	Header	-55 °C	125 °C	All	Black	Keying Slot	10	Male Pin	0.079 in	2 mm	2	Phosphor Bronze	Solder	Surface Mount	0.37 in	9.4 mm
Samtec Inc. EHT-105-01-S-D-SM-10-K	Liquid Crystal Polymer (LCP)			0.079 in	2 mm	3.05 mm	0.12 in	Latch Lock/Eject Hooks	30 Áin	0.76 Ám	Board to Cable/Wire	Gold	UL94 V-0	3 A	Square	Tin			Shrouded - 4 Wall	Header	-55 °C	125 °C		Black	Keying Slot Pick and Place	10	Male Pin	0.079 in	2 mm	2	Phosphor Bronze	Solder	Surface Mount	0.37 in	9.4 mm			9
Samtec Inc. EHT-105-01-S-D-SM-LC	Liquid Crystal Polymer (LCP)			0.079 in	2 mm	3.05 mm	0.12 in	Latch Lock/Eject Hooks	30 Áin	0.76 Ám	Board to Cable/Wire	Gold	UL94 V-0	3 A	Square	Tin			Shrouded - 4 Wall	Header	-55 °C	125 °C	All	Black	Board Lock Keying Slot	10	Male Pin	0.079 in	2 mm	2	Phosphor Bronze	Solder	Surface Mount	0.37 in	9.4 mm
Samtec Inc. EHT-105-01-F-D-SM-LC	Liquid Crystal Polymer (LCP)			0.079 in	2 mm	3.05 mm	0.12 in	Latch Lock/Eject Hooks	3 µin	0.076 µm	Board to Cable/Wire	Gold	UL94 V-0	3 A	Square	Tin			Shrouded - 4 Wall	Header	-55 °C	125 °C	All	Black	Board Lock Keying Slot	10	Male Pin	0.079 in	2 mm	2	Phosphor Bronze	Solder	Surface Mount	0.37 in	9.4 mm
Samtec Inc. EHT-105-01-L-D-SM-LC-P-TR	Liquid Crystal Polymer (LCP)			0.079 in	2 mm	3.05 mm	0.12 in	Latch Lock/Eject Hooks	15 µin	0.38 µm	Board to Cable/Wire	Gold	UL94 V-0	3 A	Square	Tin			Shrouded - 4 Wall	Header	-55 °C	125 °C	All	Black	Board Lock Keying Slot Pick and Place	10	Male Pin	0.079 in	2 mm	2	Phosphor Bronze	Solder	Surface Mount	0.37 in	9.4 mm
Samtec Inc. EHT-105-01-S-D-RA	Liquid Crystal Polymer (LCP)	0.3 in	7.62 mm	0.079 in	2 mm	3.05 mm	0.12 in	Latch Lock/Eject Hooks	30 Áin	0.76 Ám	Board to Cable/Wire	Gold	UL94 V-0	3 A	Square	Tin	0.12 in	3.05 mm	Shrouded - 4 Wall	Header	-55 °C	125 °C	All	Black	Keying Slot	10	Male Pin	0.079 in	2 mm	2	Phosphor Bronze	Solder	Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	23	$ 12.34

Description

General part information

EHT-105 Series

Connector Header Surface Mount 10 position 0.079" (2.00mm)

Documents

Technical documentation and resources

No documents available
