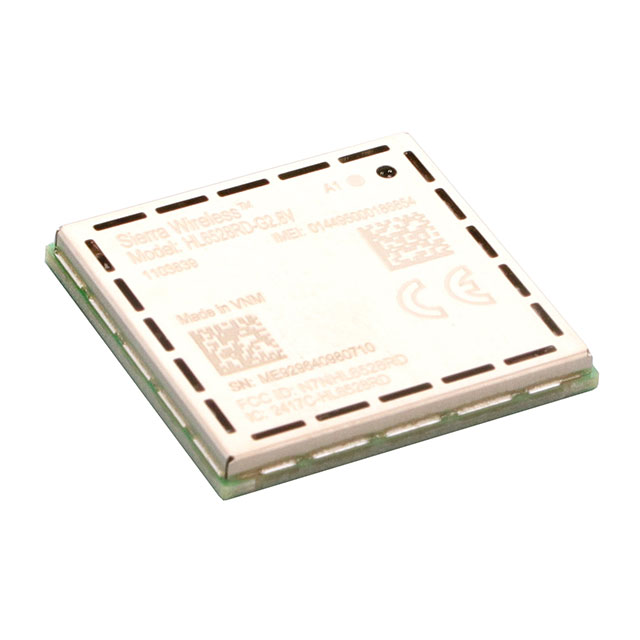

HL6528RD-G2.8V_1103839

Obsolete

Sierra Wireless

RF TXRX MODULE CELL SMD

Search across all available documentation for this part.

Obsolete

Sierra Wireless

RF TXRX MODULE CELL SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

RF TXRX MOD CELL NAV SMD

Part	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Antenna Type	Frequency	Power - Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Protocol	Mounting Type	Sensitivity	RF Family/Standard
Sierra Wireless HL6528RD-2.8V_1103838	I2C, UART, USB	85 °C	-40 °C	Antenna Not Included	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	2 W	2.7 V	2.95 V	Module	GLONASS, GNSS, GPRS, GPS, GSM	Surface Mount	-165 dBm	Cellular, Navigation
Sierra Wireless HL6528RD_1103477	I2C, UART, USB				850 MHz, 900 MHz, 1800 MHz, 1900 MHz		1.7 V	1.9 V	146-LGA Module	GLONASS, GNSS, GPRS, GPS, GSM	Surface Mount	-165 dBm	Cellular
Sierra Wireless HL6528RD-G_1103837	I2C, UART, USB				850 MHz, 900 MHz, 1800 MHz, 1900 MHz		1.7 V	1.9 V	146-LGA Module	GLONASS, GNSS, GPRS, GPS, GSM	Surface Mount	-165 dBm	Cellular
Sierra Wireless HL6528RD-G2.8V_1103839	I2C, UART, USB				850 MHz, 900 MHz, 1800 MHz, 1900 MHz		2.7 V	2.95 V	146-LGA Module	GLONASS, GNSS, GPRS, GPS, GSM	Surface Mount	-165 dBm	Cellular
Sierra Wireless HL6528RD-2.8V_1104352	I2C, UART, USB	85 °C	-40 °C	Antenna Not Included	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	2 W	2.7 V	2.95 V	Module	GLONASS, GNSS, GPRS, GPS, GSM	Surface Mount	-165 dBm	Cellular, Navigation
Sierra Wireless HL6528RD-2.8V_1104320	I2C, UART, USB	85 °C	-40 °C	Antenna Not Included	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	2 W	2.7 V	2.95 V	Module	GLONASS, GNSS, GPRS, GPS, GSM	Surface Mount	-165 dBm	Cellular, Navigation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cellular GLONASS, GPRS, GPS, GSM, GNSS Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Surface Mount
